2008 LR3 HDC,special programs faults-rear differential motor

Discussion in 'LR3' started by calidreaming, Jul 23, 2012.

  1. calidreaming

    calidreaming New Member

    Posts:
    3
    Likes Received:
    0
    Joined:
    Jul 23, 2012
    2008 LR3 51k miles.

    over the past two years I have had a few times where ther xmas display popped up on the dash ,but a simple restart on the car would erase it. never said anything to Land Rover about it. Replaced the battery 1 month ago. Last week the lights stay on all the time. car drives fine -but you can hear the rear diff motor running a few times (I presume not catching)on start and shut off of car.

    I checked the fuses- seems ok- I replaced the blue brake thingy under the sterring wheel dash too- nothing changed.

    Took it to a independent rover repair shop here in san diego and he says it needs a new rear diff motor(and its expensive- a few k)

    What would you recommend I do. buy a extended warranty maybe?
    Car drives fine but is in the lower position- i dont go off roading so dont really care about it ,but the lights are annoying.

    thanks

  2. tlt

    tlt Full Access Member

    Posts:
    726
    Likes Received:
    0
    Joined:
    Mar 31, 2011
    Well, it would be pretty dishonest to buy a warranty when something is broken.

    You can get the diff motor for a reasonable price from Justin & Lucky8. He also has reman differentials, and rebuild kits. A few K would be a whole diff at LR.

    There is a shop in the LA area that has rebuilt a couple. Check that wiring to ensure the cable is connected well, and no wires are broken. You might also try to run it through the calibration routine and see if it snaps back to working order.

    I reputable shop should be able to install the motor in less than and hour + cost of the motor.

    Last edited: Jul 23, 2012
  3. calidreaming

    calidreaming New Member

    Posts:
    3
    Likes Received:
    0
    Joined:
    Jul 23, 2012
    wow - here is what happenned

    went to a local land rover and they told me 3k plus install to fix the rear diff water.

    I told them where to stick it.

    Next day- I start the car- all the faults are gone and everything is working!
    it has worked fine for a week with no issues.

    Based on al this what do you think the problem was/is?

  4. duckdive

    duckdive Full Access Member

    Posts:
    720
    Likes Received:
    0
    Joined:
    Sep 14, 2006
    Cali, which independant shop did you take it to here in San Diego?

  5. calidreaming

    calidreaming New Member

    Posts:
    3
    Likes Received:
    0
    Joined:
    Jul 23, 2012
    pm sent

    pm sent and also the shop was trying to say that my brand new battery was in need of replacing because it was junk.

  6. Houm_WA

    Houm_WA Full Access Member

    Posts:
    3,140
    Likes Received:
    2
    Joined:
    Jan 6, 2006
    What exactly does the rear diff motor sound like? Are you sure you aren't hearing your EAS Compressor? That would make more sense...plus the rear diff motor would have nothing to do with being stuck at the lower suspension setting.

  7. newthings

    newthings Active Member

    Posts:
    41
    Likes Received:
    0
    Joined:
    Nov 14, 2011
    I give --What is a rear diff motor?
    Thanks, Roy

  8. bbyer

    bbyer Full Access Member

    Posts:
    510
    Likes Received:
    1
    Joined:
    Aug 15, 2008
    black round thing at the top

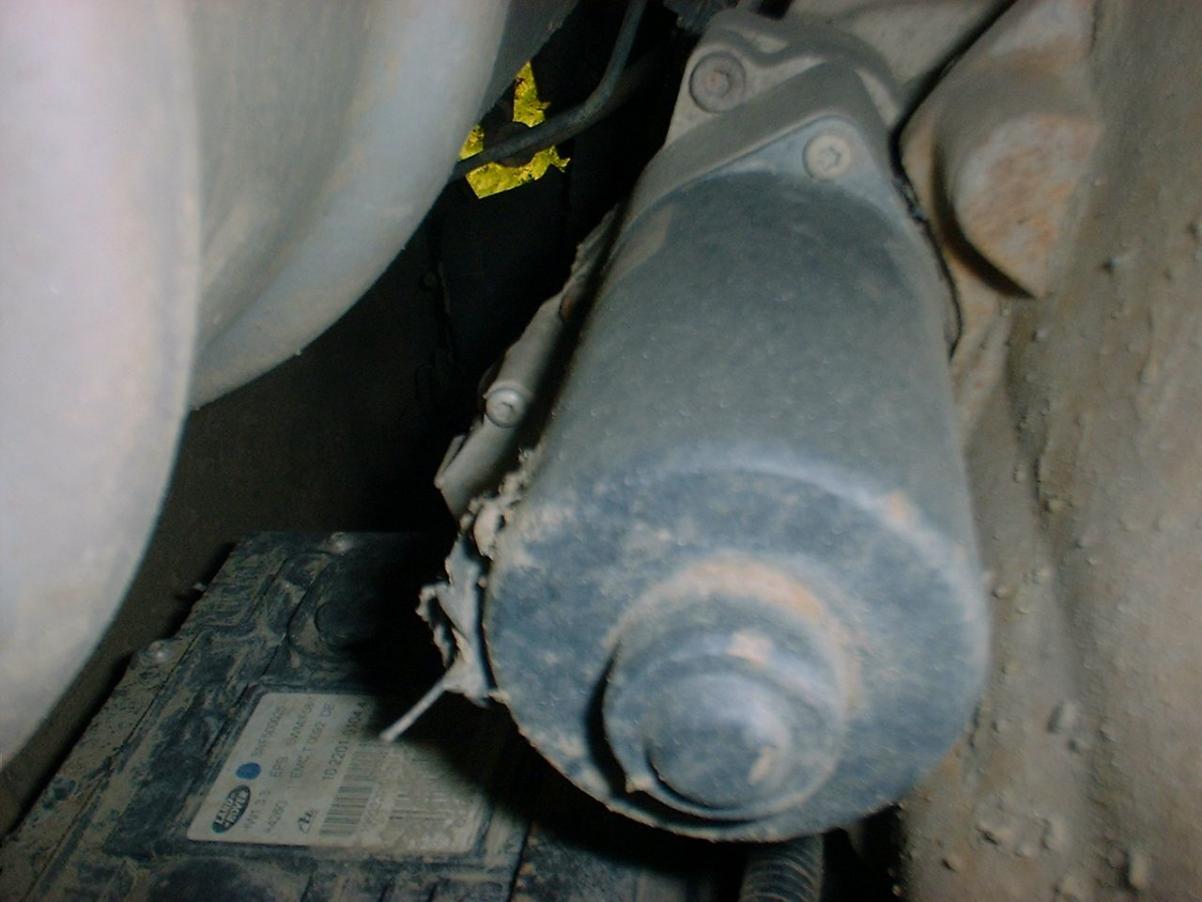

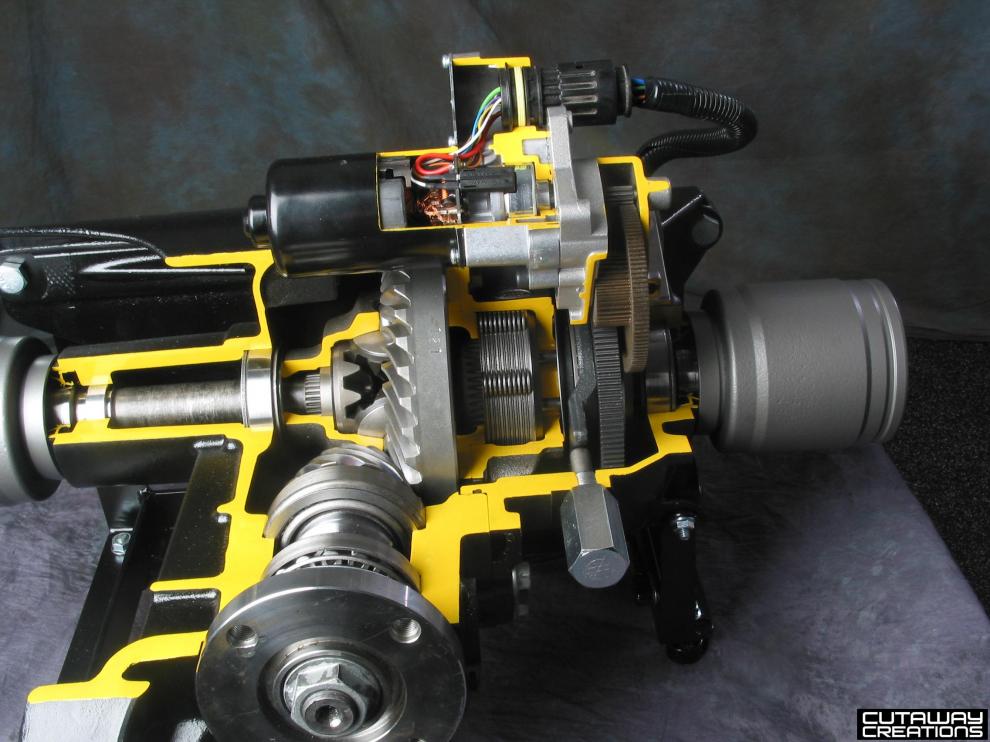

    A few select 3's have an electronic sort of locking extra special rear differential package. The stepper motor that everyone is referring to is the sort of round black motor like bit at the top where the computer cables feed into. Yes, computer cables - a stepper motor is not what you see on your average electric locker. Land Rover is as usual, away head of the curve.

  9. Houm_WA

    Houm_WA Full Access Member

    Posts:
    3,140
    Likes Received:
    2
    Joined:
    Jan 6, 2006
    I have one of those (lockers)...and I NEVER "hear" it.

  10. Trynian

    Trynian Full Access Member

    Posts:
    836
    Likes Received:
    0
    Joined:
    Aug 11, 2008
    It goes through a power on self test right when the power is turned on. Also one when you turn the engin off.

    Probably wouldn't hear it unless you are listening for it and not starting the car right away.
