Land Rover LR4 Facelift - 2012 to 2014+

Discussion in 'LR4' started by Tomsquad419, May 4, 2018.

  1. Tomsquad419

    Tomsquad419 Member

    Age:
    24
    Posts:
    15
    Likes Received:
    5
    Joined:
    Jan 27, 2018
    Location:
    Atlanta, GA
    Hi - I have a 2012 Land Rover LR4 LUX. I noticed many doing the 2014+ facelift, especially in the U.K., so decided I would give it a go. Im at a stalling point and need some help as Ive been carless for weeks now and sunk tons of money without a resolution. Hopefully someone on here knows wiring pretty well or has some insight.

    What Works:
    1. I have swapped the taillights for the new spec
    2. I have swapped the front headlights with adaptive and Xenon- plug and play they work. You do have to go into your Gap IID tool to enable the Canadian DRL light.
    3. Swapped the Grill over to fit the new headlights

    So I am stuck at swapping over the new 14 style bumper cover and have gotten stuck.

    I watched several videos of others who has swapped the bumpers with no issues..however..I realized that it appears that I am the first to swap over the bumper and retain the front cameras.

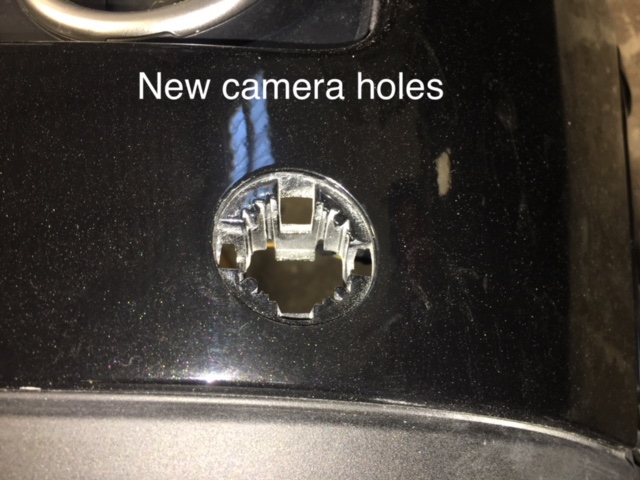

    - The old wiring harness goes right into the old bumper. Parking sensors and fog lights match right up, however, the bumper wiring harness isnt long enough to reach the new brackets for the cameras and the brackets for the cameras are totally different. The 14 cameras are a square opposed to the 2012 rectangles.

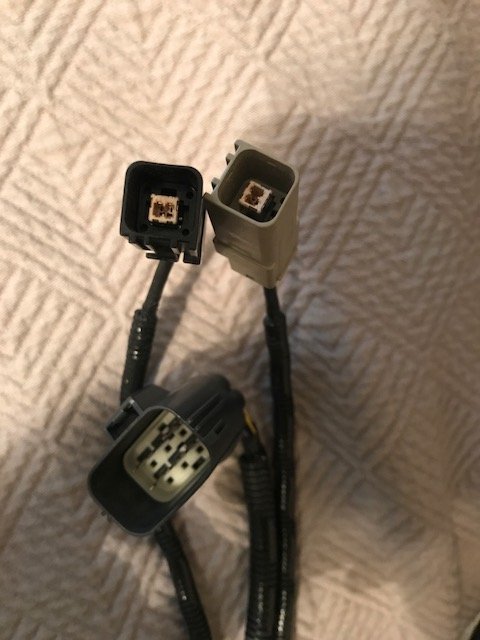

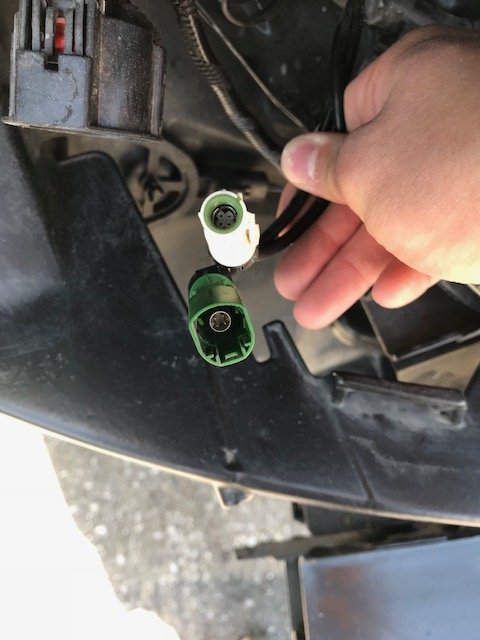

    - From here I order a new 14+ front bumper wiring harness and 2 new cameras. After getting everything the wiring harness match up with the exception on the socket for the cameras (being that the 14s are square and take a different input) and socket that the harness plugs into on on the actual vehicle.

    - I have taken the vehicle and tried to have them modify a wiring harness but it doesn't seem to work. Any ideas on how to get the 14+ camera to work with the old harness. Or you could take then end piece that plugs into the body and install it onto the new harness. If I can get the cameras to work the it will have been a success. I am starting to run out of steam.

    Any ideas. I will attach pictures and wiring diagrams below.

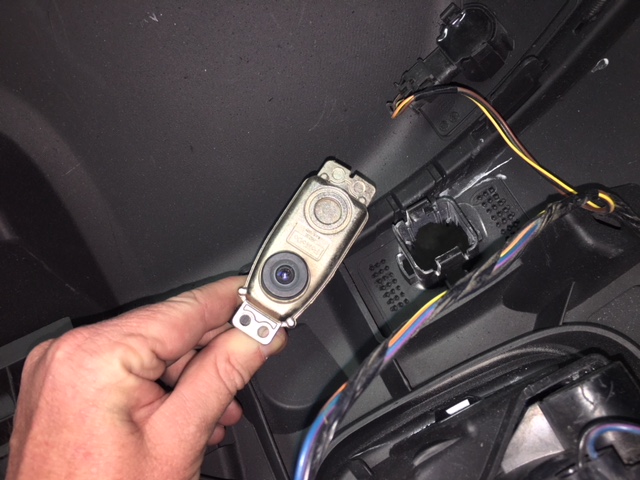

    IMG_1066 (1).JPG


    Attached Files:

    gsxr likes this.
  2. Tomsquad419

    Tomsquad419 Member

    Age:
    24
    Posts:
    15
    Likes Received:
    5
    Joined:
    Jan 27, 2018
    Location:
    Atlanta, GA

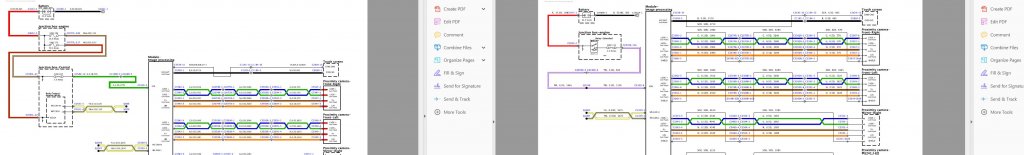

    See attached pictures and diagrams. I also have a clearer version of the wiring diagrams in a pdf.

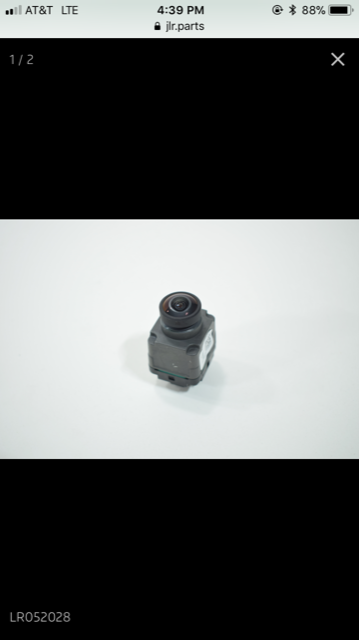

    IMG_1024 (1).PNG

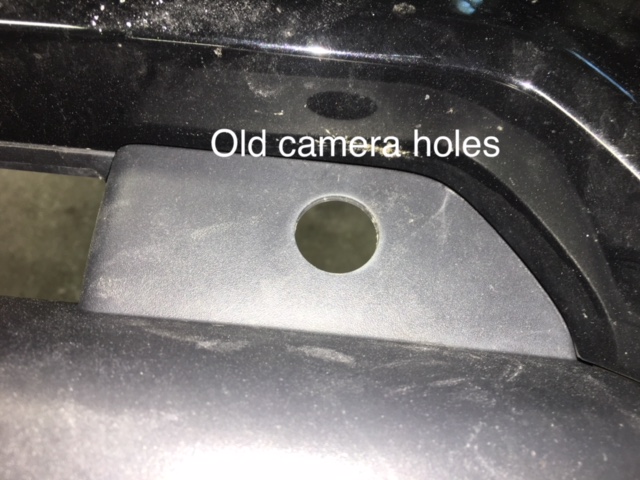

    IMG_1064 (1).JPG

    IMG_1065 (1).JPG

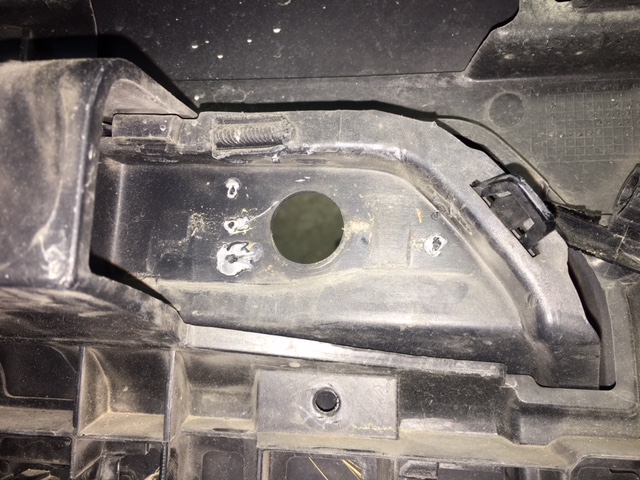

    IMG_1067 (1).JPG

    gsxr likes this.
  3. Tomsquad419

    Tomsquad419 Member

    Age:
    24
    Posts:
    15
    Likes Received:
    5
    Joined:
    Jan 27, 2018
    Location:
    Atlanta, GA

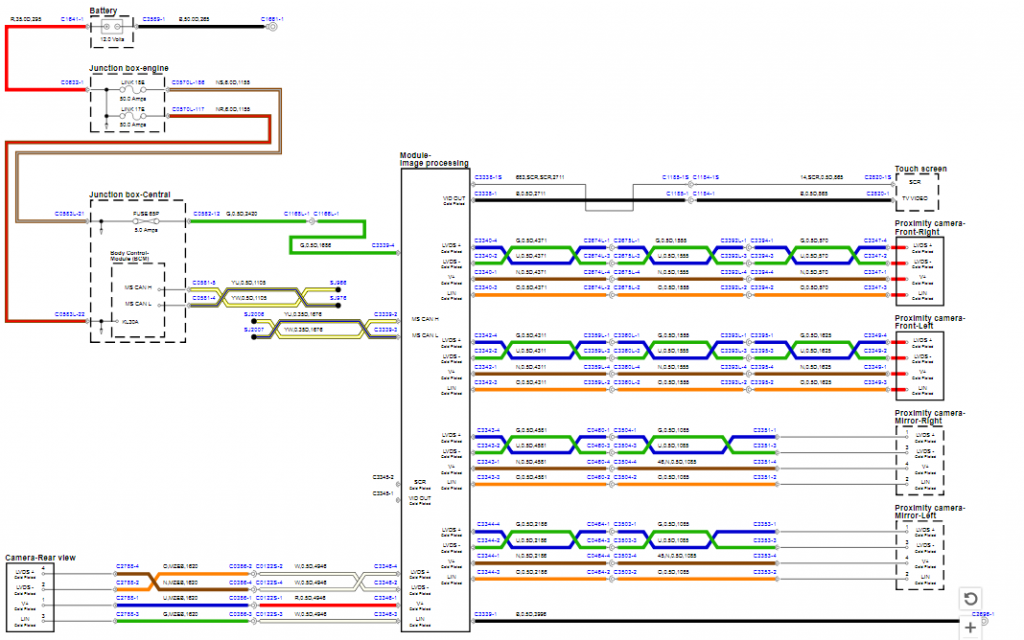

    Wiring Diagrams.

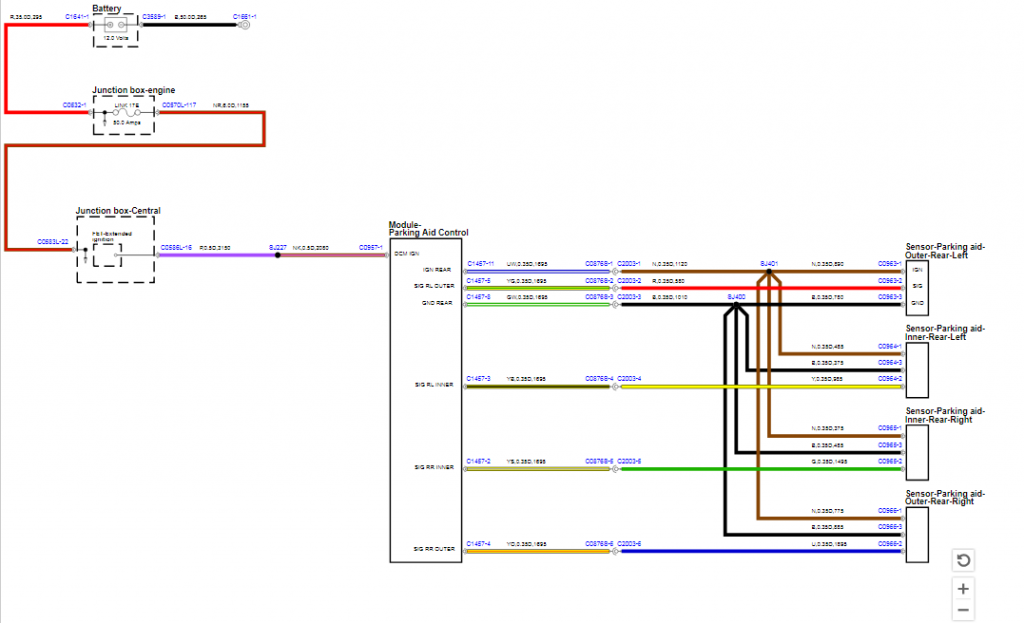

    C1 (1).PNG

    C3 (1).PNG

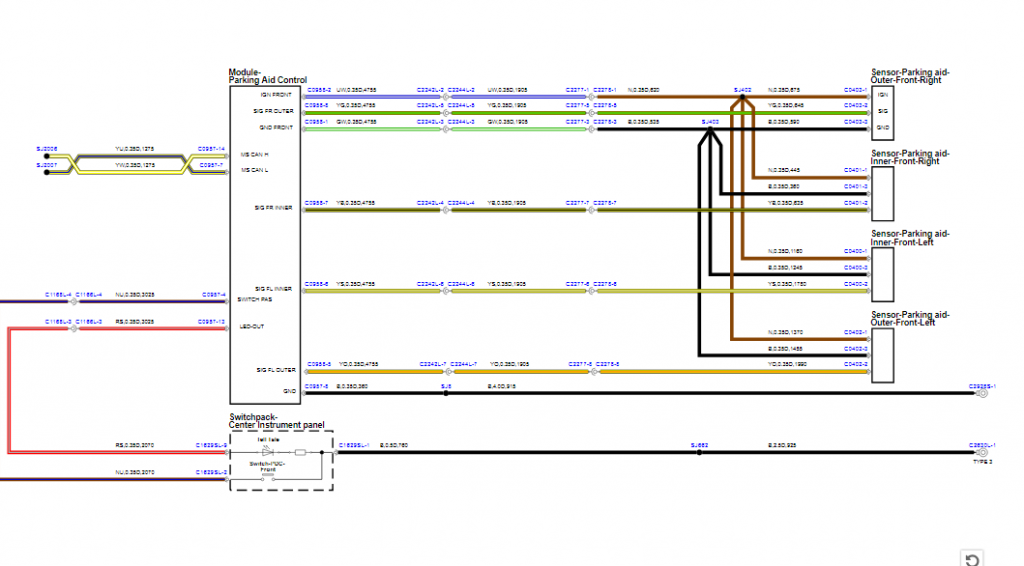

    C2 (1).PNG

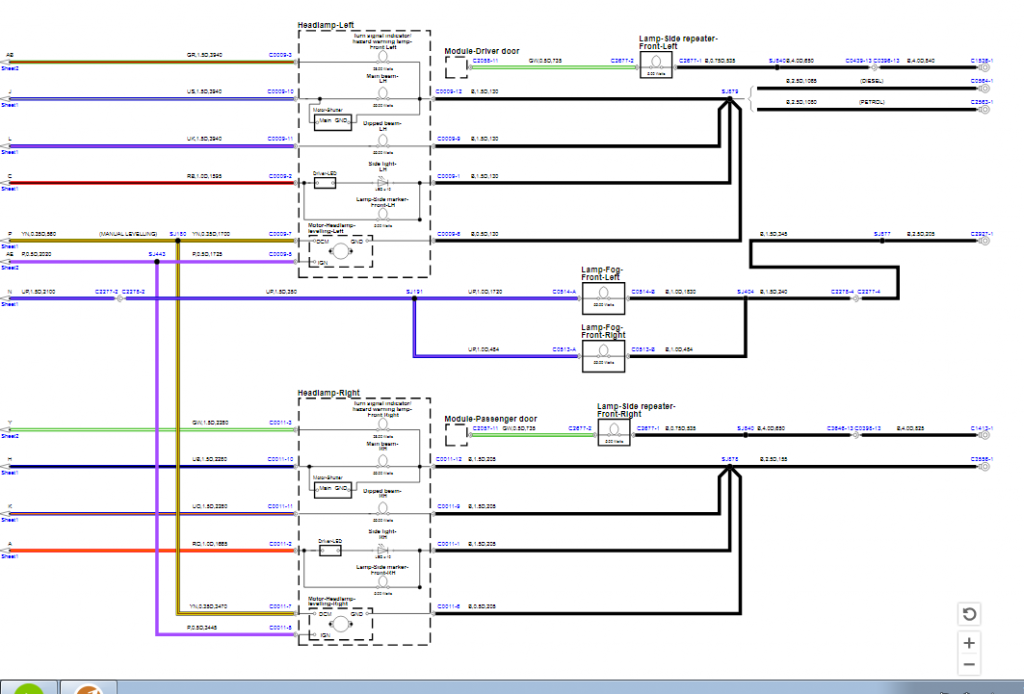

    C4 (2).PNG


    gsxr likes this.
  4. Tomsquad419

    Tomsquad419 Member

    Age:
    24
    Posts:
    15
    Likes Received:
    5
    Joined:
    Jan 27, 2018
    Location:
    Atlanta, GA
    PDF version


    Attached Files:

  5. Tomsquad419

    Tomsquad419 Member

    Age:
    24
    Posts:
    15
    Likes Received:
    5
    Joined:
    Jan 27, 2018
    Location:
    Atlanta, GA
    Anyone? Bueller... Bueller.

  6. cperez

    cperez Full Access Member

    Posts:
    680
    Likes Received:
    109
    Joined:
    Mar 3, 2014
    Location:
    Bethesda, Maryland, USA
    Did you order the facelift kits from powerfuluk.com? Either way, since they sell these items they might be a good resource to get on the phone or maybe even on a Facetime chat.

  7. Tomsquad419

    Tomsquad419 Member

    Age:
    24
    Posts:
    15
    Likes Received:
    5
    Joined:
    Jan 27, 2018
    Location:
    Atlanta, GA
    Their bumper does not have the cutouts for the camera. I’ve emailed with them several times and they were not very helpful. They just stated we haven’t tried that so we don’t know.
