2016 LR4 Camera system not working at all!!

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

JimmyY

Member
Joined
Oct 24, 2021
Posts
19
Reaction score
6
Location
Canada

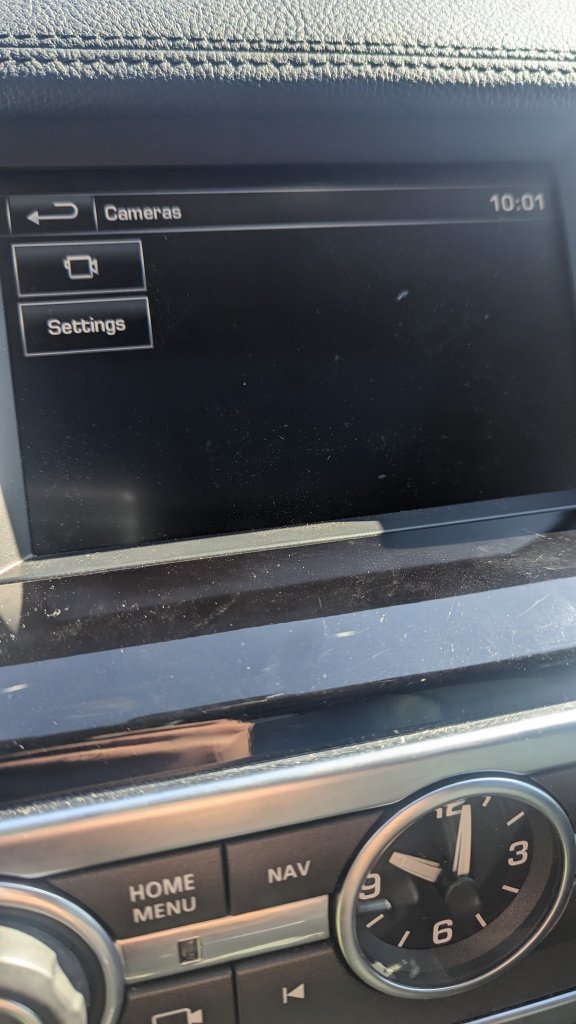

My LR4's camera system just stopped working the other day. I see very little information on my symptoms online. The main camera button does nothing, when put into reverse rear camera does not come on- all parking sensors seem to be working fine. Inside the display, the camera menu has no cameras present and cannot select the 'settings button'. I see no fault codes.
Any ideas would be greatly appreciated!!
From what I gather the camera module is located under the passenger seat- maybe I'll dig that out to look for damage. But other than that, I'm at a loss.
Thank you!


Attachments

  • PXL_20230401_140129716.jpg
    95.3 KB · Views: 50

ryanjl

Full Access Member
Joined
Dec 31, 2015
Posts
3,047
Reaction score
1,810
Location
KCMO
Disconnect your battery for a few minutes, and reconnect.


JimmyY

Member
Joined
Oct 24, 2021
Posts
19
Reaction score
6
Location
Canada
This was the first thing I did- figured I would try to reset the module. This did not help. My next step it to see if the camera module has power. Just would like confirmation the module is indeed under the passenger seat


Rover Range

Full Access Member
Joined
Jun 13, 2022
Posts
569
Reaction score
312
Location
Texas
If you have the proximity camera system, the module is under the driver's seat.
Single back up cameras doesn't have a module.

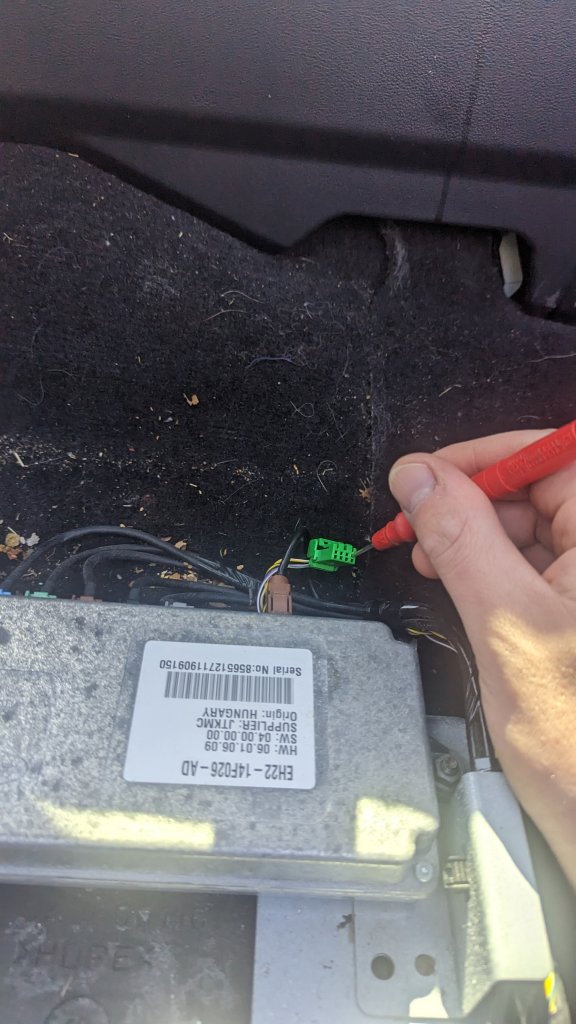

On the green 4 pin connector. You should have 12V on pin 4.
Looking into the connector, far right terminal.


JimmyY

Member
Joined
Oct 24, 2021
Posts
19
Reaction score
6
Location
Canada

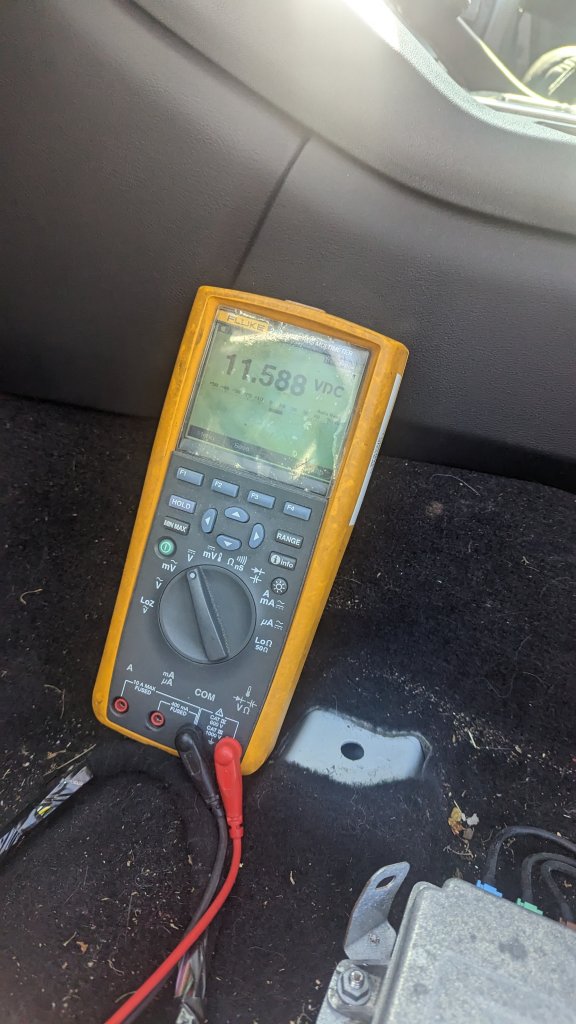

Okay, I have 11.6 V on that pin. Next step try to source a replacement module ? Is this straight forward plug and play, or does it require programming to the car specifically?


Rover Range

Full Access Member
Joined
Jun 13, 2022
Posts
569
Reaction score
312
Location
Texas
The module does have to be reconfigured.
But, I've seen some that were plug and play.

Sorry. Check the ground too.
Pin 1. Looking into the connector, far left terminal

Last edited:

Rover Range

Full Access Member
Joined
Jun 13, 2022
Posts
569
Reaction score
312
Location
Texas
Probably internal short.
Side note. If the module was functioning correctly, but a camera was out. The touch screen would be blue.


Rover Range

Full Access Member
Joined
Jun 13, 2022
Posts
569
Reaction score
312
Location
Texas
Try to avoid probing the front of the terminal. The terminal pins can spread apart and have a poor connection.
