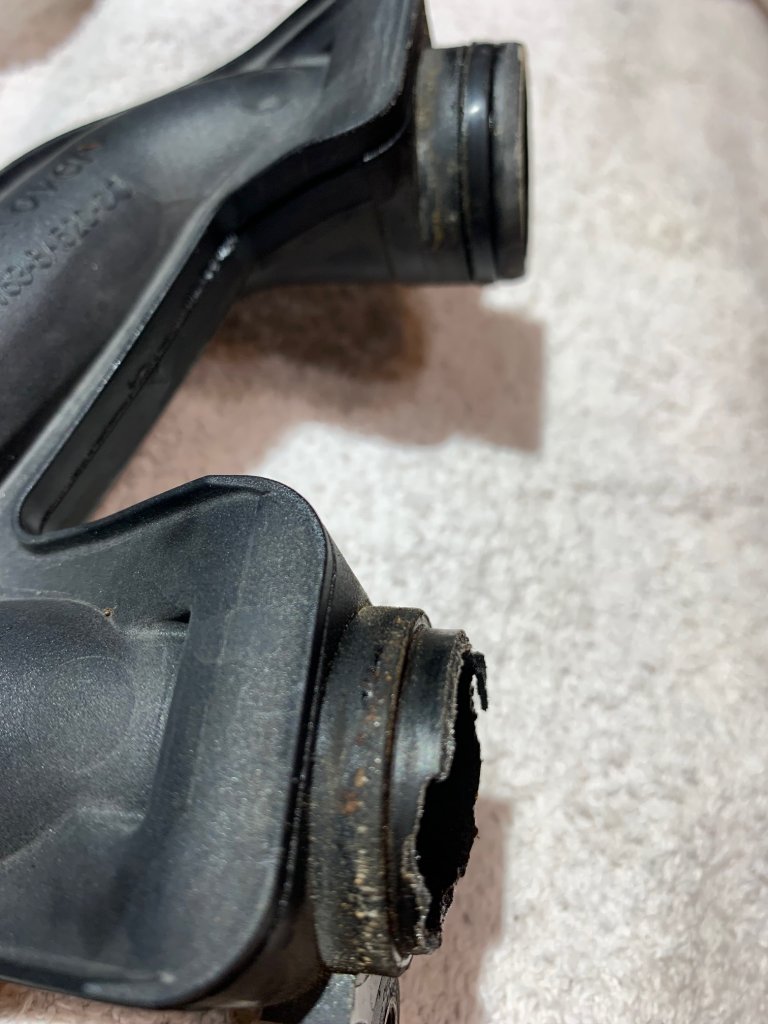

2016 LR4 Coolant Crossover, Water Pump, Thermostat Replacement

txfromwi

Full Access Member
Joined
Dec 18, 2013
Posts
245
Reaction score
77
Location
2013 in Houston and the 2016 in Rochester NY
Awesome, THANKS to you both!!!


Great photo, thanks for the extra work!!
I did not think to press on BOTH sides of that connector. Hopefully it works!
My opinion is that they design these things on purpose to make sure that only dealerships ever work on these vehicles.
From memory, this is now the 4th or 5th different electrical connector design just on this project, and I know there is at least one more connector yet to go...
And, really??, you couldn't add even one inch of slack in the wiring harness, or make it an in-line connector that can actually be reached - really?


Serious sleuthing on the SC.

I can confirm that the coupler I purchased from SCOL is the Eaton-361506.
I found a SCOL YouTube talking about authentic vs counterfit couplers. That website said the fit should be tight. They showed the install in the video and it was snug but still done by hand with no additional "coaxing".

HA! I found that Jag forum as well, late last night, but did not scroll down far enough! It was late...
27Nm is clear and I also find this: "The application of the sealant must be 1mm diameter. "
https://www.jaguarforums.com/forum/xf-xfr-x250-44/supercharger-coupler-isolator-diy-179095/

I will order up the Permatex Ultra Black (oil resistant).

And the oil volume is 151mL. Do Not Overfill!

Just for reference, there ain't no way on God's Green Earth that the SC was coming off without an engine hoist. It worked great!

I am making a video of the project. Hopefully I can post it shortly after I am done. It is going to be another very long beast...


cjm41

Active Member
Joined
Jun 12, 2021
Posts
44
Reaction score
36
Location
San Diego, CA
And the oil volume is 151mL. Do Not Overfill!

Just for reference, there ain't no way on God's Green Earth that the SC was coming off without an engine hoist. It worked great!

Ugh. So I stripped the hex on the fill hole bolt trying to get it off the supercharger. I ended up just moving along. You can change the oil on the supercharger while it's in the vehicle... a project for another weekend now. If I don't get around to it, I know I'm going be pulling the supercharger again to have it rebuilt in 20-30k anyway. I decided that I am only going to put in what I take out if I do get around to changing the SC oil. I am afraid of overfilling.

I got the supercharger off without an engine hoist (broke it free the serpentine belt tool then took bolts that fit into the supercharger bolt holes and attached straps to them). It's on video, otherwise I don't think anyone would believe me haha. I'm 6'3" 240 lbs though. Admittedly, a lot of that weight is fat nowadays, but I spent my 20s in the military and in the gym, so despite getting winded walking to the bathroom at almost 40, I probably retained some some of that power from my early days. I also put the truck in access mode before I started the project so I had a little more leverage.

Last edited:

txfromwi

Full Access Member
Joined
Dec 18, 2013
Posts
245
Reaction score
77
Location
2013 in Houston and the 2016 in Rochester NY

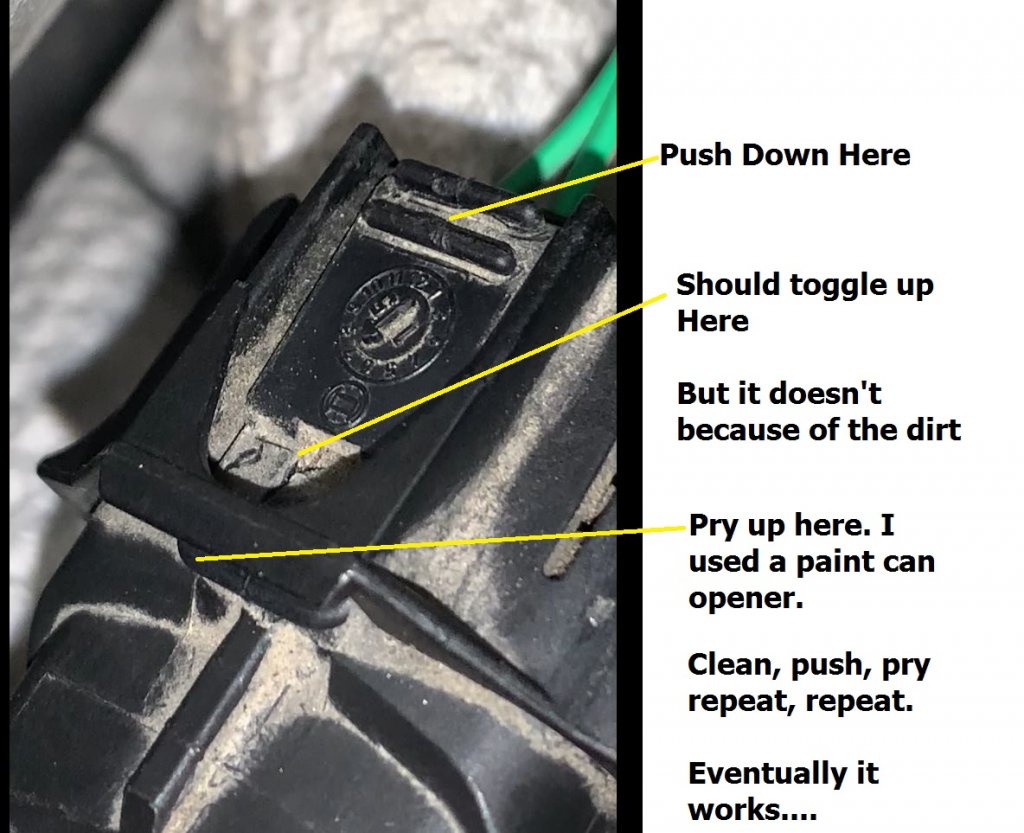

FINALLY. The electrical connector is off, but it is NOT pressing on two sides at the same time.

Press on the "outside/bottom" end at the two parallel bits.
This should lever up the end on the "inside" end of the connector, but that was not working.
So take a paint can opener and pry up on the inside, unstick everything, and then press on the outside/bottom.
Repeat. Repeat.
And eventually it comes off.

OI!!


greiswig

Full Access Member
Joined
Mar 1, 2021
Posts
436
Reaction score
135
Location
Oregon
I don't remember how I did it, but I do remember feeling so frustrated and in pain (knees, knuckles, and guitar-player fingertips) that I was thinking I'd be fine if the latches just broke off...I could glue it back together. I didn't have to, but boy, is that an awful place to put a difficult connector.

Glad you made it work!


txfromwi

Full Access Member
Joined
Dec 18, 2013
Posts
245
Reaction score
77
Location
2013 in Houston and the 2016 in Rochester NY
OK, on that supercharger.
It's on the bench.

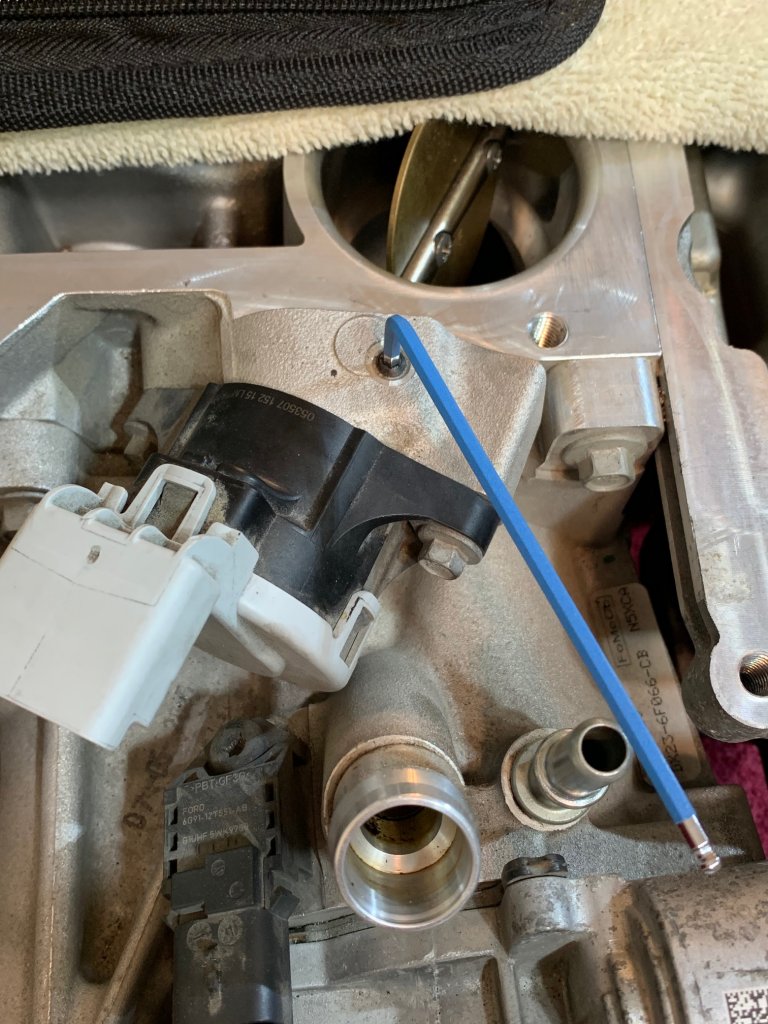

This is not what I was expecting, but is this little dinky plug the drain plug??
Please advise..
If it is I can tell you that that is a 3mm allen wrench.




Last edited:

Michael Gain

Full Access Member
Joined
Dec 8, 2018
Posts
590
Reaction score
269
Location
Clarksville, TN
OK, on that supercharger.
It's on the bench.
This is not what I was expecting, but is this little dinky plug the drain plug??
Please advise..
If it is I can tell you that that is a 3mm allen wrench.



View attachment 22216
No. That is the waste gate adjustment screw. If you unscrew it too far, you're likely to blow something. Let me find the adjustment procedure...


jlglr4

Full Access Member
Joined
Mar 19, 2019
Posts
762
Reaction score
395
Location
Northern California
supercharger drain/fill plug is on topside at the back of the sc. i think the recommendation is to use a syringe to withraw what you can, then put back the same amount.
