4.4 V8 Rear Coolant Leak

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

remember5

Full Access Member
Joined
Nov 26, 2014
Posts
415
Reaction score
133
2006 LR3 4.4 I'm getting a leak that drips around the bell housing/engine connection and wondering if anyone knows if the 4.4 has a crossover pipe or manifold in the back. Looking at the cooling diagram I don't see one and using my phone camera to look where I can't stick my head between the engine and firewall I can't readily identify one. I've also read posts about a hose that runs under the intake manifold but can't identify that on the repair manual diagram. I'm open to any advice. Thanks in advance.

Last edited:

Rover Range

Full Access Member
Joined
Jun 13, 2022
Posts
798
Reaction score
478
Location
Texas

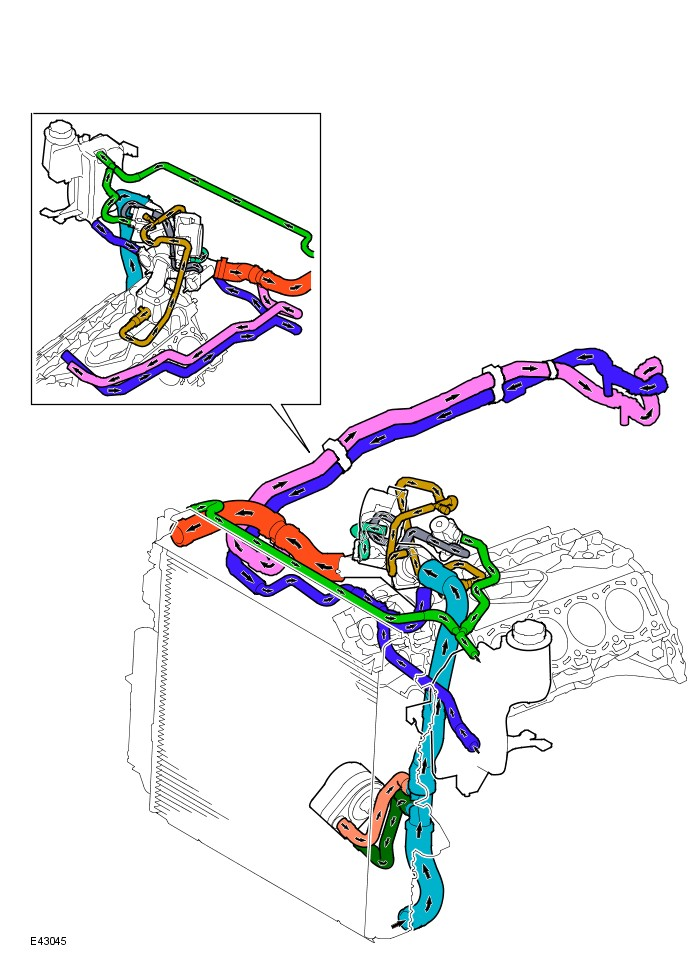

All the coolant pipes are in the front of the engine. Coolant may be running down under the intake manifold.


remember5

Full Access Member
Joined
Nov 26, 2014
Posts
415
Reaction score
133
That makes sense, when I first started after removing the skid plates there were about 8 quick drops from the front like where the water pump is and then it started dripping back by the bell housing. Guess it's time for another water pump. It's probably got 70k on it. Thank you for the diagram.


remember5

Full Access Member
Joined
Nov 26, 2014
Posts
415
Reaction score
133
OMG. My entire life I've preached Keep It Simple Stupid. Ordered the water pump and hose assembly and was looking at the engine thinking about the process to disassemble to get to the water pump and there was the bleed valve T completely corroded into pieces. $7.95 plus shipping and I'm back on the road. I really am getting to old for this stuff! Thanks again for the diagram!


35sLR3

Member
Joined
Mar 19, 2024
Posts
13
Reaction score
3
Location
TN
Haha hate to hear it but also glad it was quick and easy!


remember5

Full Access Member
Joined
Nov 26, 2014
Posts
415
Reaction score
133
Update, leak was in fact a minor water pump weep but got worse. I spent 6 hours trying to get the stupid fan clutch assembly off and finally gave up. Took it to a local shop and they replaced the pump with the Genuine I had bought earlier. Tested the system and everything is now tight and solid.


GSMblue

Full Access Member
Joined
Sep 6, 2012
Posts
146
Reaction score
11
When I did my water pump, the fan came off easy, I had the right tools for it, the bolt holder and the offset 36mm wrench. didn't even scuff my knuckles, but boy did it take me forever to line the threads back up and spin it back on. Reassembly was a 2 beer job!


Tictaktoe

Well-Known Member
Joined
Apr 12, 2015
Posts
74
Reaction score
4
I developed coolant leaking at around 112k miles. Given this is the time, the plastic starts breaking down, I replaced all the crossover pipes, T valve, all hoses and tubing etc. Hoping that solves it for another 100k miles
