BD Squadron fog lights

Discussion in 'LR4' started by djkaosone, Sep 16, 2020.

  1. djkaosone

    djkaosone '11 LR4 HSE LUX 5.0L V8

    Posts:
    471
    Likes Received:
    293
    Joined:
    Oct 26, 2015
    Location:
    SoCal

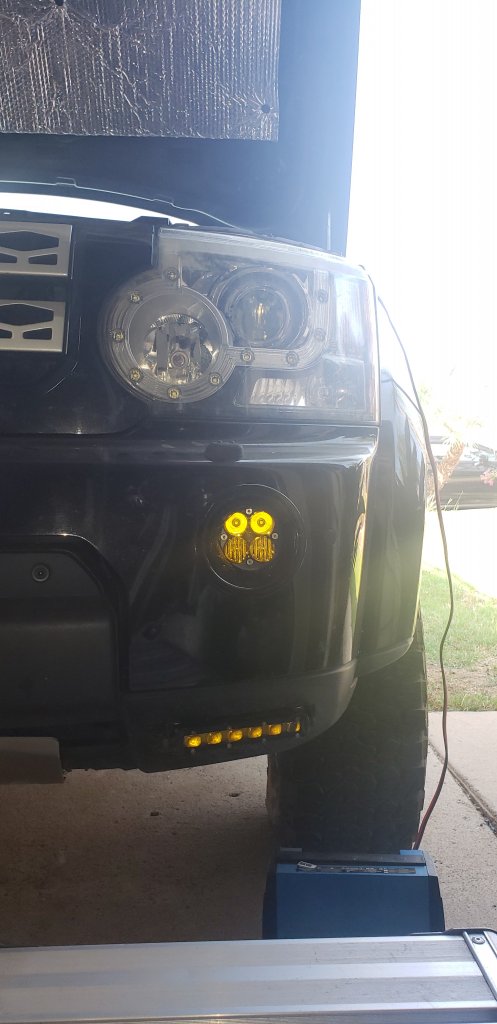

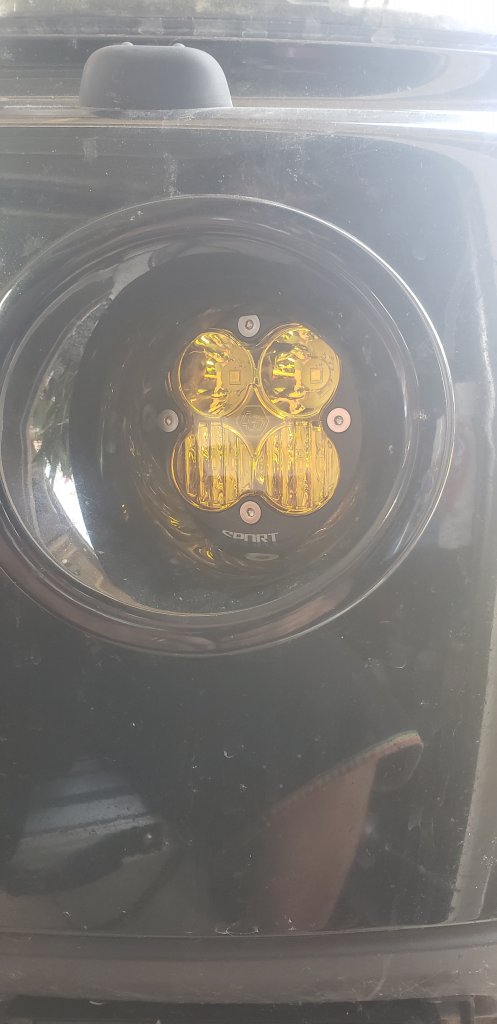

    If anyone is wondering, yes, you can definitely replace your fog lights with Baja Designs Squadron-R Sports. They are the perfect size.

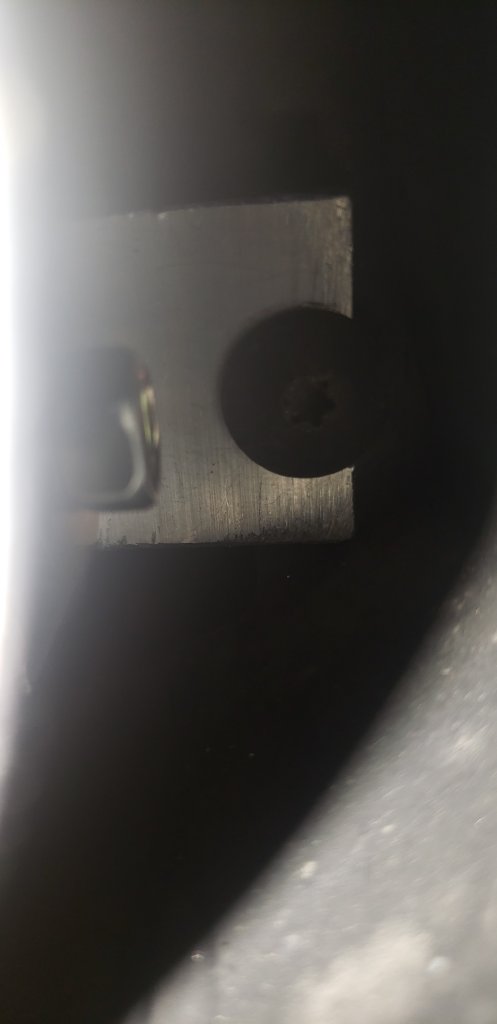

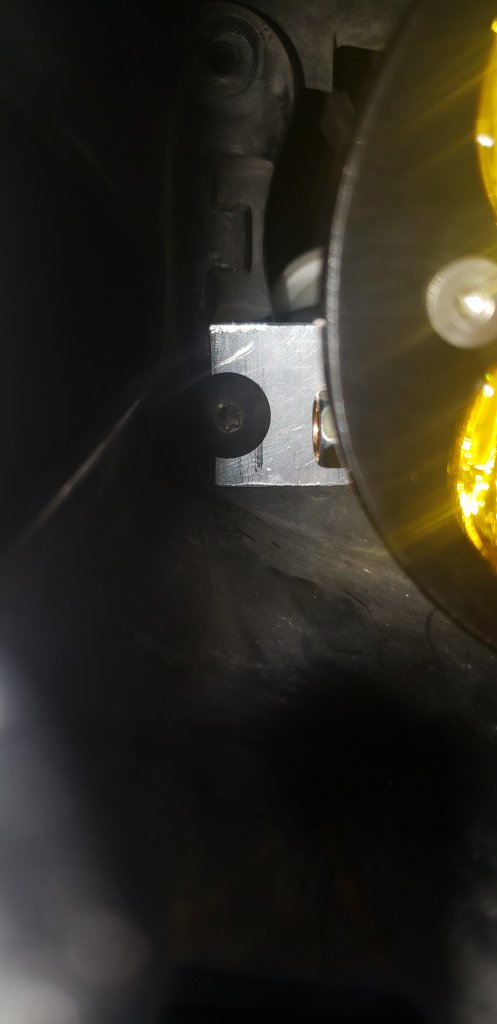

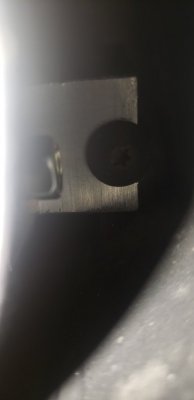

    I made some custom brackets from 1" aluminum L bar. And just use an h11 male pigtails to connect up to the BD connectors.

    20200916_101920.jpg 20200916_101937.jpg 20200916_095946.jpg 20200916_095918.jpg 20200916_115929.jpg

  2. Jasevo3rs

    Jasevo3rs Active Member

    Age:
    50
    Posts:
    30
    Likes Received:
    7
    Joined:
    Jun 25, 2020
    Location:
    Houston, TX
    Oooooo... they're nice!

  3. DirtyHal

    DirtyHal Full Access Member

    Age:
    31
    Posts:
    149
    Likes Received:
    98
    Joined:
    Jan 17, 2018
    Location:
    Spokane, WA
    That's awesome! I was just looking at their lights the other day. Which beam pattern did you use?

  4. djkaosone

    djkaosone '11 LR4 HSE LUX 5.0L V8

    Posts:
    471
    Likes Received:
    293
    Joined:
    Oct 26, 2015
    Location:
    SoCal
    Driving/combo amber. I'm still waiting on the H11 pigtails to come in tomorrow to finish wiring it up. I fused tested it and looks good so far.

  5. Jimmy Brooks

    Jimmy Brooks Full Access Member

    Age:
    20
    Posts:
    336
    Likes Received:
    108
    Joined:
    Sep 15, 2019
    Location:
    Pasadena California
    How did you hook it up the the original fog lamps. Is there a conversion wiring loom or did you have to wire it your self.

  6. djkaosone

    djkaosone '11 LR4 HSE LUX 5.0L V8

    Posts:
    471
    Likes Received:
    293
    Joined:
    Oct 26, 2015
    Location:
    SoCal
    So, I'm waiting for the H11 male pigtails to come in tomorrow. Then I will properly wire them up with the BD provided weatherproof connectors. I'll snap some pics of it when I'm done.

  7. ktm525

    ktm525 Full Access Member

    Posts:
    1,691
    Likes Received:
    764
    Joined:
    Mar 26, 2017
    Location:
    alberta

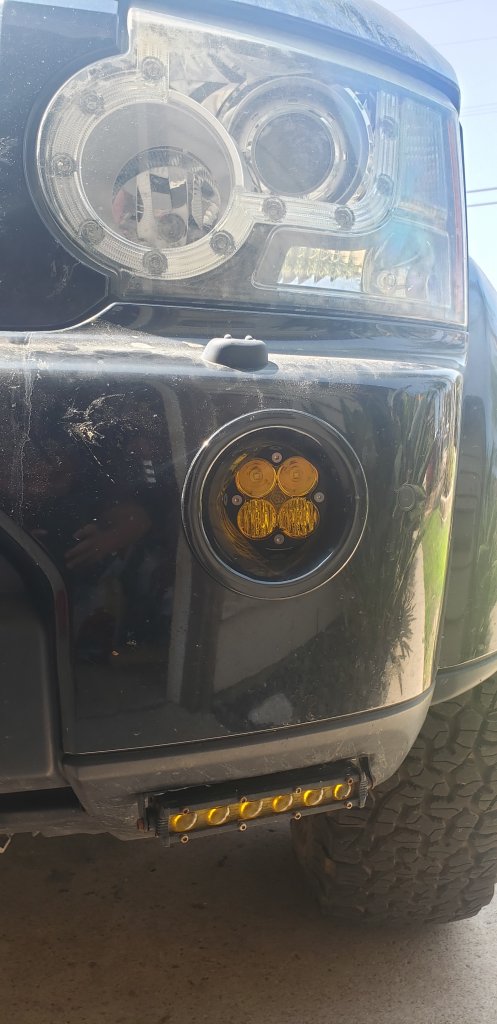

    I run squadrons stacked on my dirt bike and they are good but I don't think they would stand up to the winter rocks and gravel up here. . Do you get lots of fog in So Cal? and what is that strip of light below the fog lights?

  8. djkaosone

    djkaosone '11 LR4 HSE LUX 5.0L V8

    Posts:
    471
    Likes Received:
    293
    Joined:
    Oct 26, 2015
    Location:
    SoCal
    I'm looking to get a rock screen for them. Maybe something like this, https://www.amazon.com/dp/B00F3FJWQK/ref=cm_sw_r_cp_apa_i_IC5yFbCZ6DKTC.

    Fog in San Diego? Maybe a couple of days throughout the year.

    They were just some cheapo Amazon ditch lights that I wanted to cut out and fit into the bottom faux mesh of the bumper. Decided to just leave them. Debated if I wanted to get the BD S2 to fit in there, but they're too big.

  9. djkaosone

    djkaosone '11 LR4 HSE LUX 5.0L V8

    Posts:
    471
    Likes Received:
    293
    Joined:
    Oct 26, 2015
    Location:
    SoCal
    Update: Got them H11 male pigtails crimped with the BD connectors on. I wasn't able to correct the wiring color on the pigtails, but they are wired up correctly.

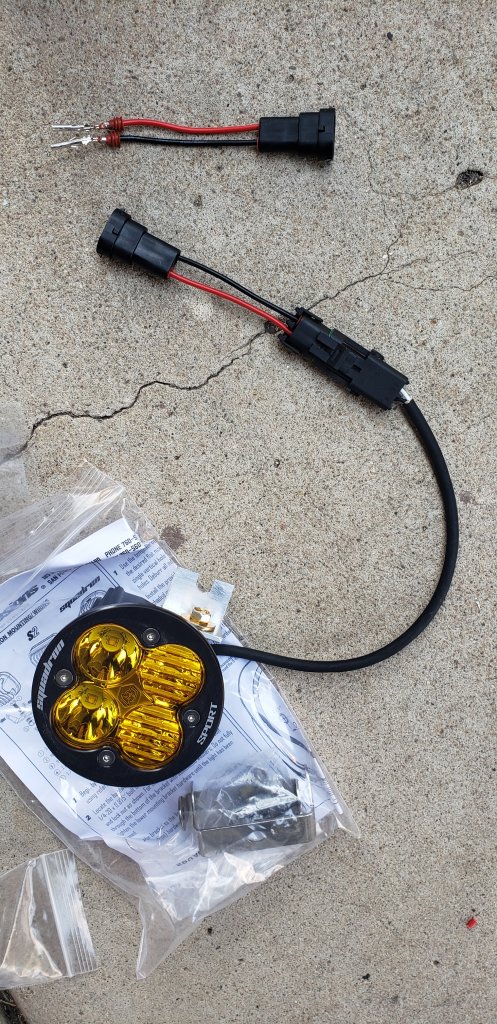

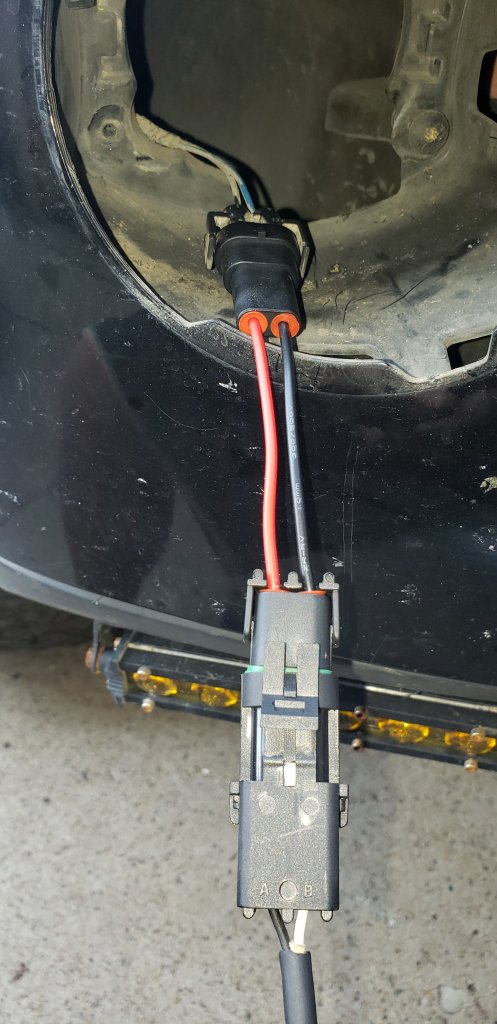

    Here's the wiring with the connectors, notice the H11 black wire is connected to the white wiring for the BD lights.


    The factory blue wire connects to the black H11 wire and back to the BD white wire, or factory blue to BD white. Factory black to BD black.

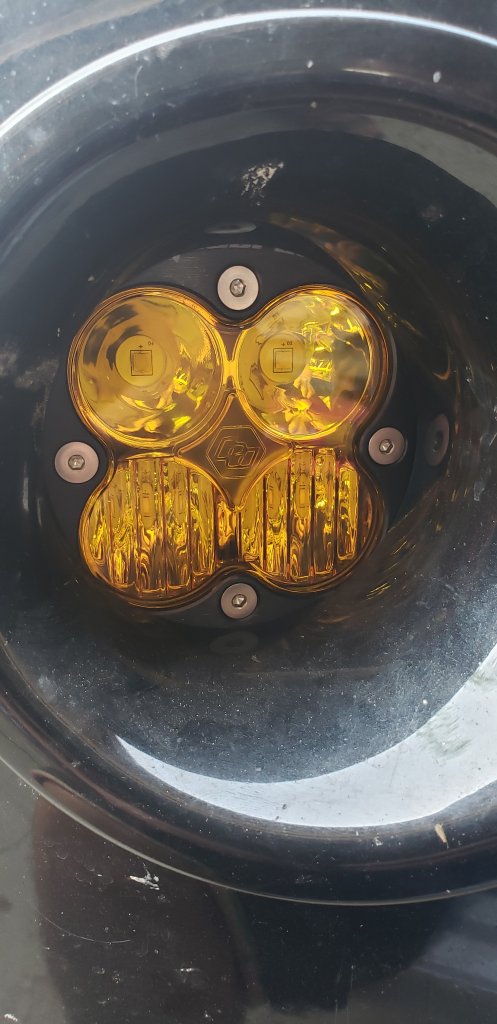

    Passenger side sits flush with oem fog light cover.

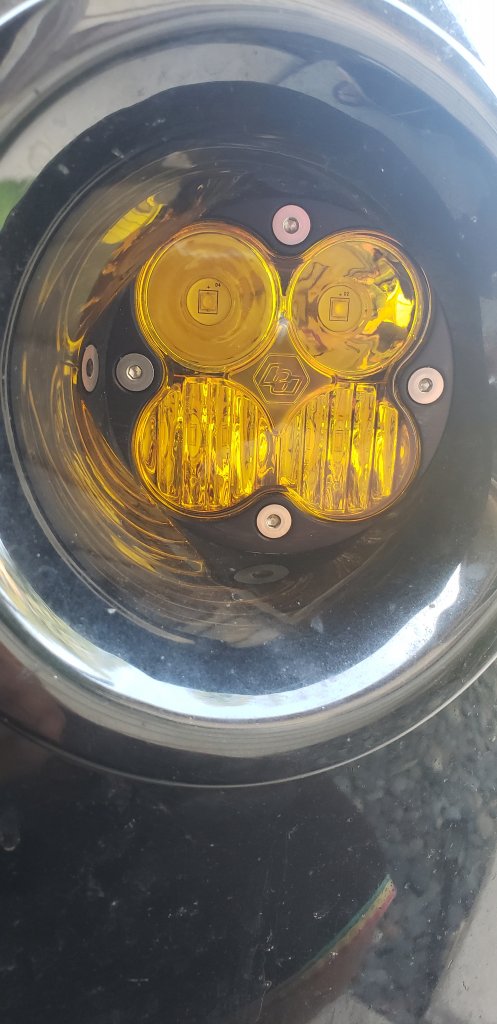

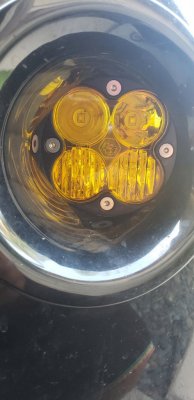

    Same with driver's side.

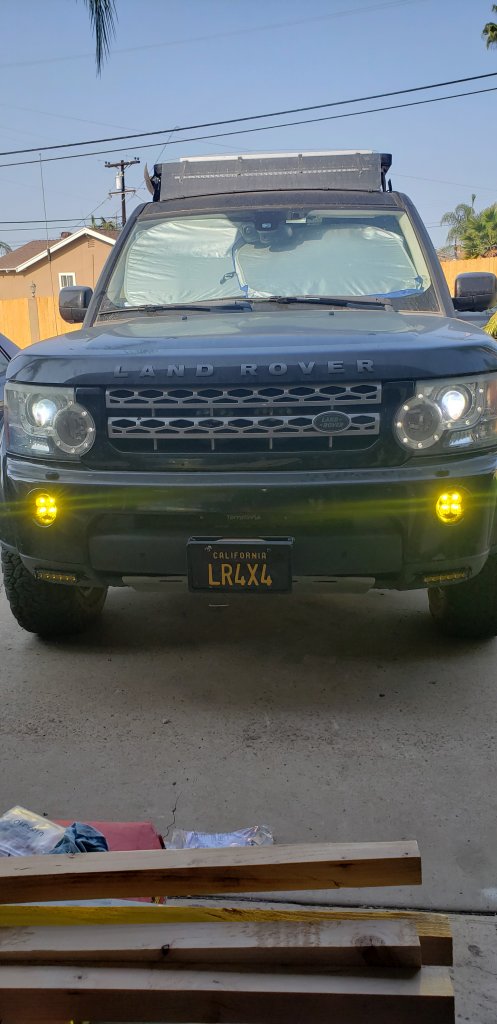

    Welp, they light up with factory fog light button!


  10. SkyTree

    SkyTree Supporting Member Supporting Member

    Age:
    30
    Posts:
    52
    Likes Received:
    42
    Joined:
    Jul 11, 2020
    Location:
    Southern California
    Depends on the season/temp, of course, but SoCal fog areas tend to be...

    (1) ...in passages between areas with different temps/altitudes (Ex: Cajon Pass in fall/winter often has heavy fog between the cold, high elevation High Desert and temperate, lower elevation Inland Empire). When these passages get fog, it's usually pretty dense.

    (2) ...in foothill areas where the cool, marine layer builds up overnight, usually dissipating in the morning by around 9am (Ex: Chino Hills/Diamond Bar/Brea/Anaheim Hills area, Pasadena/Burbank/Griffith Park area, Whittier/La Habra Heights area, Devore/Rancho Cucamonga/Upland area, etc). These areas get mild to moderate fog the most consistently; pretty much daily in the Fall.

    (3) ...occasionally in the slightly inland coastal areas in the late evening during the Fall (Irvine, Costa Mesa, Laguna Niguel/Hills, Vista/Bonsall, etc). This doesn't happen a ton in these areas, so locals aren't as familiar with fog driving etiquette, leading to the occasional fender bender.

    As far as San Diego, fog tends to be more prevalant in North County (MCB Camp Pendleton, Oceanside, Carlsbad, Encinitas/Leucadia).

    So, while fog is not super common in SoCal on the whole, if one lives in any of the above areas, fog lamps can be a helpful upgrade for your daily drive.
