Changing Starter Motor on LR4

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Jasevo3rs

Active Member
Joined
Jun 25, 2020
Posts
31
Reaction score
7
Location
Houston, TX
Had a look around the web and cannot locate anything specific to changing the starter motor on a 2012 LR4 (5.0). Found a few youtube clips on Range Rovers and LR3's but not the LR4.

Anyone done this themselves and if so, any tips?

Cheers


DUNCWALT

New Member
Joined
Jan 2, 2020
Posts
3
Reaction score
3
Location
Texas

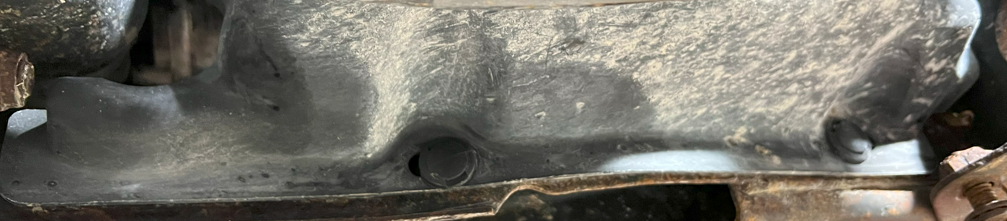

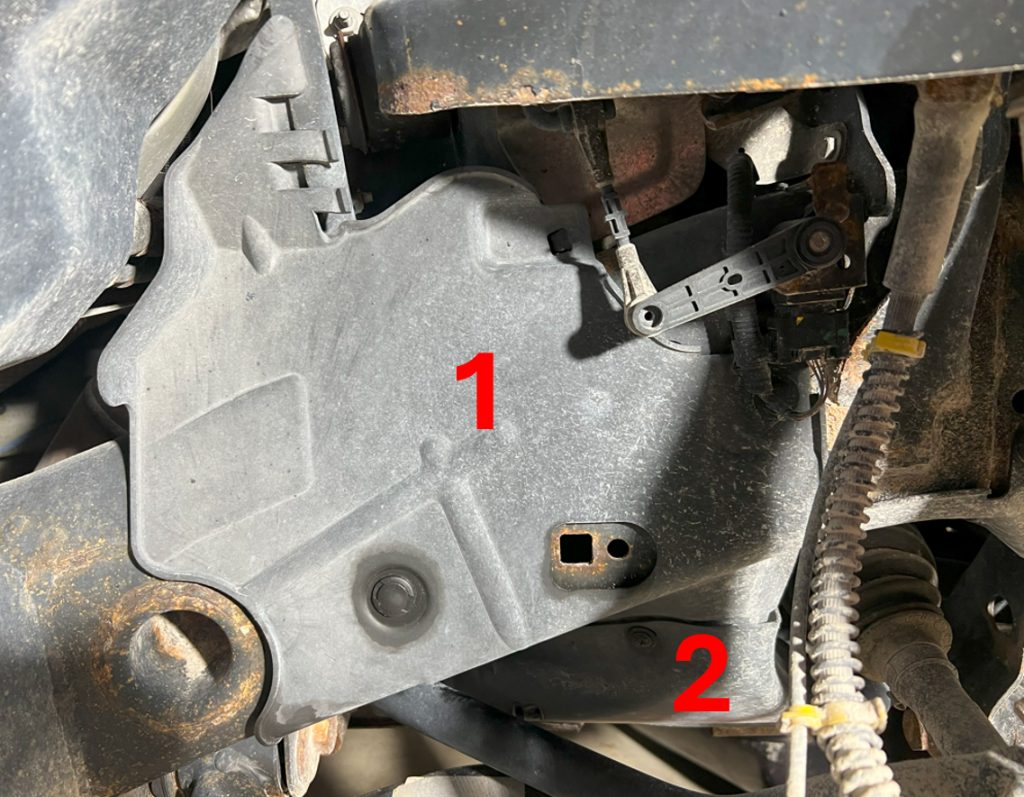

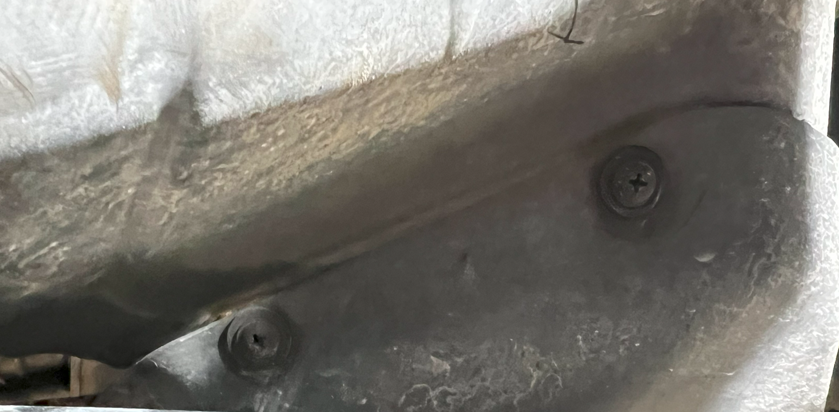

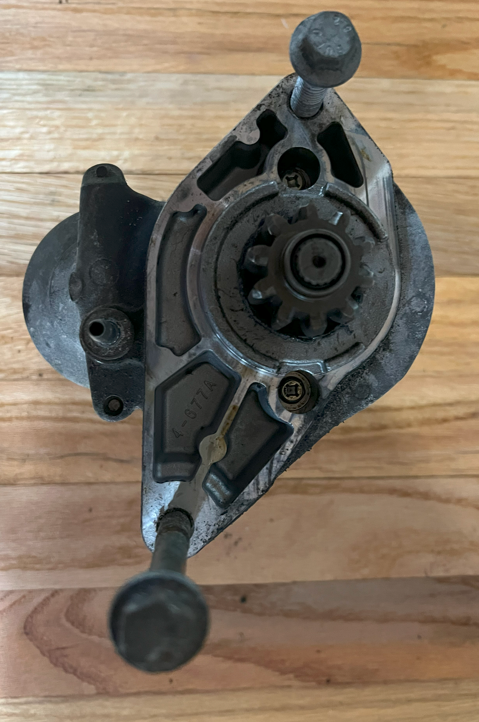

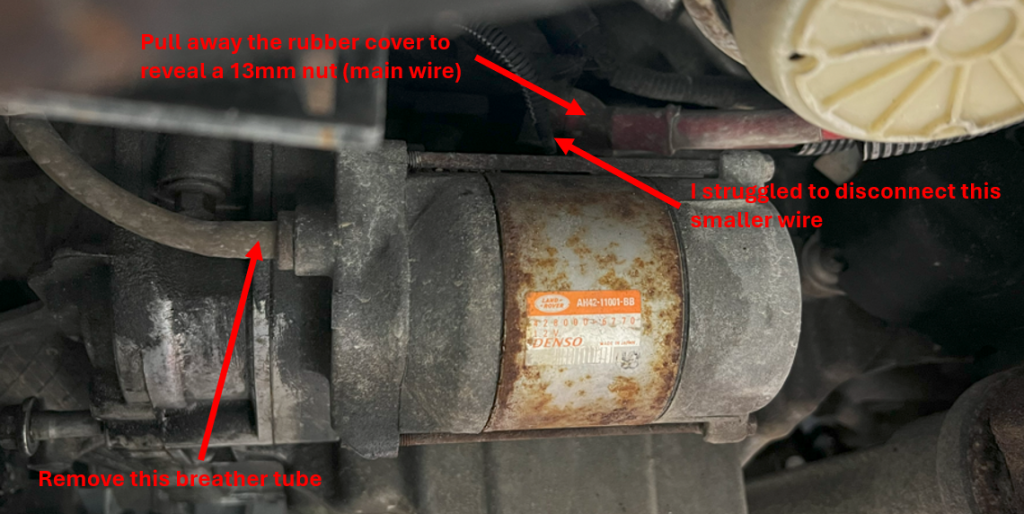

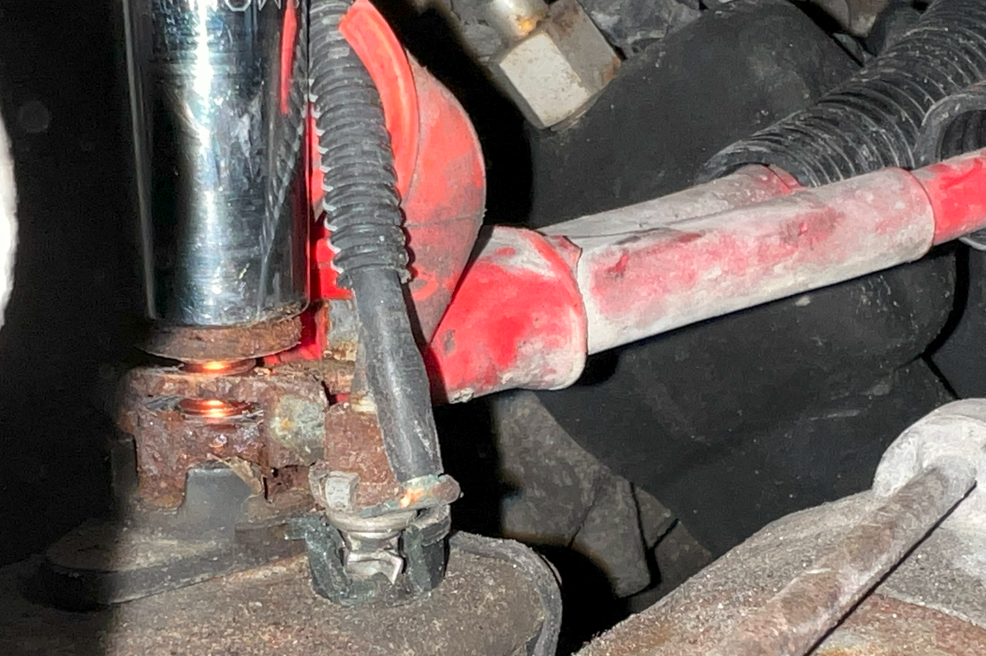

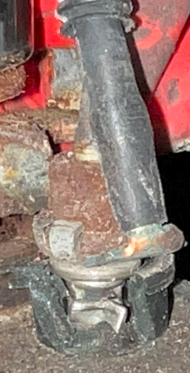

Piece of cake, right side, take off wheel and then two plastic splash covers, solenoid wire, starter wire and three bolts. Takes abouts an hours to an hour and a half max to take out and then the same to put back together. Watch out for different nut configurations though and check the stupid starter fuse. For some ignorant reason, the solenoid is not fed off the same circuit. So one can think their starter is bad due to a solenoid click only. But the 400 AMP, nuclear detonator fuse might be blown.

Good luck
