Crankshaft Position Sensor Location 4.0L

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Jason_K

New Member
Joined
Jul 1, 2020
Posts
3
Reaction score
2
Location
US
Does anyone have a picture or video showing the location of a CPS on '06 LR3 4.0L?

Thanks!


ktm525

Full Access Member
Joined
Mar 26, 2017
Posts
2,588
Reaction score
1,259
Location
alberta
If you can't find it search for an explorer of the same year. Its the same engine


Jason_K

New Member
Joined
Jul 1, 2020
Posts
3
Reaction score
2
Location
US

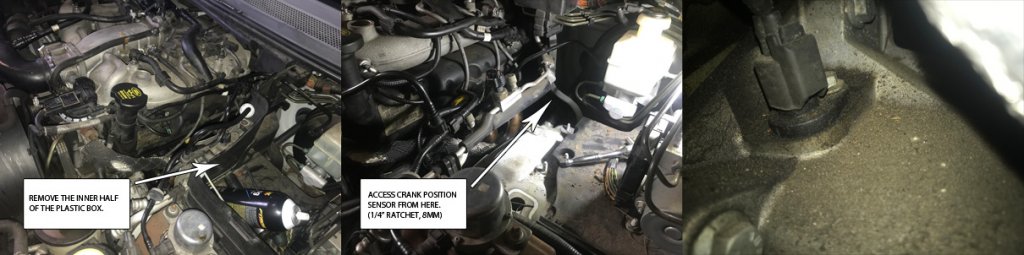

I found it, it is right on top of the bell housing (top of the transmission where the engine connects). It is secured with a single 8mm bolt and my method of gaining access was to remove the inner half of (what I believe to be) the secondary battery box on the drivers side and reach the back of the motor. A 4" 1/4" ratchet and a short socket worked fine. The connector is a "push in", just feel for the obtruded side, push the button and it should release with little effort. Any questions? leave a comment and I will update this post.



Last edited:

robmac

New Member
Joined
Apr 4, 2022
Posts
1
Reaction score
0
Location
calgary
Hey I removed the parts required in the 3 pictures but I can’t find the stupid crankshaft sensor. I even pulled the skid plates off and tried from the bottom. I have a 2006 LR3 V6. I’m losing my mind. Can anyone help me find this sensor.
