Discovery LR5 Air Suspension Issue

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

jruvira

Member
Joined
Feb 19, 2024
Posts
10
Reaction score
2
Location
Miami FL
Hello all, I could use a little help

I have an LR5 that all of a sudden the suspension will not raise the vehicle. After doing a little searching here I found a thread that talks about the possibility of the suspension compressor not working. I looked on you tube and found an amazing video of a mechanic showing you how to replace the compressor here is the link

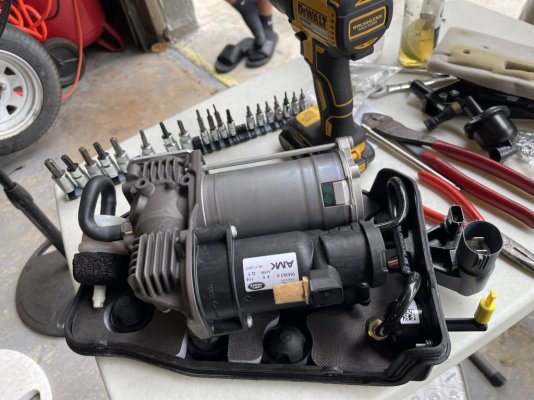

I took out the compressor and drilled out the rivets from the cover so that the compressor was exposed, I put back the compressor and conected it and turned on the rover. I immediately saw what the issue was. The culprit is the Dryer Valve when the compressor turned on you could see and hear a massive air leak through the Dryer Valve. You do not have to buy the entire compressor, you can simply purchase the Dryer Valve, remove the rivets and reinstall it. Cost was $75 on amazon this is the part number from Land Rover LR140035.

So I reinstalled everything turned on the Rover and the it started to fill the lines with air and the suspension raised the Rover.

The issue that I am having is that the compressor keeps on pushing air through the line and the air attachment point snaps off and the SUV goes down again.

Is this happening because the computer needs to be reset and it is not recognizing sufficient air in the lines?

Any help will be greatly appreciated. THX

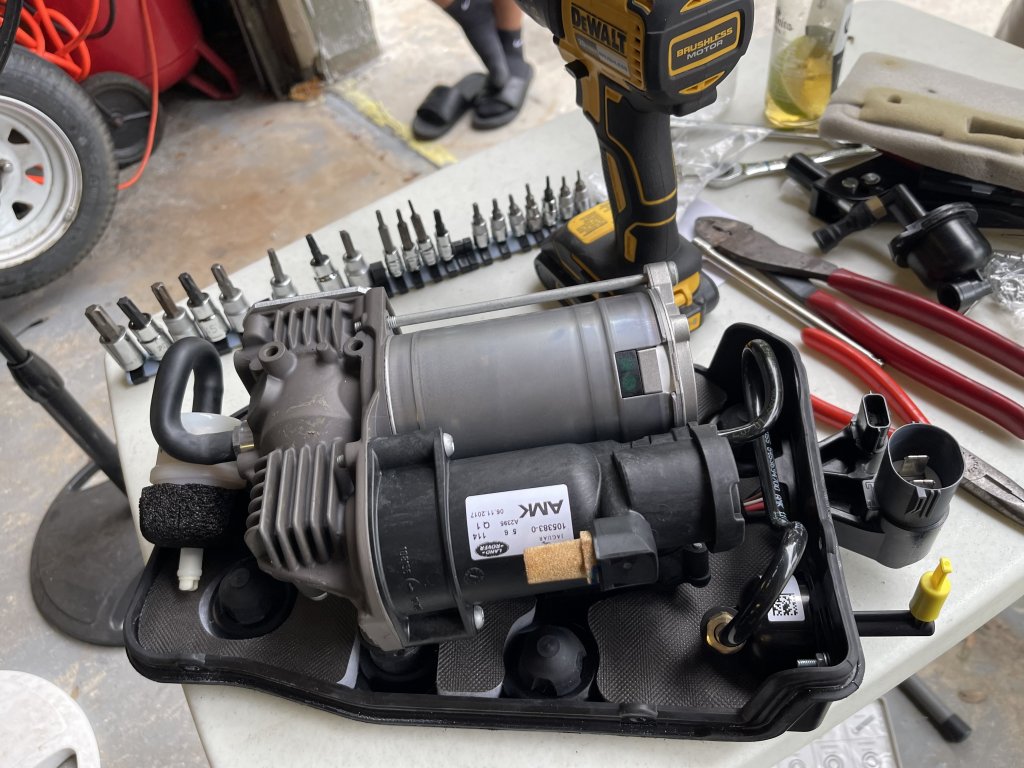

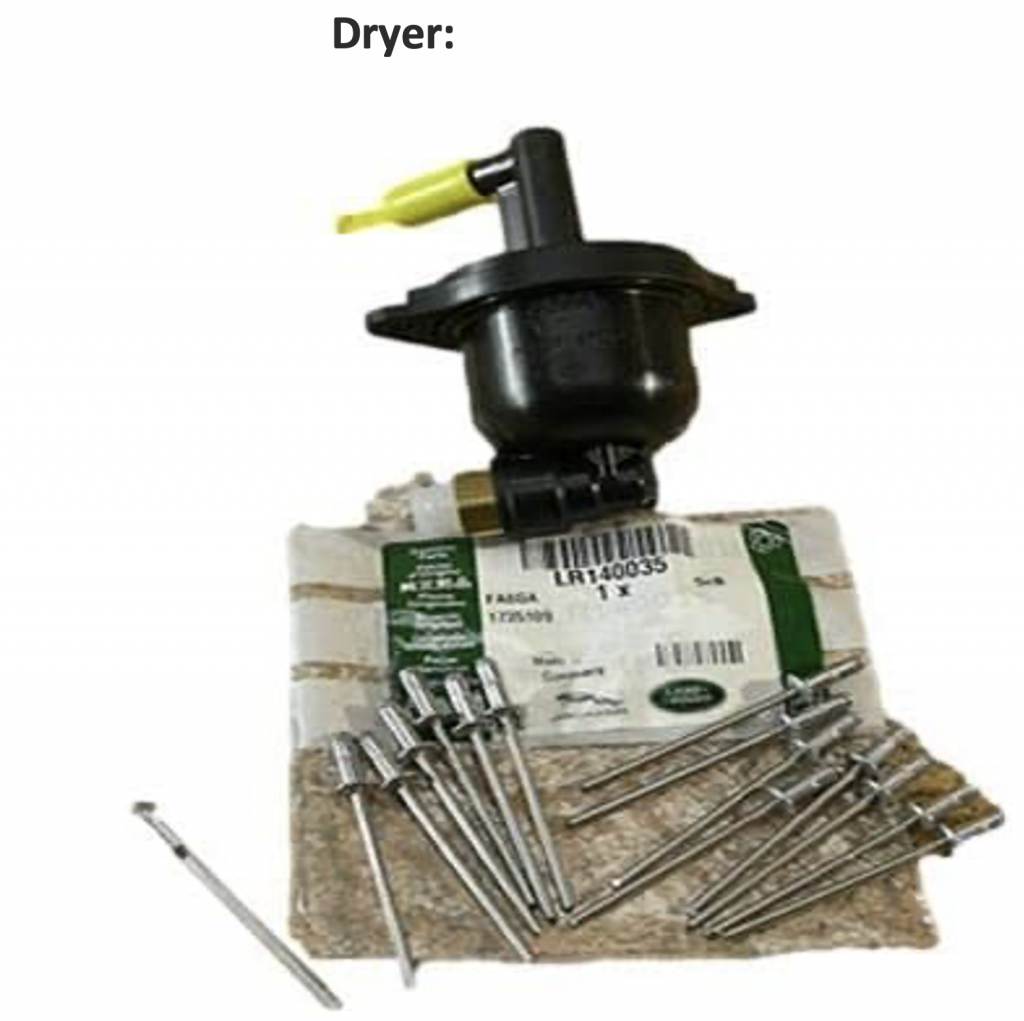

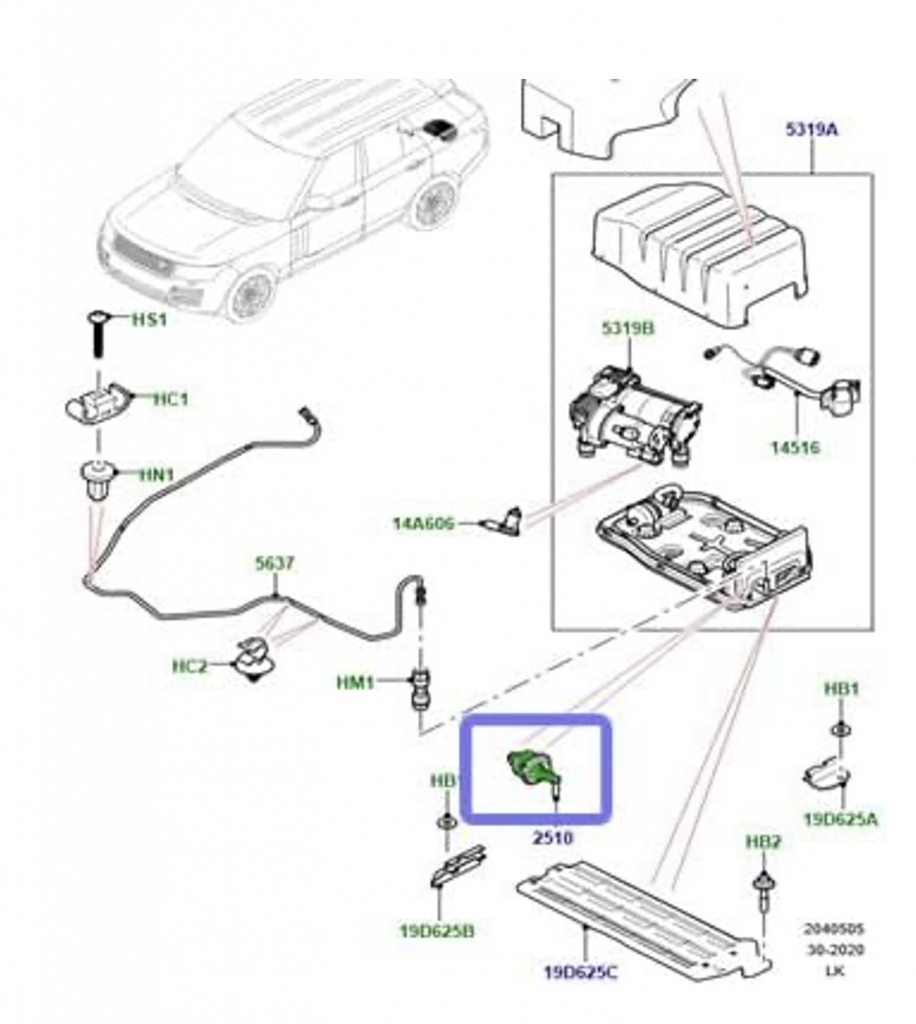

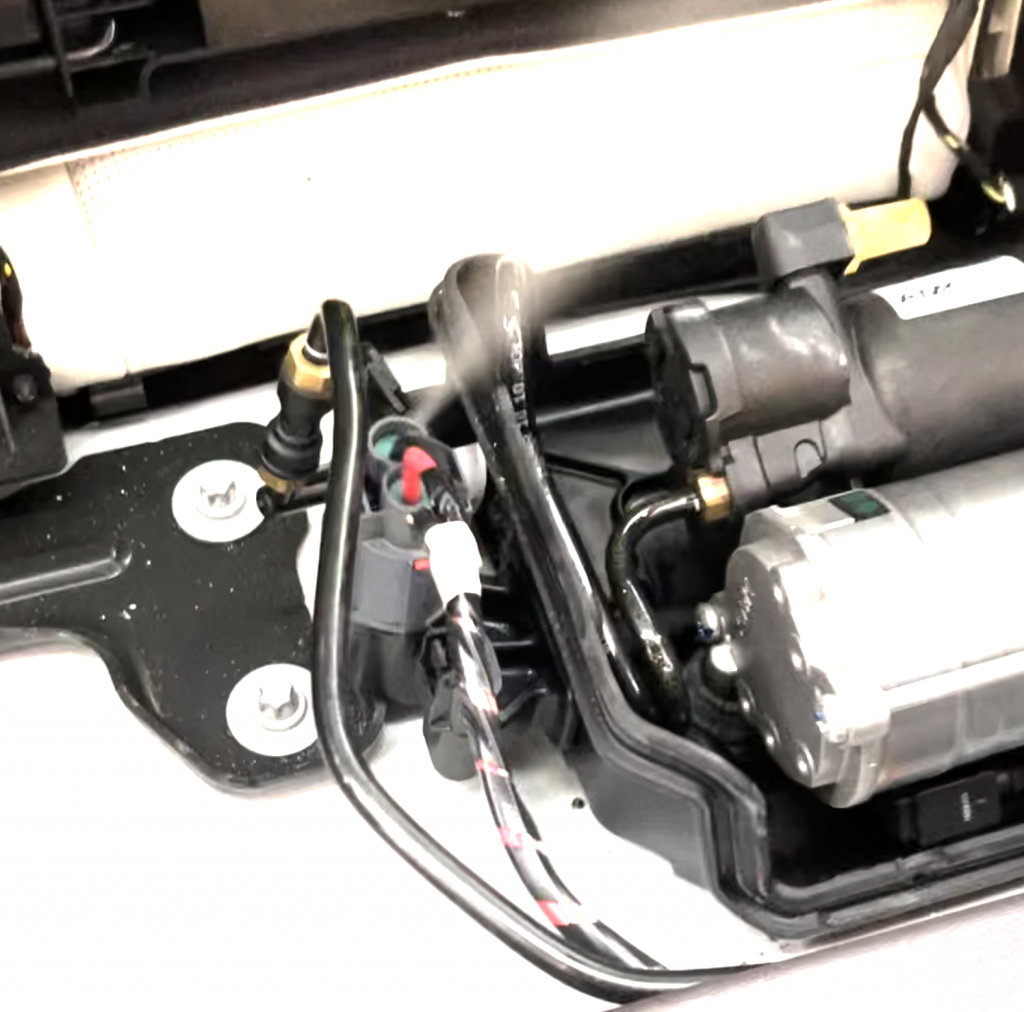

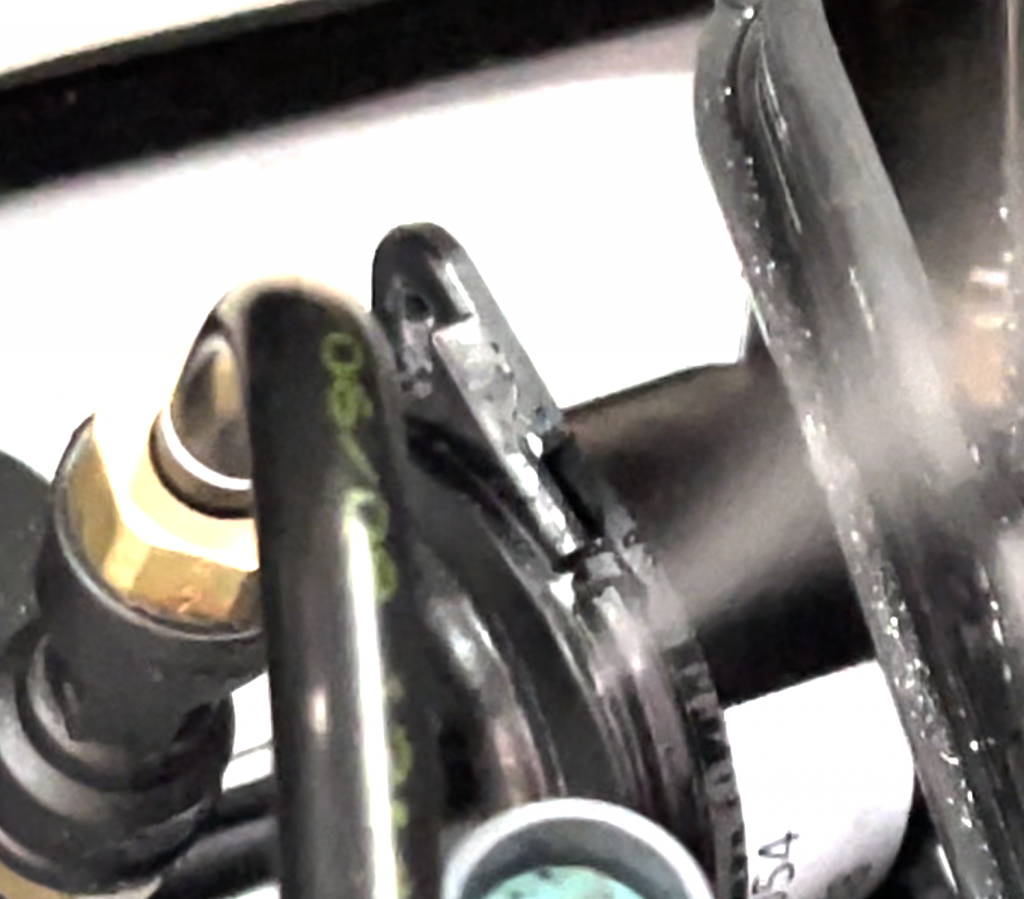

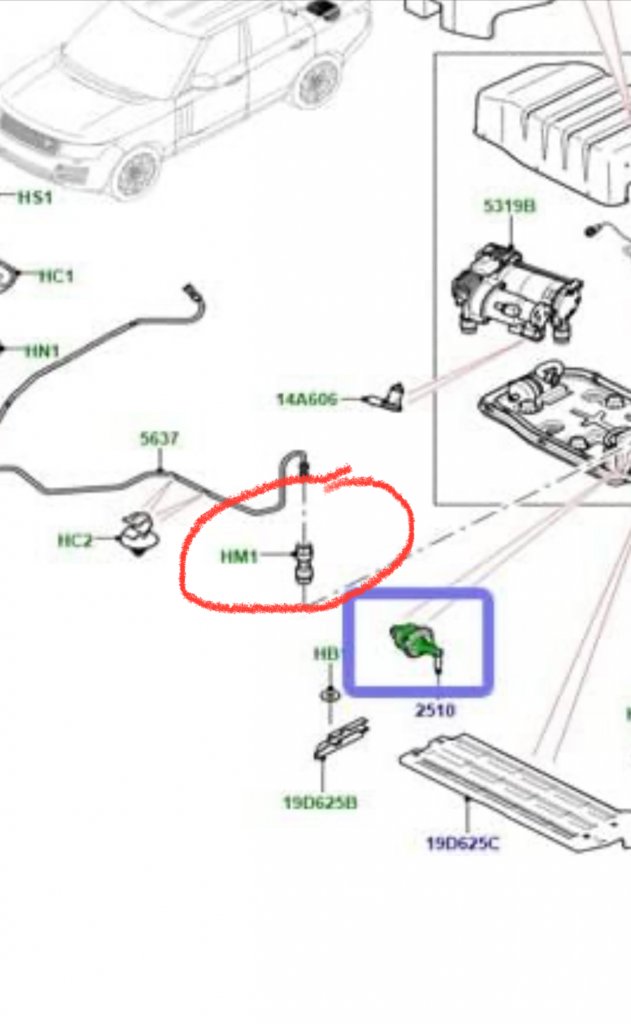

I have attached the images of my compressor opened and also of the leak you can clearly see it. I also attached images of the parts diagram and Dryer Unit


Attachments

  • Screenshot 2024-06-12 at 1.22.35 AM.png
    Screenshot 2024-06-12 at 1.22.35 AM.png
    893.1 KB · Views: 22
  • Screenshot 2024-06-12 at 1.59.19 AM.png
    Screenshot 2024-06-12 at 1.59.19 AM.png
    584.9 KB · Views: 24
  • IMG_4837.jpeg
    153.6 KB · Views: 24
  • Screenshot 2024-06-12 at 1.22.11 AM.png
    Screenshot 2024-06-12 at 1.22.11 AM.png
    915 KB · Views: 20
  • Screenshot 2024-06-12 at 1.59.32 AM.png
    Screenshot 2024-06-12 at 1.59.32 AM.png
    601.4 KB · Views: 19

Rover Range

Full Access Member
Joined
Jun 13, 2022
Posts
617
Reaction score
340
Location
Texas
Is the air line blowing off the drier fitting?
If so, you will need a new air line connector fitting.


jruvira

Member
Joined
Feb 19, 2024
Posts
10
Reaction score
2
Location
Miami FL
Yes it’s the fitting that connects the compressor to the air line. It keeps snapping off, but I don’t see the compressor stopping does it need to reach a certain pressure point to stop? Thx

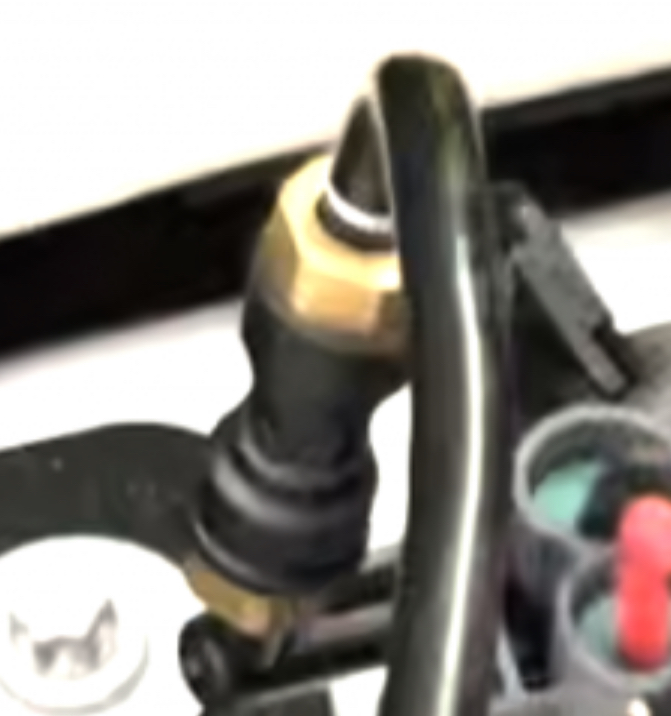

I attached an image and circled in red.


Attachments

  • IMG_4991.jpeg
    247.7 KB · Views: 14

Rover Range

Full Access Member
Joined
Jun 13, 2022
Posts
617
Reaction score
340
Location
Texas
The compressor does stop when the desired pressure is reached.
If that fitting is leaking, the compressor will keep running.

If you need the fitting, I can send you one. Free.


jruvira

Member
Joined
Feb 19, 2024
Posts
10
Reaction score
2
Location
Miami FL
Dang bro you’re seriously a cool dude wish k had you down here in SoFlo you would be my mechanic. I truly appreciate that. 10250 SW 68th St Miami FL 33173


jruvira

Member
Joined
Feb 19, 2024
Posts
10
Reaction score
2
Location
Miami FL
The fitting wasn’t leaking it was snapping off as pressure increased. I assume those plastic threads ware off and the fitting being tight gets compromised.


jruvira

Member
Joined
Feb 19, 2024
Posts
10
Reaction score
2
Location
Miami FL

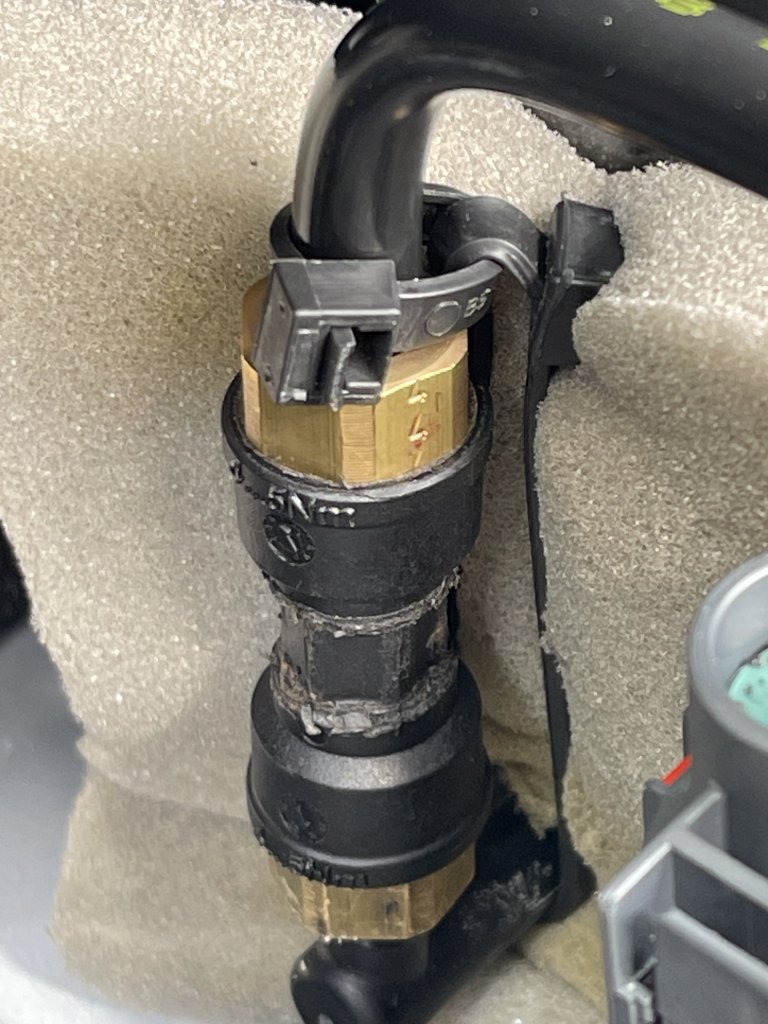

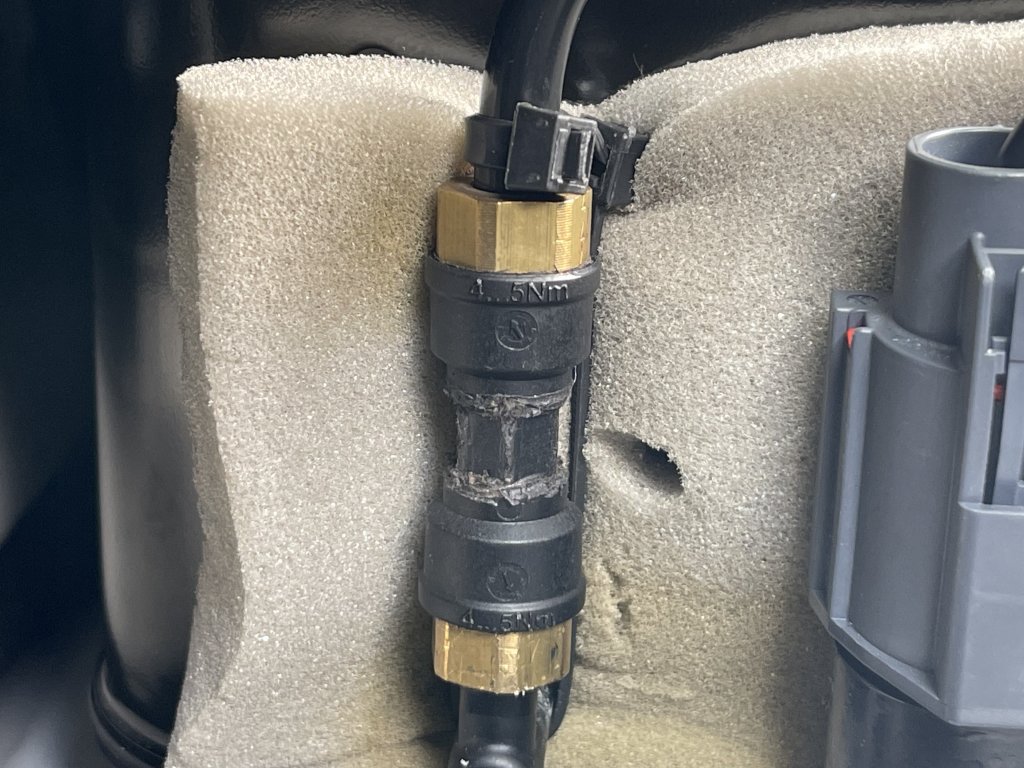

Apologies for the delay. As you can see the only way it would stay attached is with the draw-ties.


Attachments

  • IMG_5073.jpeg
    163.3 KB · Views: 14
  • IMG_5072.jpeg
    144.4 KB · Views: 15

Rover Range

Full Access Member
Joined
Jun 13, 2022
Posts
617
Reaction score
340
Location
Texas
You will need a new fitting.
Don't take apart the new fitting and make sure the tubing is inserted all the way in.


jruvira

Member
Joined
Feb 19, 2024
Posts
10
Reaction score
2
Location
Miami FL
Hey bro, I did exactly as you advised I ordered a new fitting. I took that one off. I cut the zip tie and I installed the new fitting. It’s working perfect. Everything is working fine. It’s going up and down. The only thing I regret was not doing in a little bit sooner because I rode the car for a little while with a suspension at the bottom and I think it threw off my camera on the rear end because I had two brand new tires that it just ate up the inside line the rest of the tires brand new. But the new fitting works fantastic. I think the new fitting has to be replaced every time you replace the parts of the compressor because , taking off loses its strength somehow the threads. But I want to thank you you’re an awesome freaking dude bro. I appreciate people that help others big time means a lot man. I’m a trauma nurse and I’m always trying to help people however I can. I don’t really want anybody to pay anything back to me you know what I mean so I just wanna thank you from the bottom of my heart bro. I got you here if I ever do anything else I’ll hit you up. I kinda enjoy working on my vehicles cause I come from a father and a grandfather that were mechanics so I just don’t do that but since I grew up with them, I understand it and I do it . For example, buff Harley Davidson about three years ago and I’ve never worked on those onions before my life but I do now because I learned I just dove in there. So again I just wanna thank you brother.
