Front propshaft / driveshaft replacement

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

M32H32IS

Full Access Member
Joined
Feb 8, 2022
Posts
175
Reaction score
60
Location
Texas
Has anyone removed / replaced their front driveshaft (propshaft) from the t-case to the front diff? Mines clicking and worn.

I got under the Rover and can’t figure out what needs to be removed to do the job.


ftillier

Supporting Member
Supporting Member
Joined
Jul 27, 2021
Posts
587
Reaction score
287
Location
Portland, OR, USA

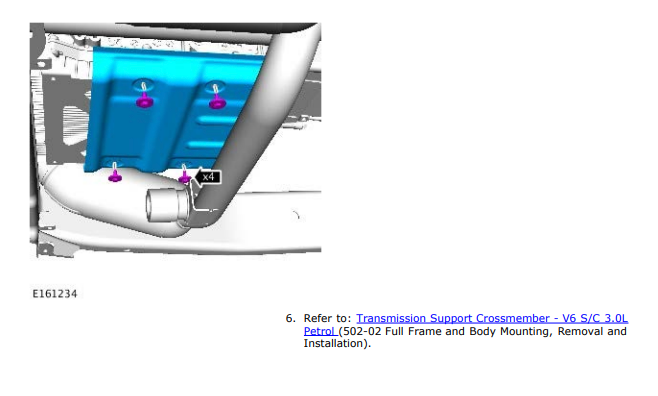

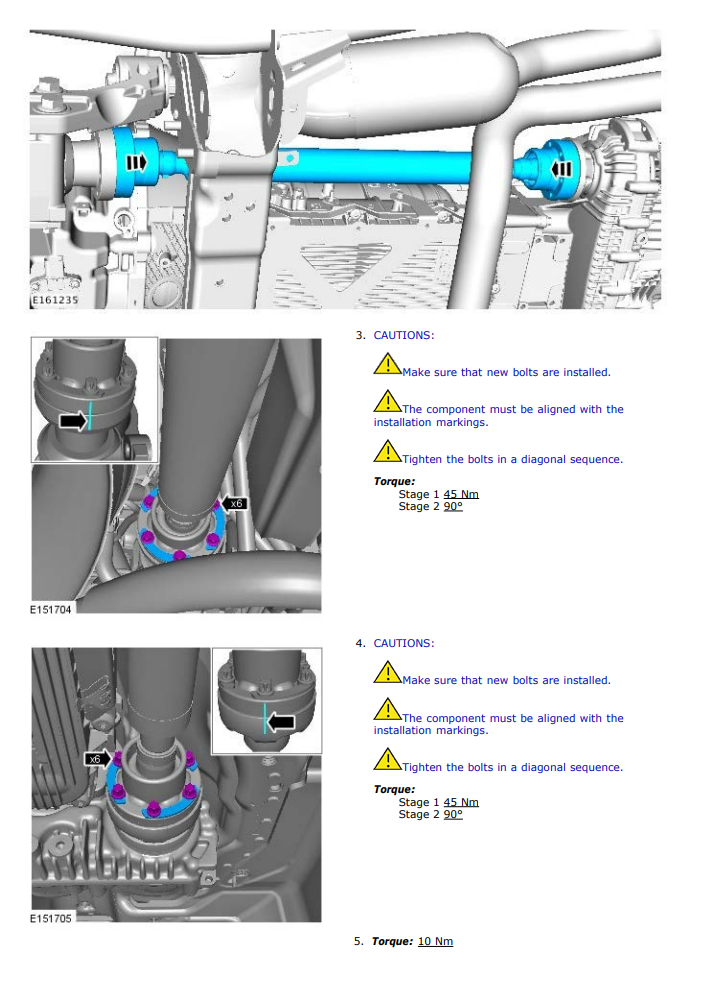

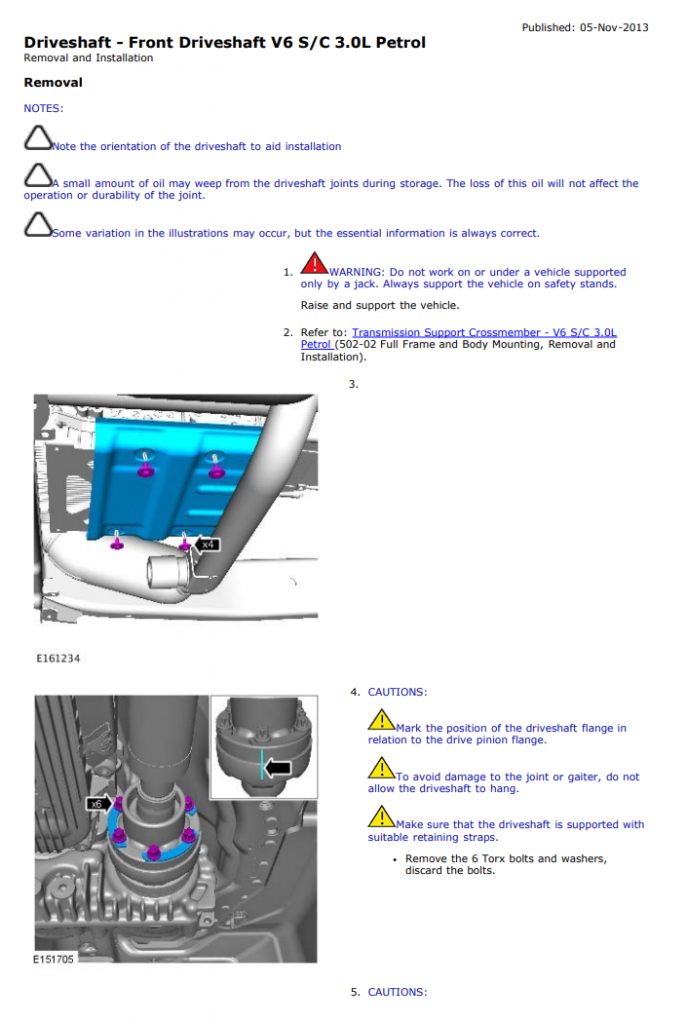

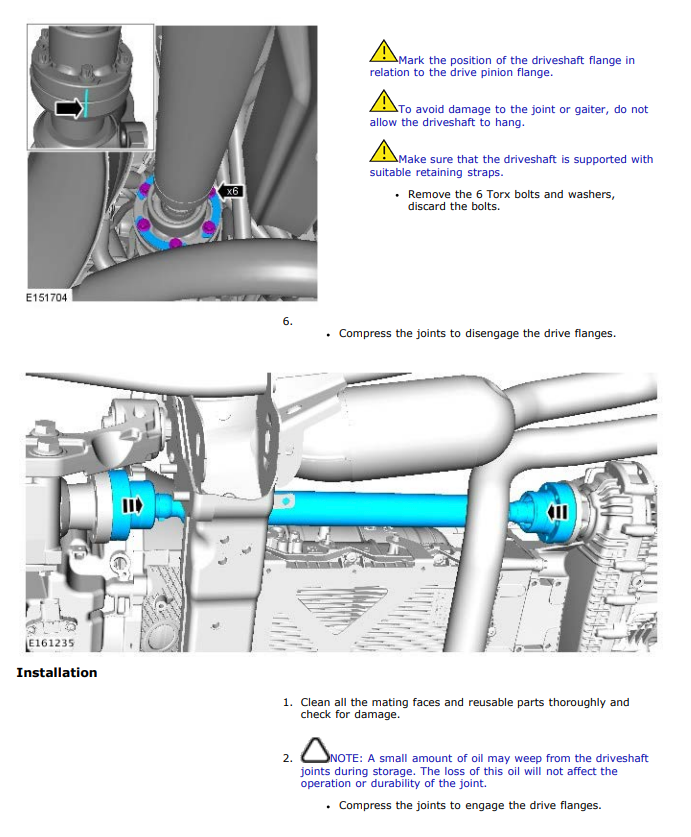

There's a section in the workshop manual that describes the sequence and torques and so forth. The shaft seems to be telescoping, so you undo the CV joints at either end, compress to release from the diff, then remove from the transfer case. The transmission cross member is documented as needing to come out, along with the transmission heat shield. Bolts are torque-to-yield, so must be replaced.






M32H32IS

Full Access Member
Joined
Feb 8, 2022
Posts
175
Reaction score
60
Location
Texas
Thank you for the detailed response! This group is the best


ftillier

Supporting Member
Supporting Member
Joined
Jul 27, 2021
Posts
587
Reaction score
287
Location
Portland, OR, USA
It's really worth the time looking for the workshop manual if you don't have it, lots of good information in it. I found copies in somebody's Google drive or OneDrive, I think linked from this site but maybe it was another enthusiast site. I think you can pay for a one day subscription and download the official one (perhaps in pieces). There's also a PDF full of wiring diagrams.

I do wish that after a certain age manufacturers would just make that stuff freely available.


M32H32IS

Full Access Member
Joined
Feb 8, 2022
Posts
175
Reaction score
60
Location
Texas
There’s a popping or clicking noise as I accelerate or decelerate. Also feel vibration from 50-60 mph


M32H32IS

Full Access Member
Joined
Feb 8, 2022
Posts
175
Reaction score
60
Location
Texas
There’s a popping or clicking noise as I accelerate or decelerate. Also feel vibration from 50-60 mph


M32H32IS

Full Access Member
Joined
Feb 8, 2022
Posts
175
Reaction score
60
Location
Texas
Can you please share more details on your truck‘s symptoms? How many miles?
185k miles and there’s a popping / clicking noise when under load either accelerating or decelerating. Drivetrain vibration around 50-55 mph
