Help identifying 14-16 part (PCV hose) I broke while doing rear crossover.

cjm41

Well-Known Member
Joined
Jun 12, 2021
Posts
47
Reaction score
40
Location
San Diego, CA
I am in the midst of a 3-day supercharger coupler, supercharger oil, and rear crossover replacement.

It’s gone fairly smoothly. I did record the whole supercharger removal on my DSLR from a tripod (about 1.5 hrs I believe), maybe I’ll post it up in a couple weeks. I did not record the rear crossover replacement, besides it was mostly me dumping sweat all over what’s left of the engine and cursing Land Rover while trying to remove some butterfly clips and a couple of bolts with a bevy of extensions and elbows.

Anyway… dumb dumb over here (that’s me, I’m dumb dumb) while putting the supercharger down on a plastic mat, there was a (possibly) PCV hose still attached to the back and it cracked at the elbow attached to the clip (where it clips onto the supercharger).

I cannot find this part name/number anywhere. I’ve searched at least 20 things and seem to not be hitting the mark. I’ve tried. All sorts of terms related PCV, supercharger, hose, return, etc.

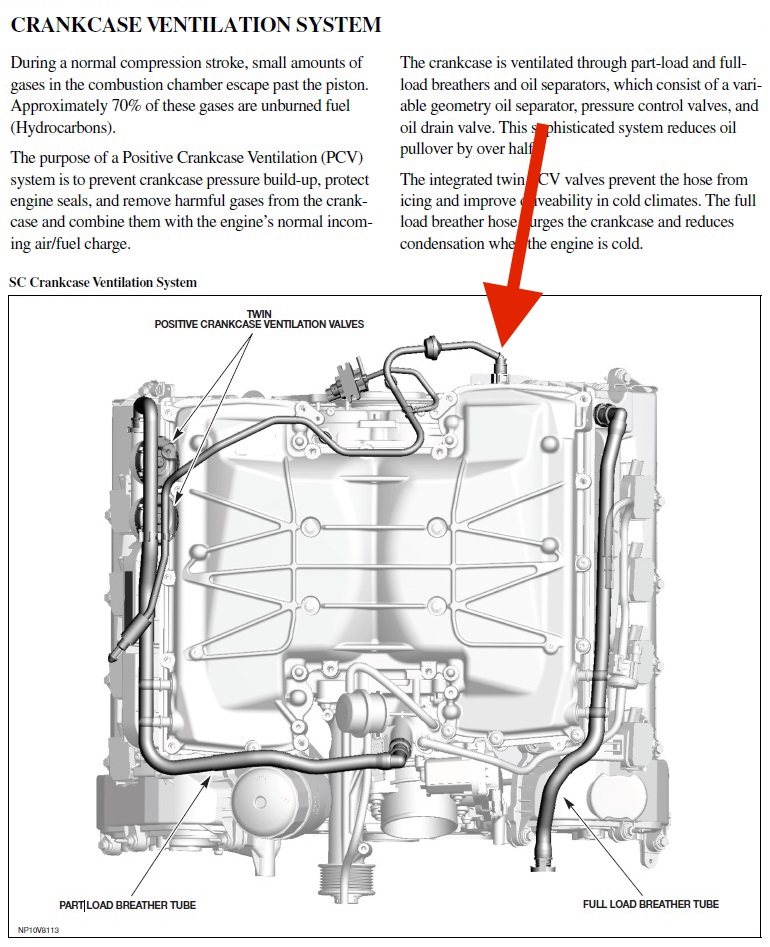

I’ve attached an image of the part I found (I also pointed the arrow to where I cracked mine). I’d show a picture of mine but it looks absurd as I’ve tried to rig something up (as it’s not a pressure-bearing hose, doesn’t carry fluids, etc) but ultimately, I’ll sell the truck or do an LS conversion before I take the supercharger off again so I might as well get the right part.

Any help identifying the name or part number would be greatly appreciated. If I can figure it out today I’ll try a couple scrap yards (there are a bunch close by and they’re massive) otherwise I’ll have to order and wait.


Last edited:

Al Pizzica

Full Access Member
Joined
Jul 9, 2019
Posts
87
Reaction score
40
Location
PA
FWIW pcv systems are very low pressure, like less than 5 lb, is it there any chance you can repair/glue it/ gaffers tape it, while you wait for a part?


cjm41

Well-Known Member
Joined
Jun 12, 2021
Posts
47
Reaction score
40
Location
San Diego, CA
FWIW pcv systems are very low pressure, like less than 5 lb, is it there any chance you can repair/glue it/ gaffers tape it, while you wait for a part?
Yeah I have some Permatex ultra black and a 1/4” connector. I was thinking of just junking the elbow and sticking the 1/4 connector with a little bit of permatex (it’s a hard line so can’t really use clamp). Other end just using a 1/4” PVC hose clamped to the spout on the supercharger.

Once I put the supercharger back on it’s not coming back off though. Not sure this can be replaced without pulling it.


txfromwi

Full Access Member
Joined
Dec 18, 2013
Posts
258
Reaction score
82
Location
2013 in Houston and the 2016 in Rochester NY
Sorry, I looked and could not find anything.
I am starting this project on Monday - your pain is my learning experience...

I suggest calling PalmBeachRover and speaking to Phillip. He is a marvel at finding part numbers...


cjm41

Well-Known Member
Joined
Jun 12, 2021
Posts
47
Reaction score
40
Location
San Diego, CA
Sorry, I looked and could not find anything.
I am starting this project on Monday - your pain is my learning experience...

I suggest calling PalmBeachRover and speaking to Phillip. He is a marvel at finding part numbers...

I may do that on Monday. Reality is, I’m going to just grab some fresh vacuum line from Home Depot and connect it. Aside from the quick release clip I don’t really see how it’ll be a problem.

I was a bit nervous pulling the supercharger, but it really wasn’t bad. I’m going to post a little write up of what I did/what I found/etc maybe tomorrow. Couple mistakes I made, couple of things I could have done differently to shave some time off the project.

I’m hardly the most knowledgeable guy around with the LR4 but the job is fresh in my mind so I’ll keep an eye out for questions from you.

I believe that’s a vacuum assist line. Try searching for a vacuum hose or the like.

Doesn’t seem to be it. I’m at a loss and it’s been a few days. I’m just going to rig it up and call it a day. The only downside I can see to this is… if this tube is supposed to be removable with the quick release clip (the little plastic buttons on the side you press and it releases over the ridge at the connect point) without removing the supercharger, may not be possible with the traditional/universal screw-tight hose clamps.

I really can’t wait days more at this point, my other car is off the road (modified V8 M3, came to CA from FL with no cats and haven’t decided what I’m doing about it now that my FL tags expired). I really would like to get this running tonight. At least get it to a point to start coolant shena****ns/bleeding.


timc930

Full Access Member
Joined
Nov 13, 2018
Posts
185
Reaction score
72
Location
Mt P SC
For future reference, another excellent source is Evan McCall at Reeves Import Motorcars in Tampa. He is excellent, and really knows the LR4's from a technical perspective as well as parts.


cjm41

Well-Known Member
Joined
Jun 12, 2021
Posts
47
Reaction score
40
Location
San Diego, CA
It's LR105285. The parts diagram is worthless. I replaced it when I did my supercharger shena****ns

Cool I think my rig job is probably going to be permanent. It’s not petty but it’s secure and can be removed easily. I’m just tired of spending $60 here, $80 there on this project. If I ever get access to a salvage LR4 for parts j could see grabbing that part. It’s totally accessible without pulling the supercharger.

Sidebar, I was considering replying to your thread just a couple mins ago. I am going to just drop my question here since you may have this answer. Not sure if it’s worth reviving an old thread, def not worthy of its own.

To better orient this for you, I’ll even use a picture of yours from your thread.

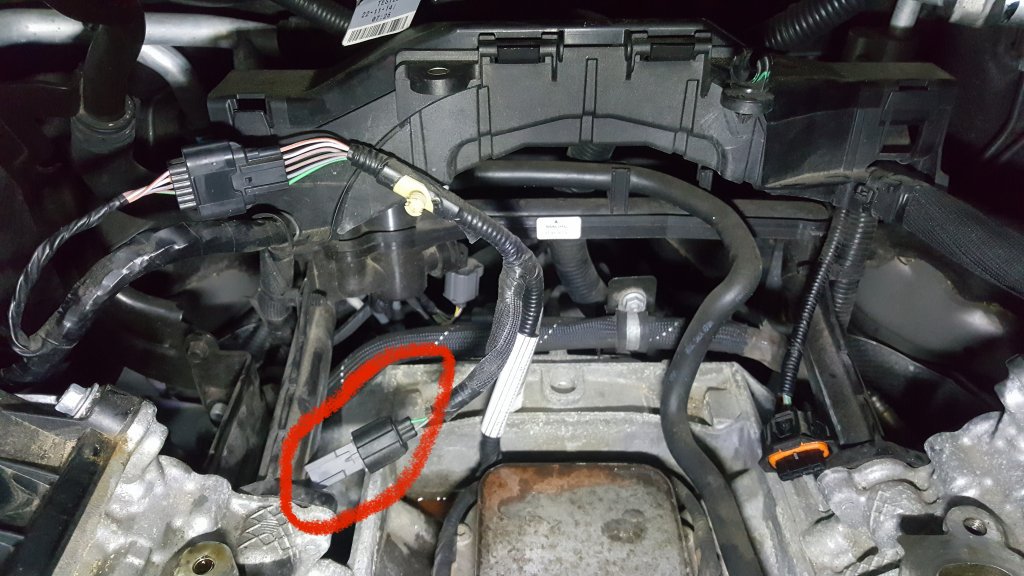

I’ve already put the supercharger back on. And while doing a once over I found the connector pictured/circled not connected to anything. I’ve used a borescope to get behind the supercharger, I’ve pulled wiring diagrams, I’ve watched other people’s videos, I’ve found pictures of the back and bottom of the supercharger for reference.

Since it’s not mentioned, I’m sure it’s like overly obvious and I’m just missing it…

Where does this connect to:



cjm41

Well-Known Member
Joined
Jun 12, 2021
Posts
47
Reaction score
40
Location
San Diego, CA
That may be the wire connector not connecting to anything you specifically mentioned.

I need to wrap this project up. I’m stating to run out of steam. But as focused as I was a few days ago.
