How to wire driving lights to high beam signal

Discussion in 'LR4' started by Brian Harrison, Jul 12, 2020.

  1. Brian Harrison

    Brian Harrison Member

    Posts:
    5
    Likes Received:
    0
    Joined:
    Feb 24, 2020
    Location:
    United States
    Just purchased Lazer Lamps for the grill on my 2016 LR4.

    Installation went well except for tying into the high beam signal.

    Looking at the engine from the front, fuse box/batter is on the left side. Wired into the battery for +/-. But, where do I pick up the high beam signal?

    There are a lot of wires for the HID lights.

    Anyone got a picture?

  2. mbw

    mbw Full Access Member

    Posts:
    1,586
    Likes Received:
    299
    Joined:
    Aug 8, 2010
    Location:
    Des Moines, IA
    [​IMG]

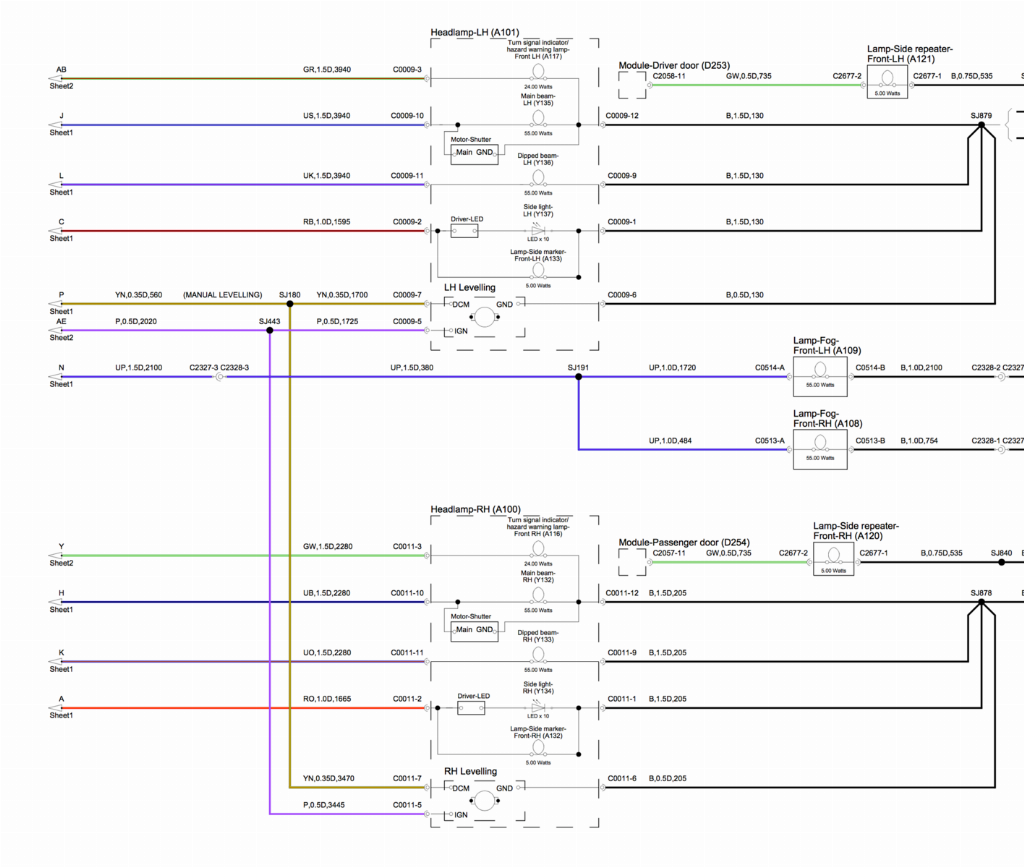

    it's C0011-10 on the right side light. That is what I used for my relay.

    [​IMG]

  3. Brian Harrison

    Brian Harrison Member

    Posts:
    5
    Likes Received:
    0
    Joined:
    Feb 24, 2020
    Location:
    United States
    Nice, thanks ... I'll try that and post results.

  4. Brian Harrison

    Brian Harrison Member

    Posts:
    5
    Likes Received:
    0
    Joined:
    Feb 24, 2020
    Location:
    United States
    @mbw

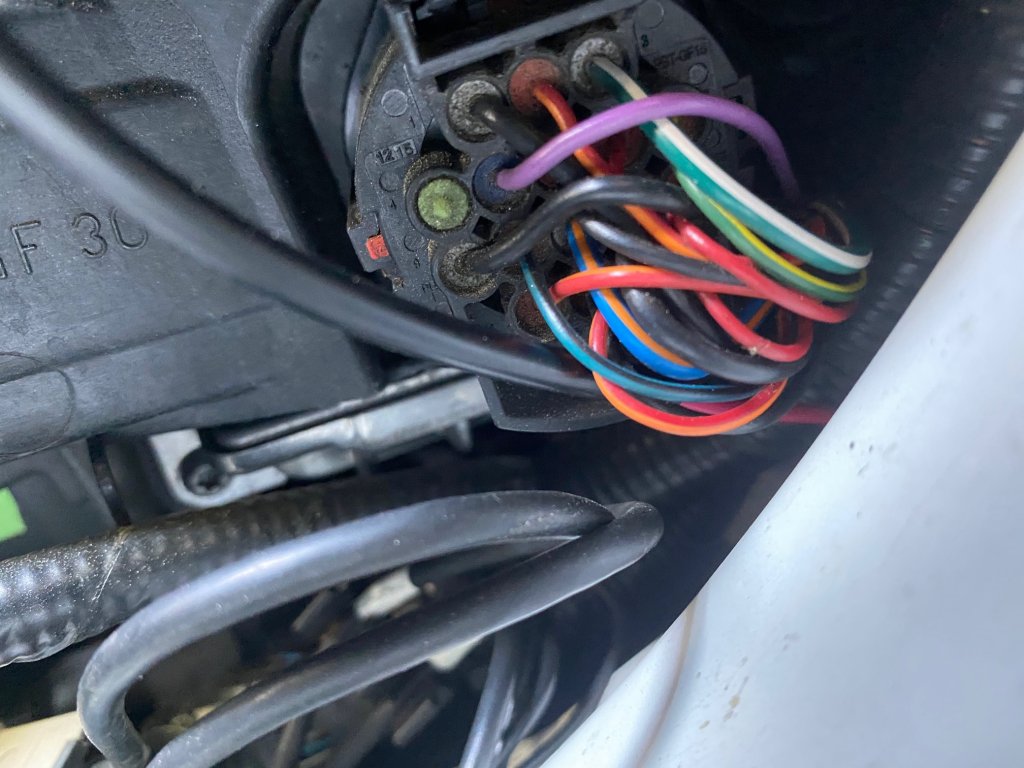

    I'm having a hard time tracking it down. Does that wire plug into the lower part of the headlamp like is shown in the image?


  5. mbw

    mbw Full Access Member

    Posts:
    1,586
    Likes Received:
    299
    Joined:
    Aug 8, 2010
    Location:
    Des Moines, IA

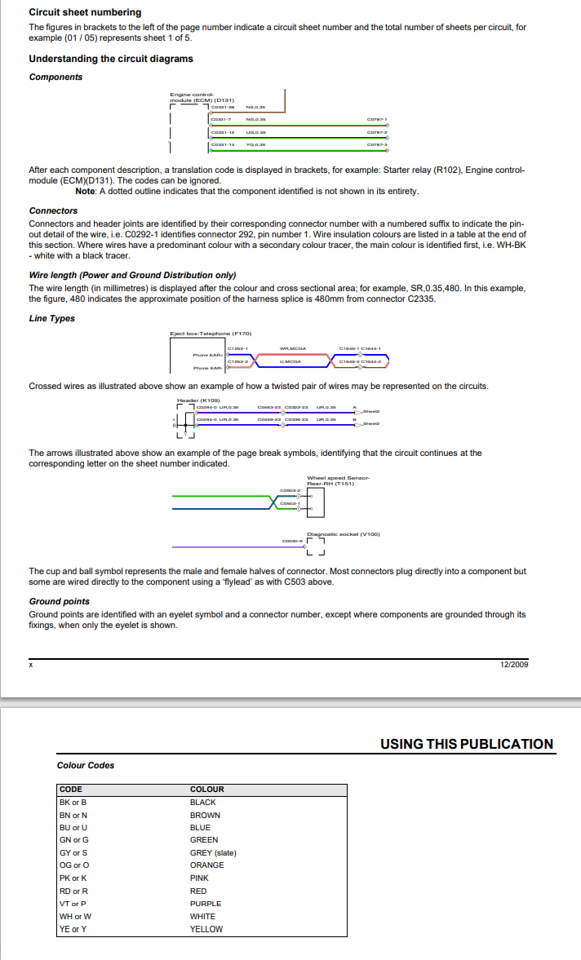

    yep, UB (BLUE BLACK) wire, 10th wire when counting from the top (connector up I think). Read the diagram and howto i sent above.

  6. Brian Harrison

    Brian Harrison Member

    Posts:
    5
    Likes Received:
    0
    Joined:
    Feb 24, 2020
    Location:
    United States
    Got it ... I was thinking that was it but I did not know how to read the wire plug properly. Blue/Black is 10th

    Many thanks! I'll try it out this evening and see how it works.

  7. Brian Harrison

    Brian Harrison Member

    Posts:
    5
    Likes Received:
    0
    Joined:
    Feb 24, 2020
    Location:
    United States

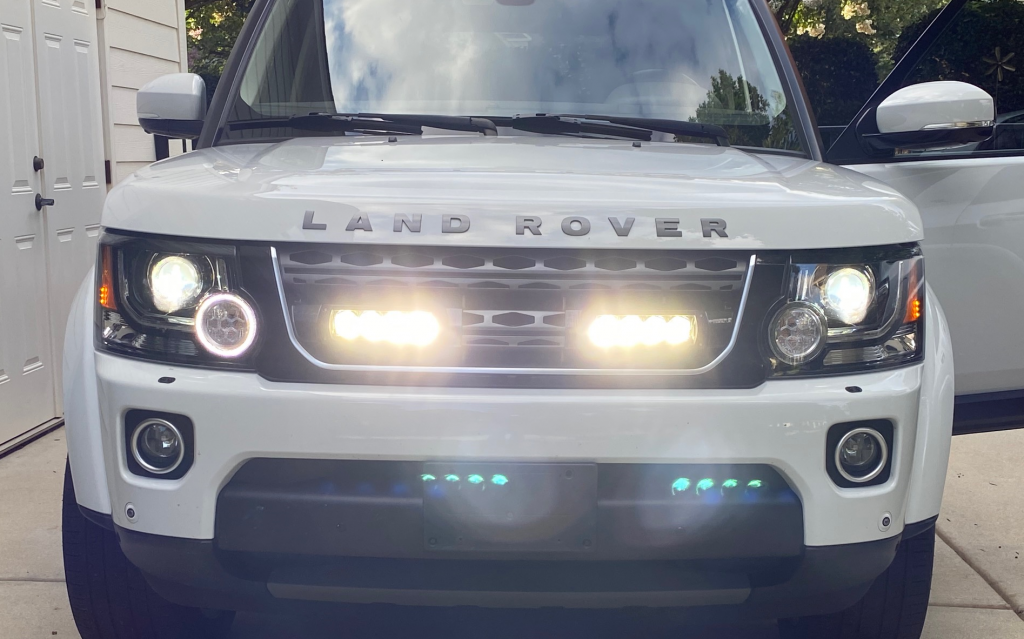

    Works great

  8. Carlos Jans

    Carlos Jans New Member

    Age:
    52
    Posts:
    2
    Likes Received:
    0
    Joined:
    Jun 5, 2019
    Location:
    Las Condes, Chile
    I bought this https://www.lazerlamps.com/canm8-highbeam for total light control.

    cheers
    Carlos
