Hi,
On my 2014 LR2 2.0L petrol L359, I noticed while driving the gear felt like slip, has approximately 86 K and I plan to change the transmission fluid. Any advise and link for the procedure and what type ATF fluid to use as the OEM is very expensive.
Thank you


Rover Range

Full Access Member
Joined
Jun 13, 2022
Posts
534
Reaction score
290
Location
Texas
The required fluid is Nippon AW-1.
Any compatible fluid will work. Toyota and Volvo also use this fluid.
You will need 7L

All you need to do is a drain and refill.
Remove the level and fill plugs.
Drain fluid.
Install the drain plug.
Fill fluid until it comes out the level plug.
Install level plug.
Add an additional 0.5 liters of transmission fluid.
Install fill plug

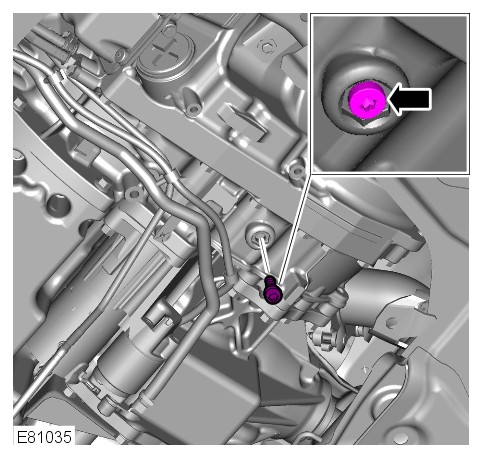

Fill plug.

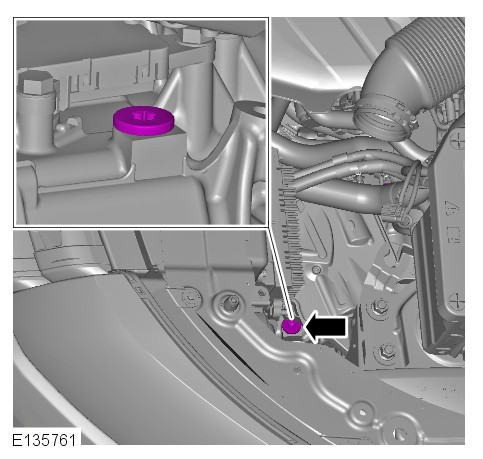

Fluid Level plug

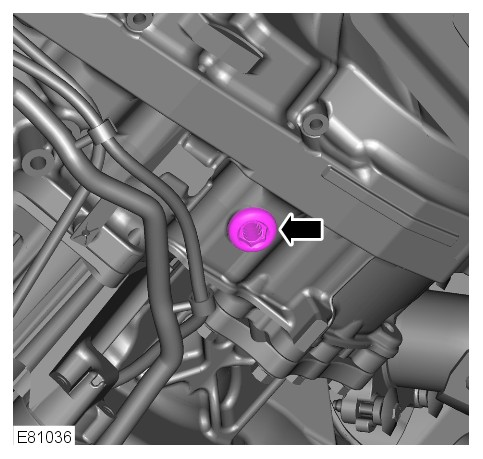

Drain plug


Last edited:

Ash khan

New Member
Joined
Jun 12, 2020
Posts
4
Reaction score
0
Location
usa
Thank you. I am planning to change the transmission fluid. Are there any torque specs for tightening the drain plug, fill plug and re-fill plug or just tighten enough by hand. Regards
