Remove and replace supercharger snout

[callipygian]

Does anyone know of a video on replacing supercharger snout? Even a pdf with visuals work.

Thx



[brad carlton]

Which engine? I've done that on a 4.2 SC Jaguar.



[georgekale]

Here some PDF files.



[georgekale]

OK



[ColorofKris]

Here some PDF files.

You just possibly saved my life!, I started this job removing the SC 2 days and was at a loss when I couldn't get the SC up and out, so I put it all back together. I want to try again in hopes to get to the isolator changed out. Thanks for posting the PDFs.



[georgekale]

Glad to help.



[wchamp]

I am currently doing this Job on my 2012 Sport. I have all the bolts off and the supercharger should come off but it is not budging? Has anyone ever have this issue?



[georgekale]

I am currently doing this Job on my 2012 Sport. I have all the bolts off and the supercharger should come off but it is not budging? Has anyone ever have this issue?

You don't have all the bolts off. Look at https://www.landroverworld.org/attachments/supercharger-pdf.9770/
Page 11, EGR plumbing bolts.??



[wchamp]

You don't have all the bolts off. Look at https://www.landroverworld.org/attachments/supercharger-pdf.9770/
Page 11, EGR plumbing bolts.??

How would you remove those? I have all 8 bolts removed as seen on page 5 after that it shows you can detach and remove the hoses under. Mine will not detach, it now wiggles but won't come off...



[Ayman]

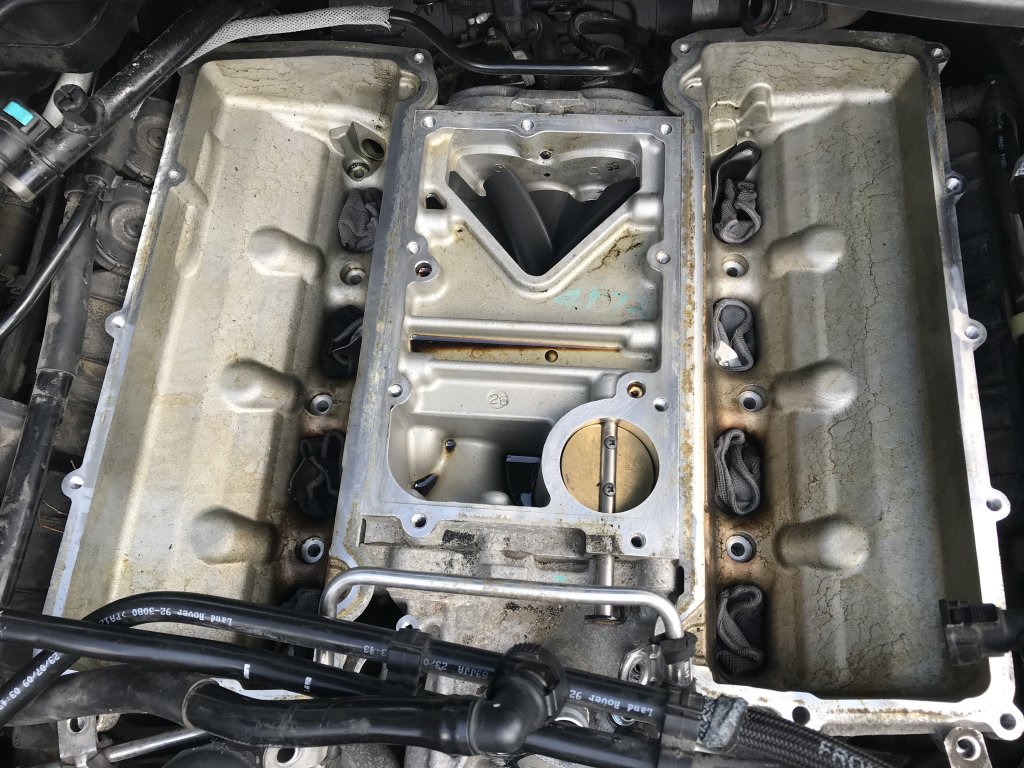

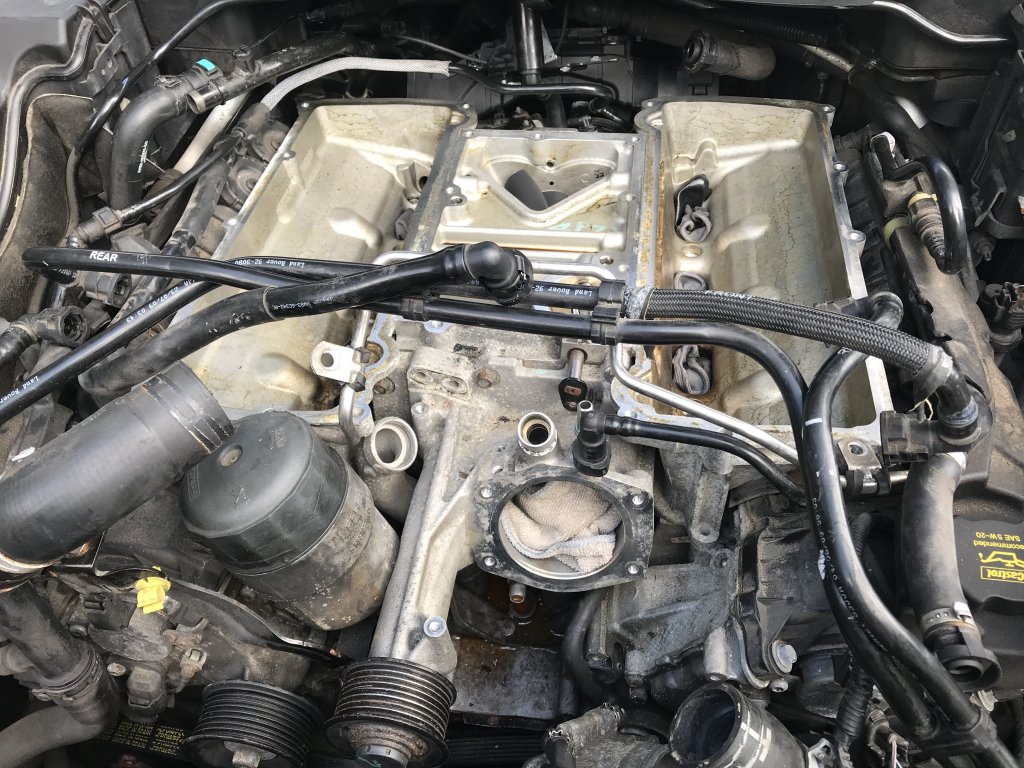

I'm exactly where wchamp is at. I have the top of the supercharger off my 2010 RR 5.0. I've removed the eight 10mm center bolts inside the supercharger, and have even removed two of the top EGR bracket bolts from the back of the supercharger. And still, it does not want to budge. Almost like it's still bolted in. Is it just stuck, or are there any other bolts that need loosening? I've attached a couple of pics of where I'm at. Thanks
