Is the only option for a reciever hitch on the '16 L405 thru Land Rover? when i search Google all i find are for the sport model which i believe is smaller in the back frame width..


brad carlton

Member
Joined
May 28, 2019
Posts
11
Reaction score
4
Location
Florida USA
I just bought a trailer bar from a junk yard. It was $375 for just the rebar. Search for rear bumper reinforcement complete and you may find a whole setup. I find the junk yards throw away all of the good parts and sell only the bumper bar, why I do not know.
I am told that you can use it but not to tow, just to haul stuff from the hitch like a bike rack, etc. Fort Myers LR sells pretty cheap and you can buy the support, foams, electric and lower trays which will run you about $675 including a bar for 375. when all said and done. About 1/2 compared to the stealership. There is no aftermarket solution available.

And yes I tow, but when its heavy, I use my 7.3 Diesel Excursion 4x4 w 12,500 cap.


brad carlton

Member
Joined
May 28, 2019
Posts
11
Reaction score
4
Location
Florida USA
Sport Hitch will NOT fit the L405.

You will need a VPLGT0083 bumper bar,
LR036694 support bracket and VPLGT0074 harness,VPLGT0097, VPLGB0154, LR090834- under tray, foams, bumper cover, then you will need some 50mm and 40mm bolts. The kit from LRV is around $1300, you can piece together for less.


DaveCap

New Member
Joined
Feb 6, 2020
Posts
3
Reaction score
0
Location
Staten Island, NY
Sport Hitch will NOT fit the L405.

You will need a VPLGT0083 bumper bar,
LR036694 support bracket and VPLGT0074 harness,VPLGT0097, VPLGB0154, LR090834- under tray, foams, bumper cover, then you will need some 50mm and 40mm bolts. The kit from LRV is around $1300, you can piece together for less.

I just ordered one on ebay that's listed for a sport. On the ad it says it fits both, sport and full size. I need it for my l405. I called roverspot in CA. They claim it will fit. He seemed pretty confident. He says there may be a slight mod or two, but only for the plastic cover. I'm not looking to pull anything heavy. Just a bike carrier or a tray in the back. I'm hoping you're wrong here. Any further input on this? Thank you in advance.


drkbrent

New Member
Joined
Dec 28, 2019
Posts
3
Reaction score
3
Location
Baton Rouge

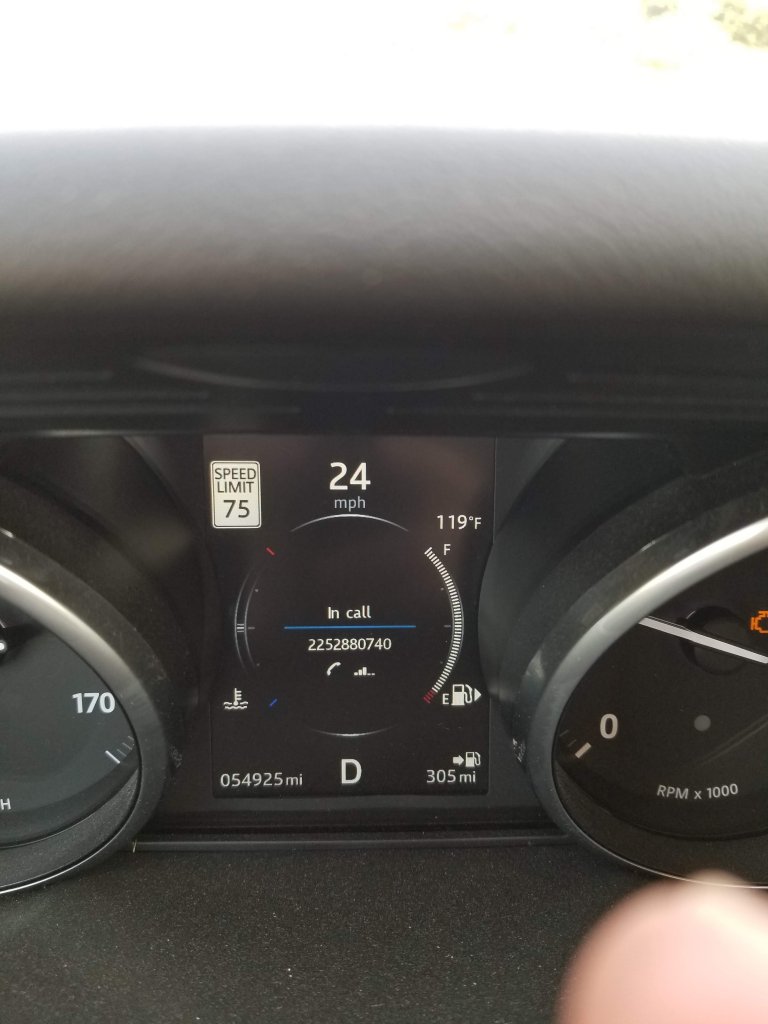

I tow with my ‘17 Sport diesel. 2 4wheelers and 2 dirt bikes is all I’ve ever pulled from LA to CO. I made the mistake of putting in 15w - 40 engine oil...kept overheating once I hit the mountains. I don’t believe the 40wt oil hurt anything...just thinking the sensors/electronics are so damn sensitive that the heavier flow of the oil caused the excess heat which triggered the electronics to throw a code! Haven’t seen the code since going back to the 30wt oil. I’m sure the 119 degree temps outside didn’t help!!


DaveCap

New Member
Joined
Feb 6, 2020
Posts
3
Reaction score
0
Location
Staten Island, NY
I just bought a trailer bar from a junk yard. It was $375 for just the rebar. Search for rear bumper reinforcement complete and you may find a whole setup. I find the junk yards throw away all of the good parts and sell only the bumper bar, why I do not know.
I am told that you can use it but not to tow, just to haul stuff from the hitch like a bike rack, etc. Fort Myers LR sells pretty cheap and you can buy the support, foams, electric and lower trays which will run you about $675 including a bar for 375. when all said and done. About 1/2 compared to the stealership. There is no aftermarket solution available.

And yes I tow, but when its heavy, I use my 7.3 Diesel Excursion 4x4 w 12,500 cap.

So after installing the bar, if you add the support bracket, can you then tow?


David Vanharen

New Member
Joined
Mar 25, 2021
Posts
1
Reaction score
0
Location
pennsylvania
DaveCap,

can you share any additional info on the reciever? I've been searching in vane for one. just need it, like you, for a bike rack on my 2014 range rover thanx Dave
