Water pump replacement - mystery plug

Localschauss

Active Member
Joined
Jan 9, 2022
Posts
32
Reaction score
8
Location
Saskatoon

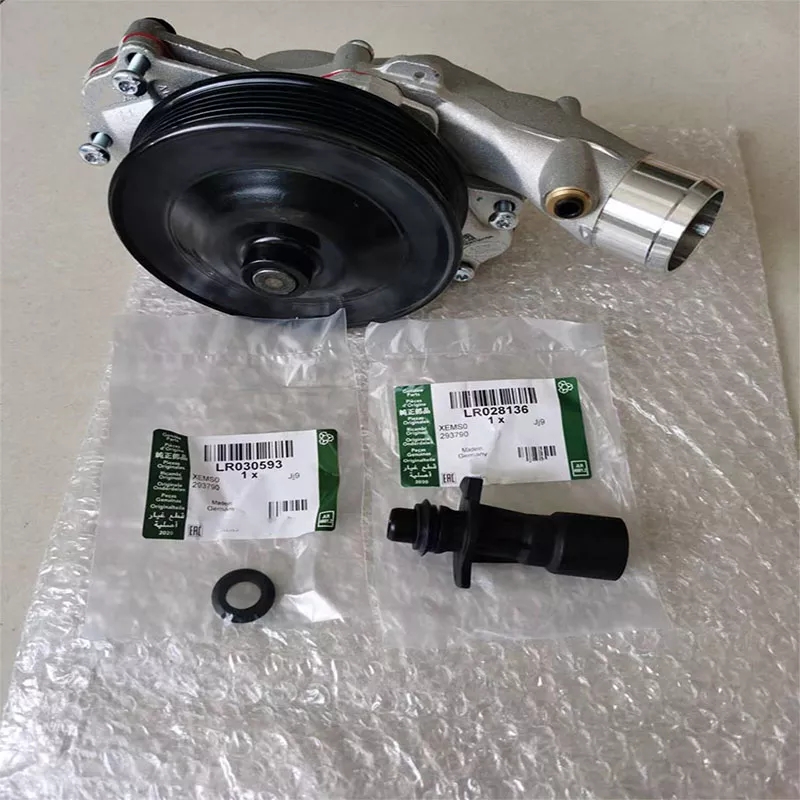

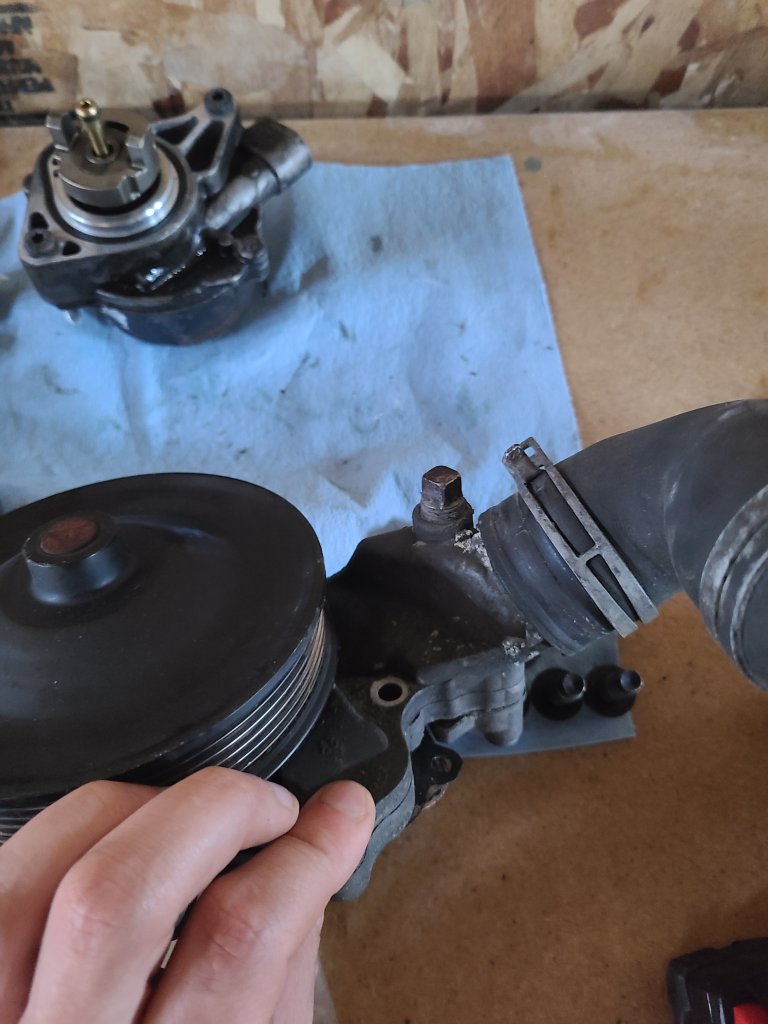

In the process of replacing the water pump on my lr4. The original pump has a plug vs the replacement which has an additional hook up. From what I read online for any of the replacement quides the reference hooking up a small elbow to that area. My radiator plumbing doesn't have anywhere that I could see this would go to. Do I just plug it? Or what do I need to make this work?


Attachments

  • 20220622_184813.jpg
    99.6 KB · Views: 16
  • -1083238238-1897394900.jpg
    358.3 KB · Views: 16
  • 20220622_184813.jpg
    99.6 KB · Views: 15

ktm525

Full Access Member
Joined
Mar 26, 2017
Posts
2,137
Reaction score
961
Location
alberta

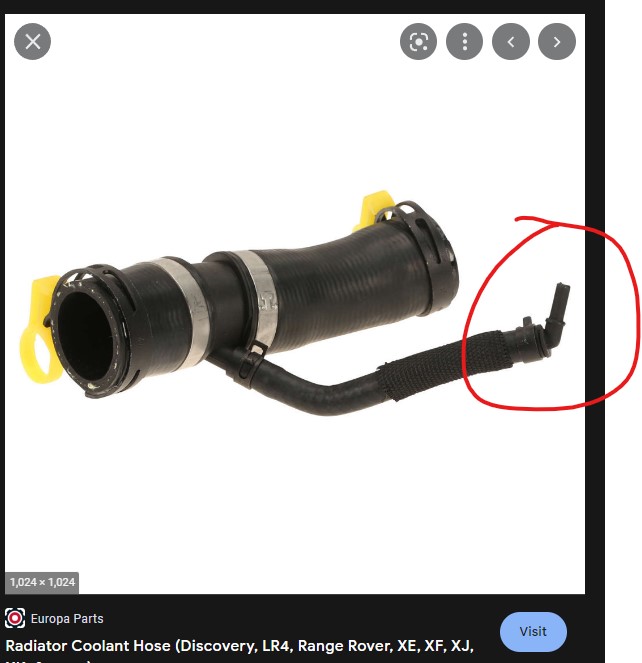

This is the new configuration. It ties into the rad hose. Only real way to get it is to order complete assembly. There is a brass version available. Did your old pump not have it??

Screenshot 2022-06-26 231112.jpg


Attachments

  • Screenshot 2022-06-26 231253.jpg
    Screenshot 2022-06-26 231253.jpg
    20.4 KB · Views: 7

Localschauss

Active Member
Joined
Jan 9, 2022
Posts
32
Reaction score
8
Location
Saskatoon
Thanks - my old pump just has a plug where this would connect. Any chance sebody has a diagram of how the coolant routing should be, on the older style?


ktm525

Full Access Member
Joined
Mar 26, 2017
Posts
2,137
Reaction score
961
Location
alberta

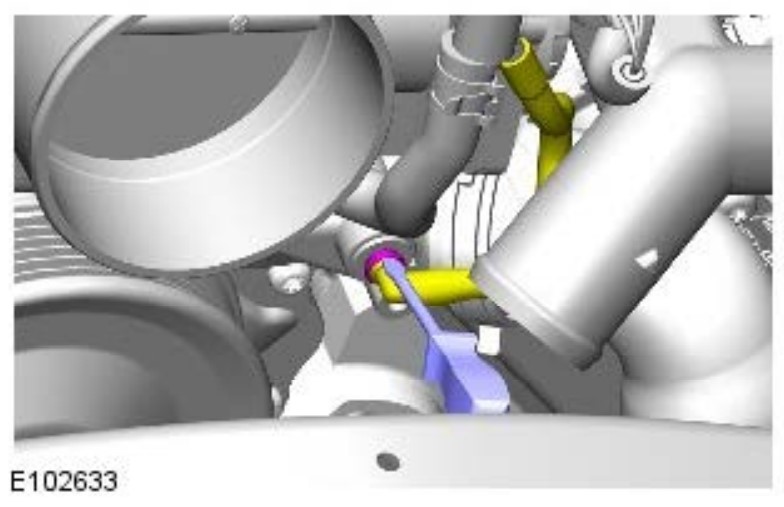

I couldn't find a real good picture in the manual. It is a bleed port with check valve that ties back into the regular system. I believe it prevents air buildup in the pump.

Screenshot 2022-06-27 082423.jpg


Localschauss

Active Member
Joined
Jan 9, 2022
Posts
32
Reaction score
8
Location
Saskatoon
This is the new configuration. It ties into the rad hose. Only real way to get it is to order complete assembly. There is a brass version available. Did your old pump not have it??

View attachment 22358

I couldn't find a real good picture in the manual. It is a bleed port with check valve that ties back into the regular system. I believe it prevents air buildup in the pump.

View attachment 22360


Thank you

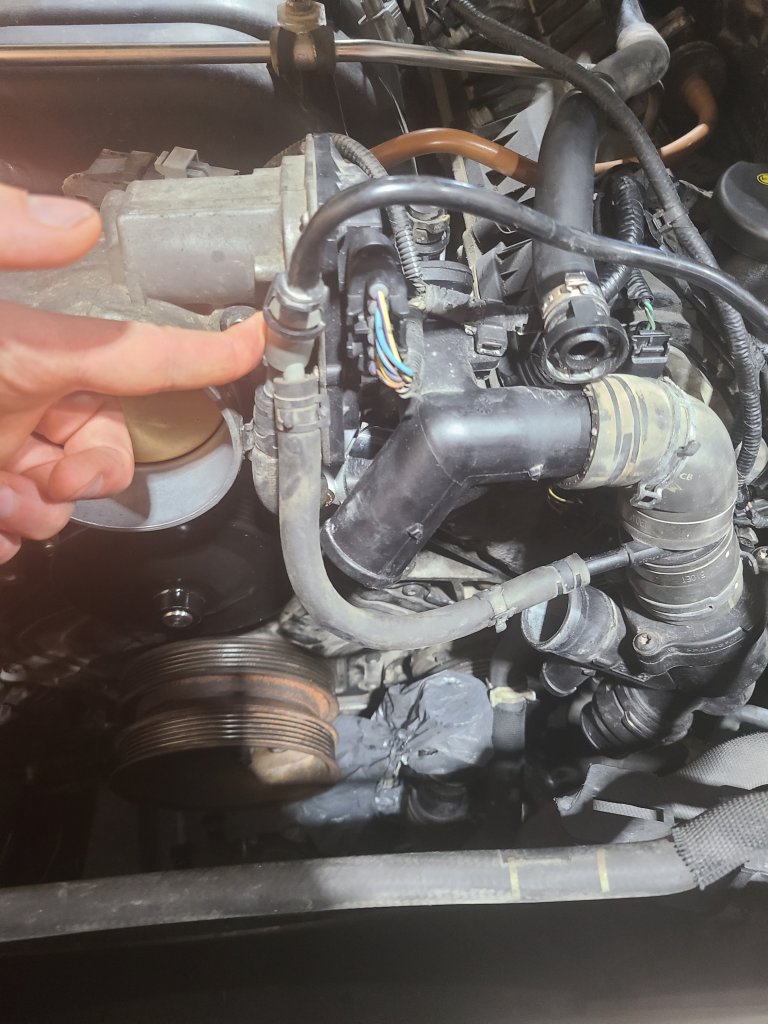

No my old pump just has a plug where this connection would go and routing doesn't appear to have anywhere that this bled port could connect.

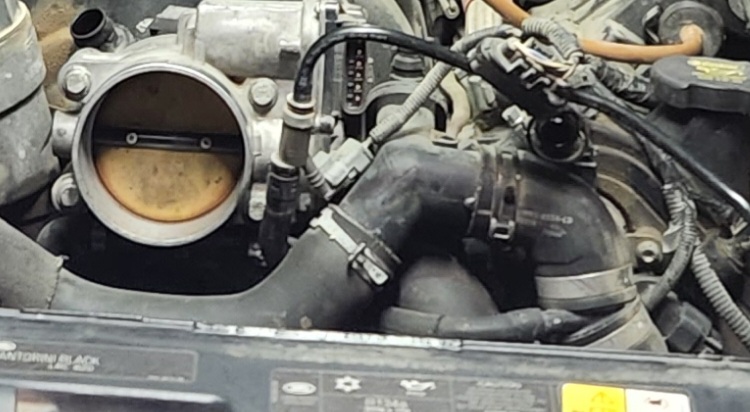

My y-conenctor had the top connect back to radiator and one leg conenct to the top of the thermostat and the other leg going to somewhere behind pump.


Attachments

  • 20220627_171257.jpg
    133.1 KB · Views: 11

djkaosone

'11 LR4 HSE LUX 5.0L V8
Joined
Oct 26, 2015
Posts
732
Reaction score
454
Location
SoCal

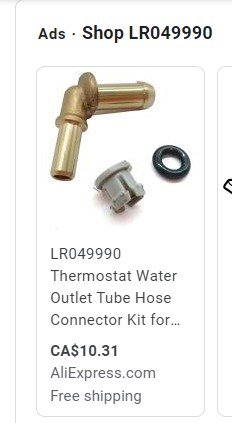

Funny, the gray y-pipe that bends down to the right is a dead y split. The hose is supposed to go to a black plastic n i p p l e that goes to the water pump. You can't just buy that piece, but someone recently made the brass replacement version.

In hind sight, whomever did that made a genius field repair.


Localschauss

Active Member
Joined
Jan 9, 2022
Posts
32
Reaction score
8
Location
Saskatoon
Funny, the gray y-pipe that bends down to the right is a dead y split. The hose is supposed to go to a black plastic n i p p l e that goes to the water pump. You can't just buy that piece, but someone recently made the brass replacement version.

In hind sight, whomever did that made a genius field repair.

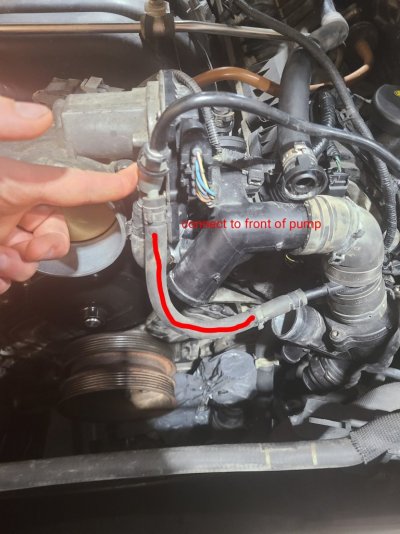

Great thank you, are yous ating reroute this hose to the front of the pump as per the attached marked up picture?


Attachments

  • iMarkup_20220627_195120.jpg
    134.4 KB · Views: 9

djkaosone

'11 LR4 HSE LUX 5.0L V8
Joined
Oct 26, 2015
Posts
732
Reaction score
454
Location
SoCal

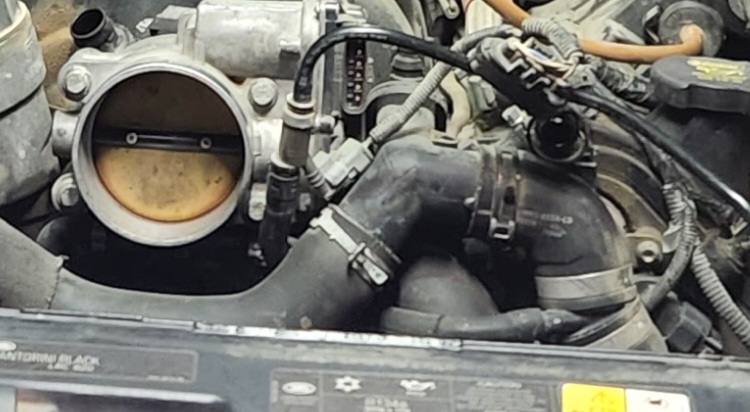

Exactly... here's an old pic of what it should look like.
