Zip tie timing quide and tensioner replacement

Localschauss

Active Member
Joined
Jan 9, 2022
Posts
36
Reaction score
11
Location
Saskatoon
Finally got the motivation this weekend to attempt at replacing my tensioner and quides on my 2011 with almost 300,000 km. It's defiently needed it.

Everything went well up to the point where it didn't. During my attempt at replacing the driver side chain tensioner, when I had the chain quite loose to get the chain quide in place I heard the chain jump one tooth on the crank sprocket which allowed the exhaust side cam sprocket to jump 4ish teeth. The intake one never moved, and didn't even appear to be under tension, must of been just the way the engine was rotated.

I had my position well mark and was able to get the cam variator back to its original spot by spining it back untill it alligned as well as getting the chain back to its original spot in crank sprocket. Engine spins without any mechanical interference and seems to track nice.

Now to the question based on the chain jumping serval teeth on the exhaust variator. Does that mess with the pre-tension. From my limited understanding as long as it back to where it was, which exhibited some spring resistance to get there, I would think it's okay but looking for your input.

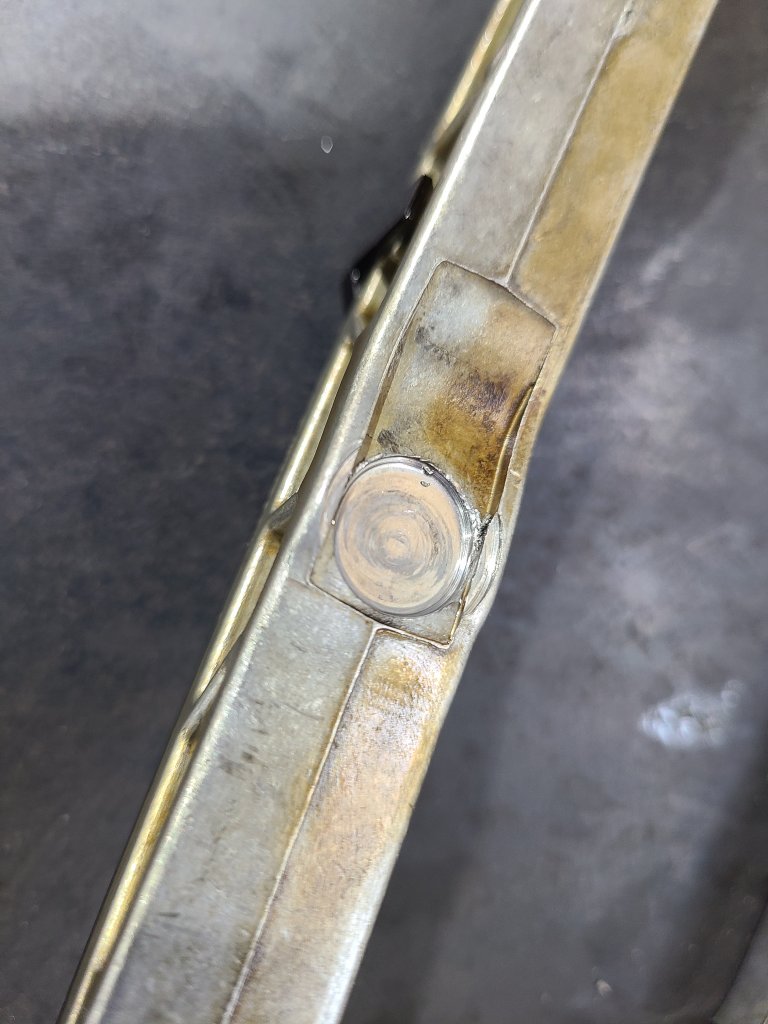

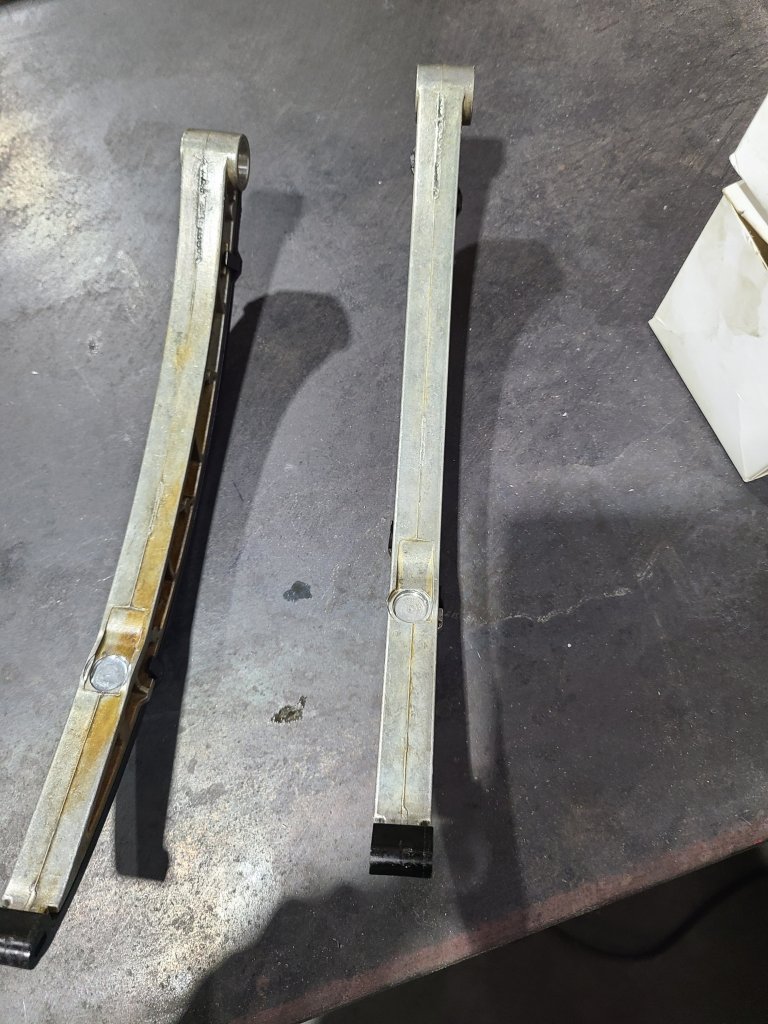

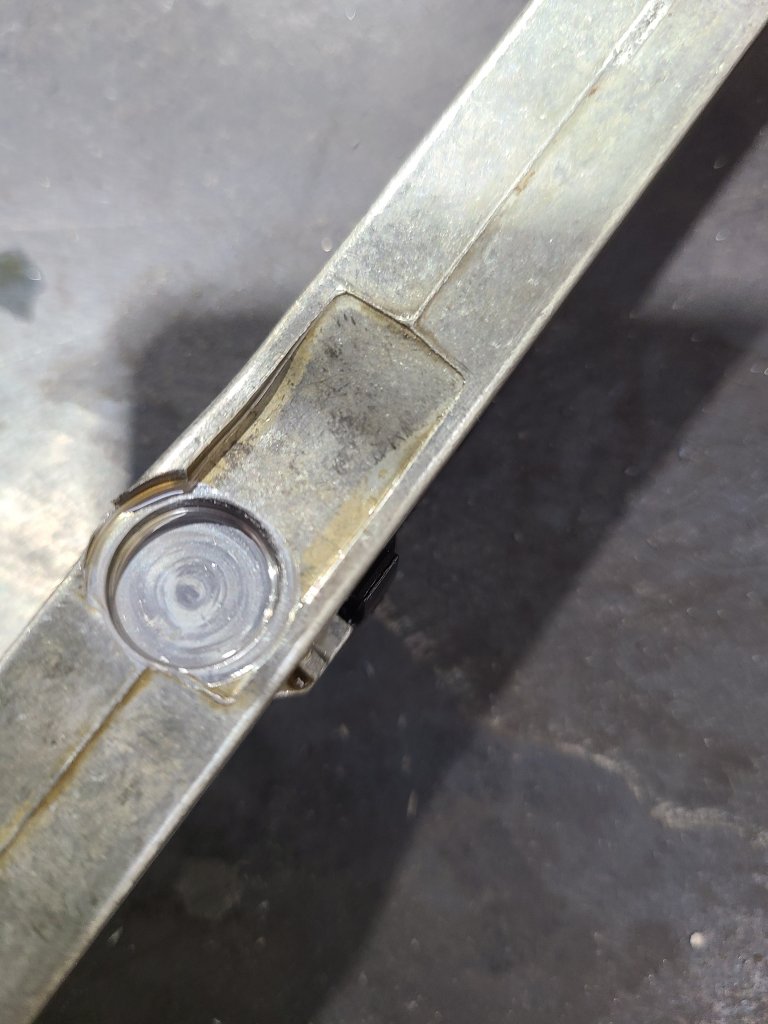

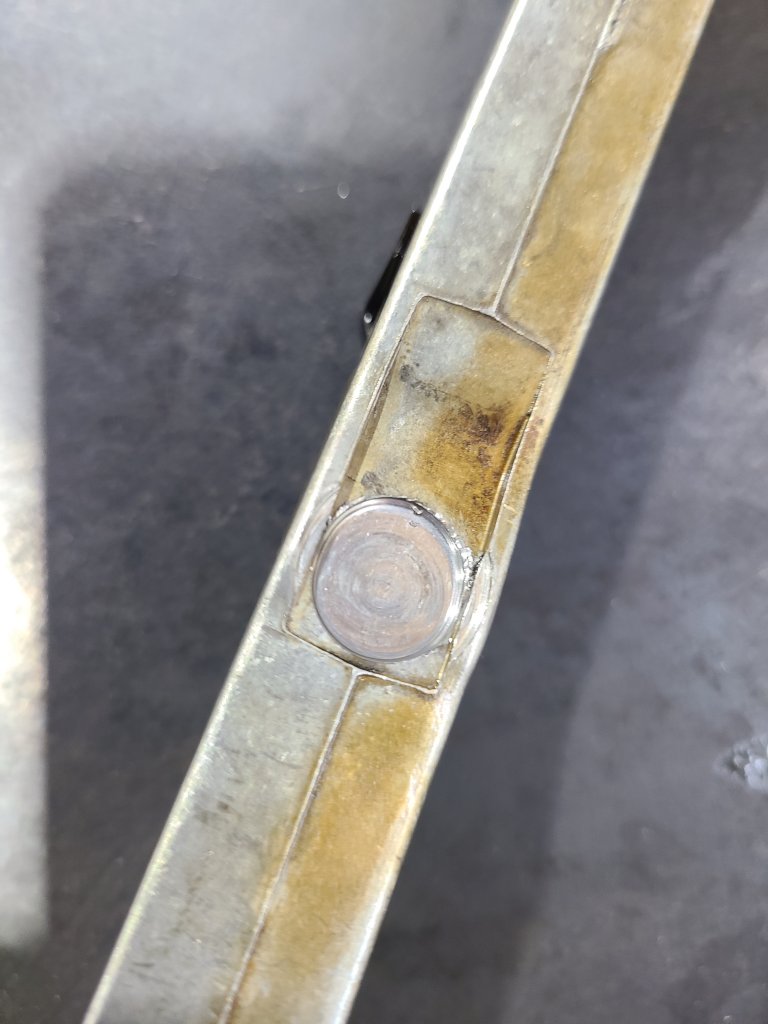

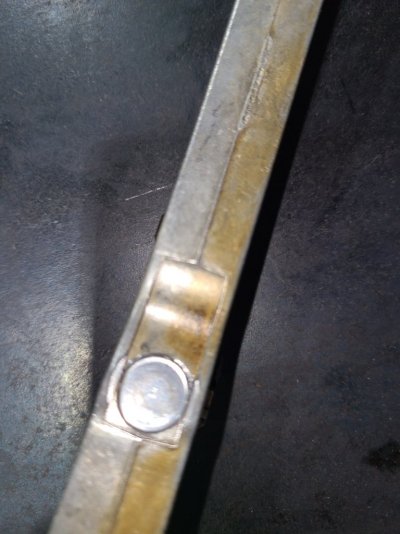

Pictures of the old quides attached, note the heavily worn in areas.


Attachments

  • 20220611_132104.jpg
    152.3 KB · Views: 33
  • 20220611_132100.jpg
    92.5 KB · Views: 36
  • 20220611_132054.jpg
    82 KB · Views: 34
  • 20220611_132052.jpg
    101.1 KB · Views: 33
  • 20220611_132048.jpg
    128 KB · Views: 32
Last edited:

djkaosone

'11 LR4 HSE LUX 5.0L V8
Joined
Oct 26, 2015
Posts
757
Reaction score
474
Location
SoCal
Check your bank 1 and bank 2 intake and exhaust cam gear position by degrees. If it's really off you'll see it. It's also vvti and "should" compensate a bit, but if it's way off you might hurt it in the long run.


Localschauss

Active Member
Joined
Jan 9, 2022
Posts
36
Reaction score
11
Location
Saskatoon
Thank you, they appear to be close.

Waiting on a water pump and a vaccum pump rebuild kit before I can get the engine in a position to fire it up.

Last edited:

ktm525

Full Access Member
Joined
Mar 26, 2017
Posts
2,168
Reaction score
974
Location
alberta
I may have missed it. Did you use the zip tie method to hold everything in place as a shortcut?


Localschauss

Active Member
Joined
Jan 9, 2022
Posts
36
Reaction score
11
Location
Saskatoon
Yes I did, which allowed the changing of the quides and tensioners. For changing the chain that method wouldn't work.

My quides as pictured above were it pretty rough shape, even in that shape the chain didn't take out any oil lubers or damage anything else.


Localschauss

Active Member
Joined
Jan 9, 2022
Posts
36
Reaction score
11
Location
Saskatoon
Good news - received all the remaining parts this week and bottomed it up. It runs nice a smooth, no chain noise, and no errors. Checked on the chain tension a few times trough the oil filler port and it's always nice and tight now.
