help regarding fan temp switch

[pete2528ca]

Hey all.

I was hoping my first post wouldn't be a techincal question, but I need some help.

I am trying to find out where the Fan Temperature Switch would go in a 97 Discovery. According to my shop guide it says it goes in the Thermostat housing, however there is nothing there. The housing isn't like the one in the diagram. Is there somewhere else it could go? My auxilary fans are not coming on, and I was told to change out the switch.

Thanks in advance.

Pietro



[joey]

Which guide are you looking at that is wrong?



[greg409]

Hey all.

I was hoping my first post wouldn't be a techincal question, but I need some help.

I am trying to find out where the Fan Temperature Switch would go in a 97 Discovery. According to my shop guide it says it goes in the Thermostat housing, however there is nothing there. The housing isn't like the one in the diagram. Is there somewhere else it could go? My auxilary fans are not coming on, and I was told to change out the switch.

Thanks in advance.

Pietro

Are you talking about the fans in front of the radiator? (a/c condenser fans)
They run when the a/c is on.
The activation switch mounts to the condensor tubing.

The stock engine fan is not electric and has no thermostat switch. (A viscous clutch coupling)

When I installed twin electrics in place of my mechanical fan, I put the thermostatic switch probe in the fins of the radiator driver's side top.

luck,greg



[pete2528ca]

yes the ones in front of the rad. they used to stay on when it was hot out after i shut down the truck to cool the engine. they haven't for about a year now and really just noticed it.



[joey]

Could be they are bad... try hot wiring them...



[joey]

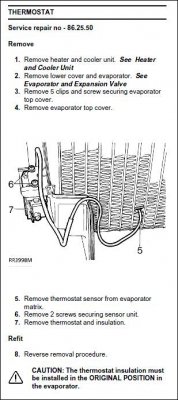

I May be wrong here, but isn't the temp for the fans here:
