Rear Locker

Discussion in 'LR4' started by ZR1Gerhardt, Dec 24, 2018.

  1. ryanjl

    ryanjl Full Access Member

    Posts:
    1,774
    Likes Received:
    890
    Joined:
    Dec 31, 2015
    Location:
    KCMO
    Cool. So, on that disco3 link, he talks about running power to the ECU using a cable he had to run himself. Did you have to do that on your LR4?

  2. ishapiro

    ishapiro Member

    Posts:
    22
    Likes Received:
    6
    Joined:
    Dec 2, 2014
    From what I recall, no. Everything was already on the harness. But I did it more than 3 years ago so might be missing some minor details.

    Sent from my SM-N960W using Tapatalk

  3. Willi

    Willi Member

    Age:
    33
    Posts:
    16
    Likes Received:
    5
    Joined:
    May 2, 2019
    Location:
    Brazil
    sorry for necro-ing a post, but the wiring that plugs into the rear diff motor is already there? When I lifted the cab on mine, I couldn't find a connector or anything that looked like it plugged into the diff if it had the HD package. I really want to install a locking rear diff and I already checked what ECU would fit, but I'm worried about having to do the wiring to plug on the diff motor itself.
    Any info on this? Will I have to run more wires from the diff ECU to the rear diff itself?

  4. ishapiro

    ishapiro Member

    Posts:
    22
    Likes Received:
    6
    Joined:
    Dec 2, 2014
    The wiring is mostly there. The chassis harness had all the necessary lines on mine. And the only thing I was missing is the short section that plugs into the chassis harness on one end (rectangular connector) and the diff (round connector) on the other end. I sourced that special connector and the bits from an RRS harness of ebay. They are similar(or same) as lr3, lr4.



    Sent from my SM-N960W using Tapatalk

    Willi and Londonese like this.
  5. ishapiro

    ishapiro Member

    Posts:
    22
    Likes Received:
    6
    Joined:
    Dec 2, 2014

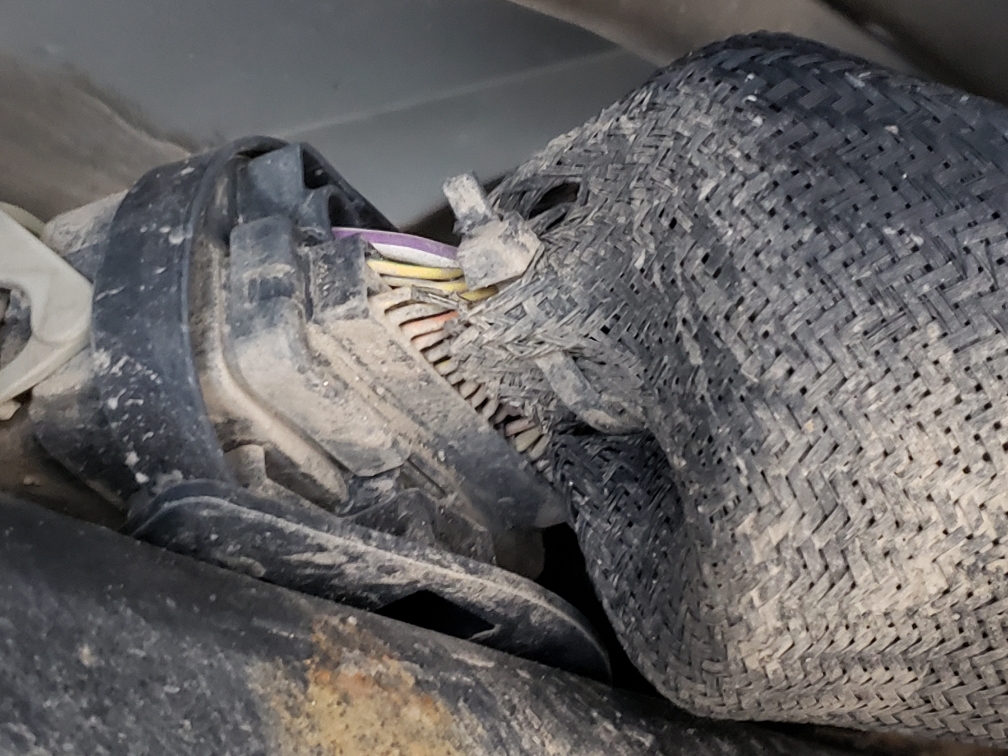

    This is the photo of the rectangular connector on the rear left side above the exhaust pipe and above the spare tire. [​IMG]

    Sent from my SM-N960W using Tapatalk

    Willi likes this.
