Change out differential and transfer case fluids

Discussion in 'LR4' started by RBA, Jan 20, 2014.

  1. RBA

    RBA Full Access Member

    Posts:
    178
    Likes Received:
    7
    Joined:
    May 23, 2010
    Has anyone seen any write ups on how to change the differential and transfer case fluids on the LR4?

    Umberto's engine oil service video gave me the courage to do the engine oil and I'd like to do more DIY maintenance.

    Cheers!

  2. eljefe

    eljefe Full Access Member

    Posts:
    250
    Likes Received:
    7
    Joined:
    Mar 13, 2013
    subscribed

  3. bushway9172

    bushway9172 Full Access Member

    Posts:
    491
    Likes Received:
    21
    Joined:
    Mar 25, 2013
    subscribed

  4. RBA

    RBA Full Access Member

    Posts:
    178
    Likes Received:
    7
    Joined:
    May 23, 2010
    I guess no luck. I have the digital service manual so I'll try to write something up myself.

    Wish me luck.

  5. RBA

    RBA Full Access Member

    Posts:
    178
    Likes Received:
    7
    Joined:
    May 23, 2010
    ok boys...step one complete...

    I went to the dealer today and picked up 2 quarts of oil for the transfer case, 2 quarts of oil for the rear diff with locker and 2 quarts for the front locker. Anyone care to guess how much it cost?? $200...I kid you not. Freaking hilarious....I think I did a double take when the cashier told me.

    Anyway, I'll study up tonight and hopefully get it done tomorrow.

  6. umbertob

    umbertob Full Access Member

    Posts:
    2,612
    Likes Received:
    249
    Joined:
    Apr 18, 2006
    Location:
    California, USA
    I know the rear locking diff oil is absurdly priced, didn't think the remaining ones would be that expensive though. Oh well, at least you don't need to replace those fluids every 7500 miles... Looking forward to a full pictorial tomorrow night. :biggrin:

  7. epiclr4

    epiclr4 Full Access Member

    Posts:
    616
    Likes Received:
    7
    Joined:
    Jan 3, 2014
    I too am looking forward to your DIY write up. This will be something I would like to be able to do on my own.

    I had done differentials in my JKUR and those were a cake walk. I figure the LR4 might not be as easy.

  8. Finlayforprez

    Finlayforprez Full Access Member

    Posts:
    3,379
    Likes Received:
    46
    Joined:
    Feb 8, 2011
    I can't wait to read about your experience.

  9. RBA

    RBA Full Access Member

    Posts:
    178
    Likes Received:
    7
    Joined:
    May 23, 2010
    Well, I finally had the time to get underneath the truck and do the work.

    Nothing too complicated just a bit time consuming. I think it took me about 2.5 hours and it could probably be done quicker once you familiarize yourself with the process.

    I purchased all the fluids from my local dealer. No issues in picking it up, unlike the engine oil.

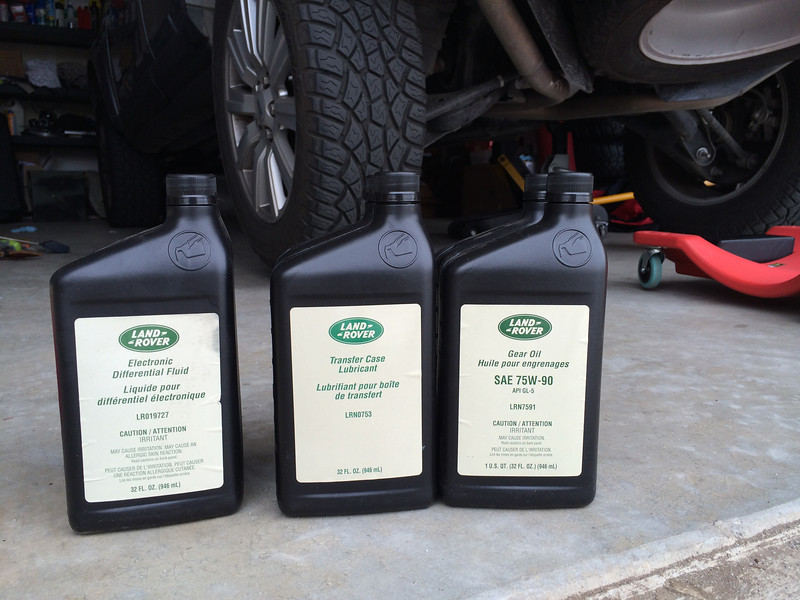

    [​IMG]

    I decided to do the front and rear differential and the transfer case.

    I started with the rear diff by jacking up the rear and placing jack stands under the frame.

    [​IMG]

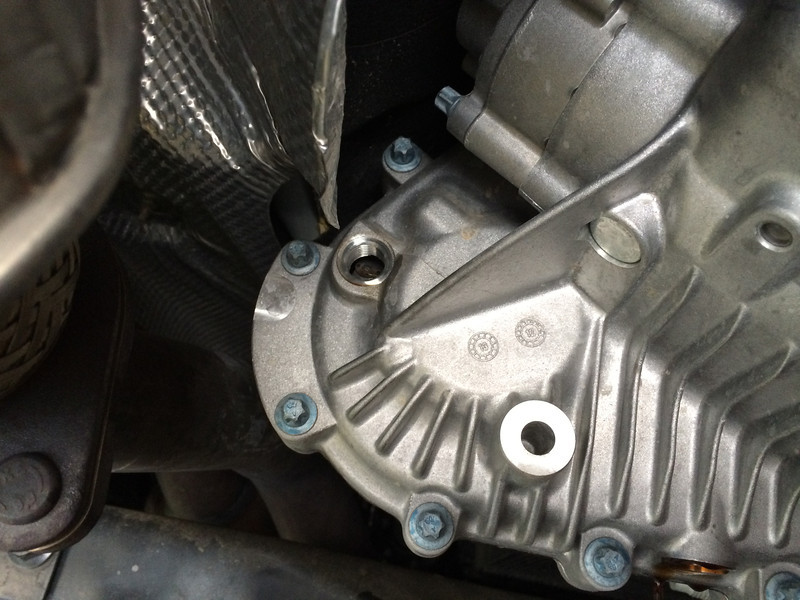

    The drain plug is right underneath the pumpkin and the fill hole is passenger side of the housing. Draining the oil is simple enough but filling it back it is difficult because of the lack of clearance and the small fill hole. So I purchased transfer pump for under $10.

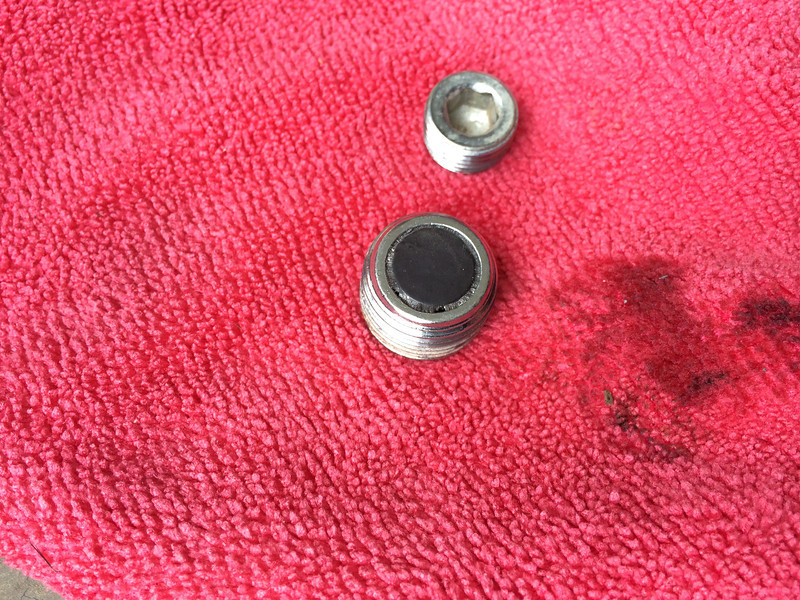

    I'm not sure what to make of the gunk found on the drain hole plug.

    [​IMG]

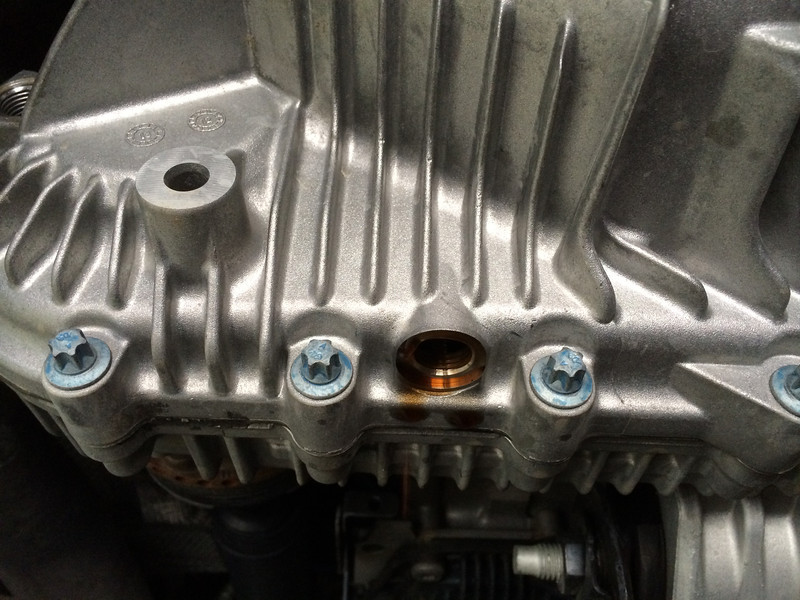

    I can wipe the gunk off and see a bit of shavings.

    [​IMG]

    Has anyone seen this type of gunk before? I only have 26K miles on the truck.

  10. RBA

    RBA Full Access Member

    Posts:
    178
    Likes Received:
    7
    Joined:
    May 23, 2010
    The transfer case was a piece of cake.

    [​IMG]

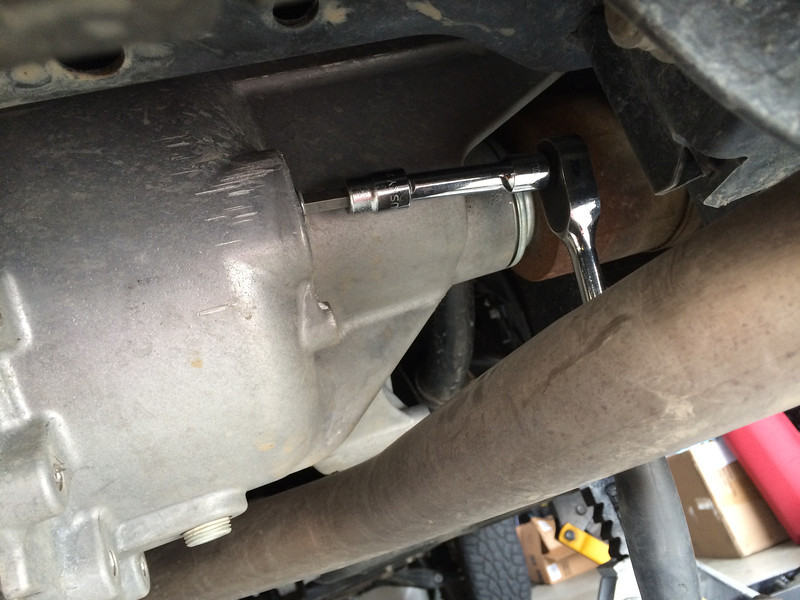

    The drain plug is right underneath and the fill hole is above on the drivers side. It's still tough to fill so I used a hand pump to push the oil in.

    [​IMG]

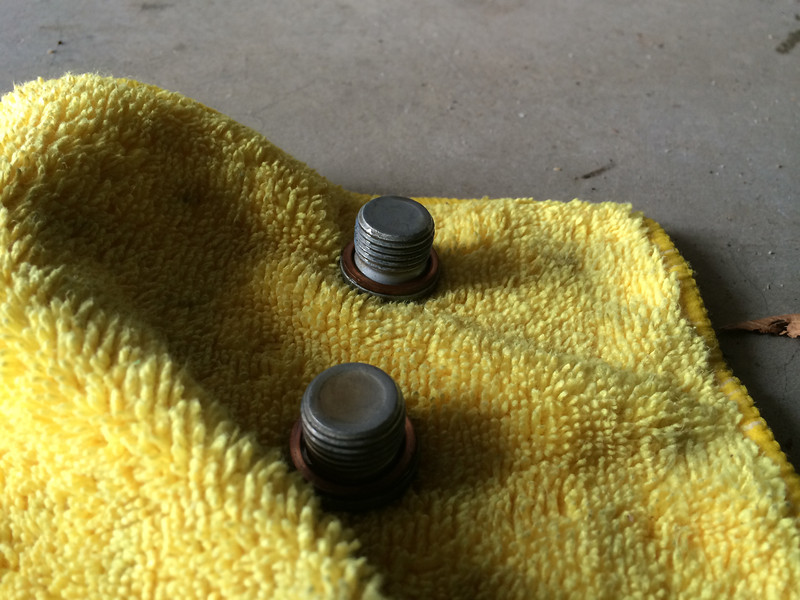

    The plugs were nice and clean.
    [​IMG]

    The consistency of the transfer case fluid is closer to water than thick gear oil.
