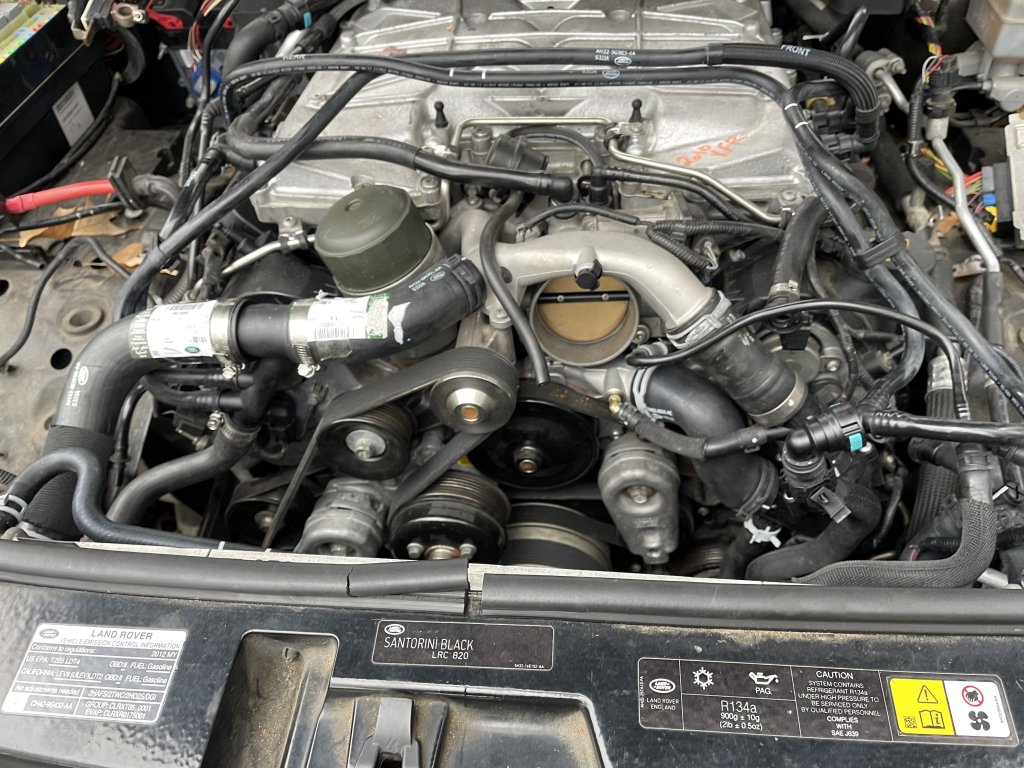

Sorry for all the delays guys, but I've finally had a free moment to get back to NJ to work on the car.
Here's the "bads;"
- I had forgotten about the fact that the SC engine has a standard threaded cooling fan. After about 20 minutes of trying to swing the NA fan on counter clockwise I realized my mistake. (ok, maybe it was only like 2 minutes, but it felt like 20!). Anyway, I ordered a used fan from eBay...just couldn't stomach the $600 price tag for a new one. It's due in later this week. I'm not sure whether it'll arrive before I head back south or not. Worst case, there's always the next trip up here.
-I realized I bricked the engine computer I installed for the SC engine, so I ordered another used one....also off of ebay. (SMH)
Here's the "goods;"

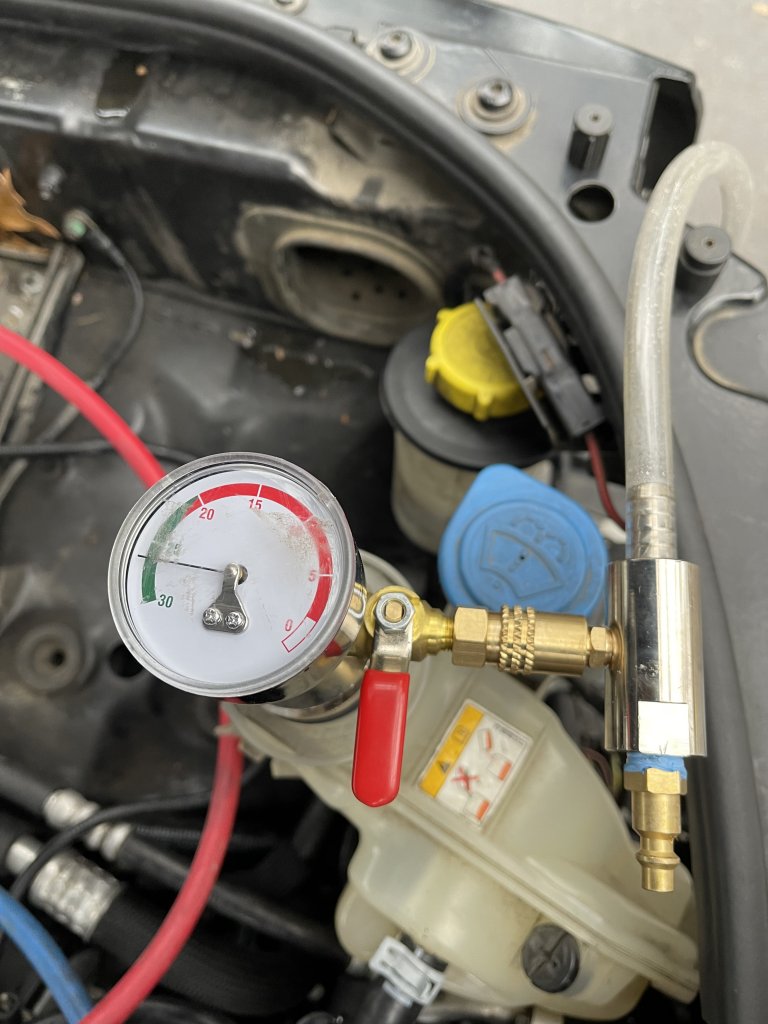

-I got the cooling system all filled up and ready to go.

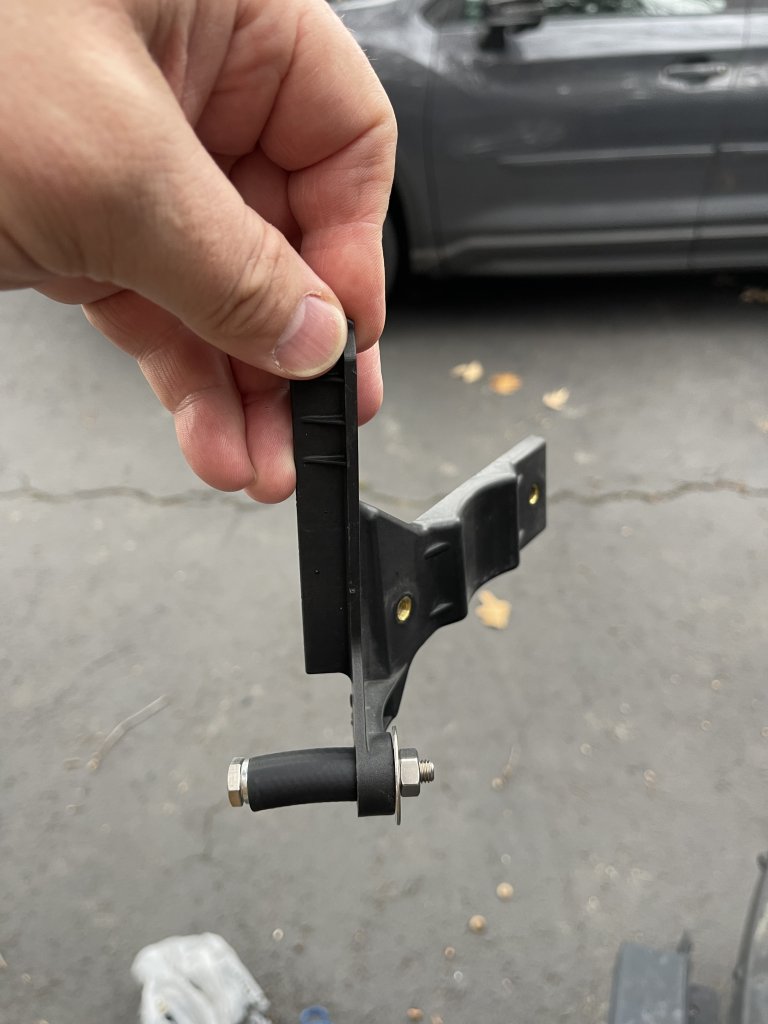

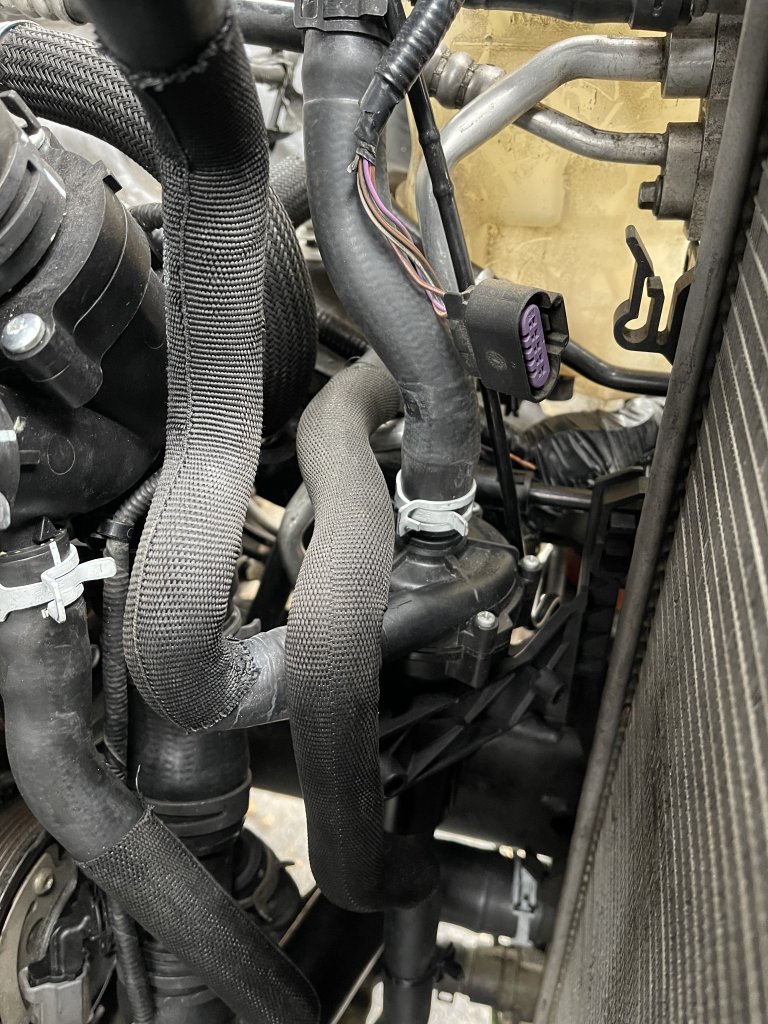

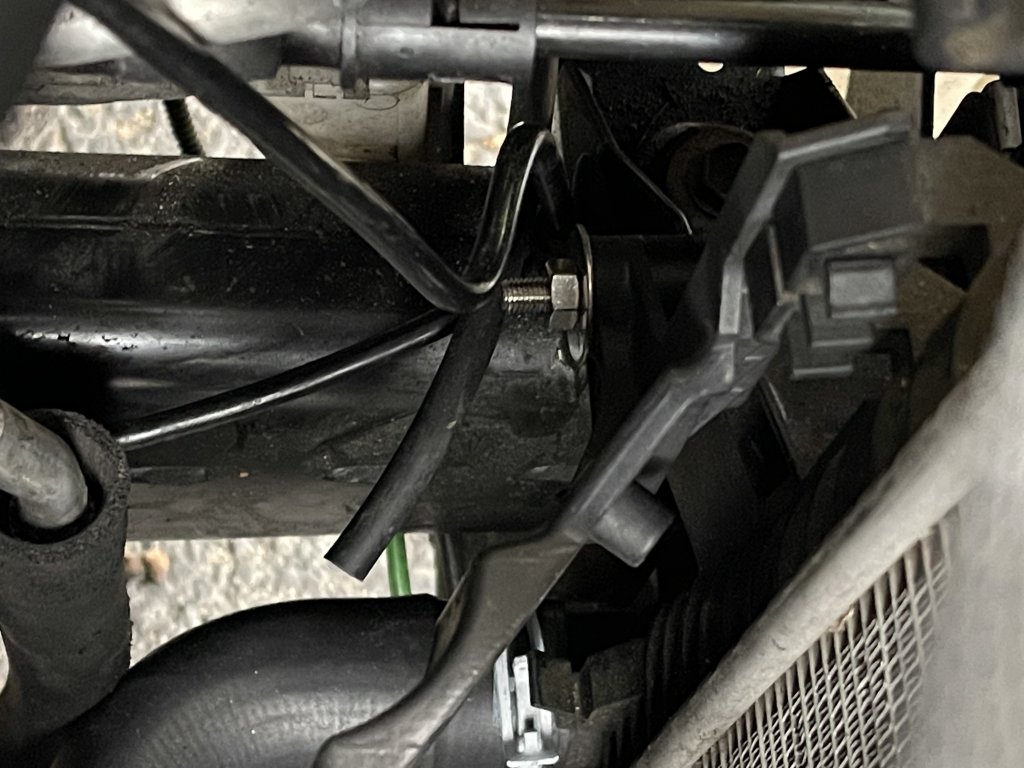

-I was able to run the wires for the SC intercooler pump. This included adding the grounding wire to the PCM connector as well as the relay into the CJB under the hood. Thankfully, the main power supply was already in the CJB, so all I had to do was run the power wire from the pump to the other side the the relay, add the ground trigger from the relay to the PCM, add the the power supply for the trigger wire by soldering it to the correct wire in the harness, and finally, attache the ground to the grounding point. FYI, I have a complete used RRS SC engine bay harness, and my original plan was to swap the whole harness out, but a lot of the connectors had some corrosion on them, and I changed plans and simply ran the new wires for the intercooler pump. I took a few pics to show how to disassemble/assemble the PMC connector, the ground points etc...

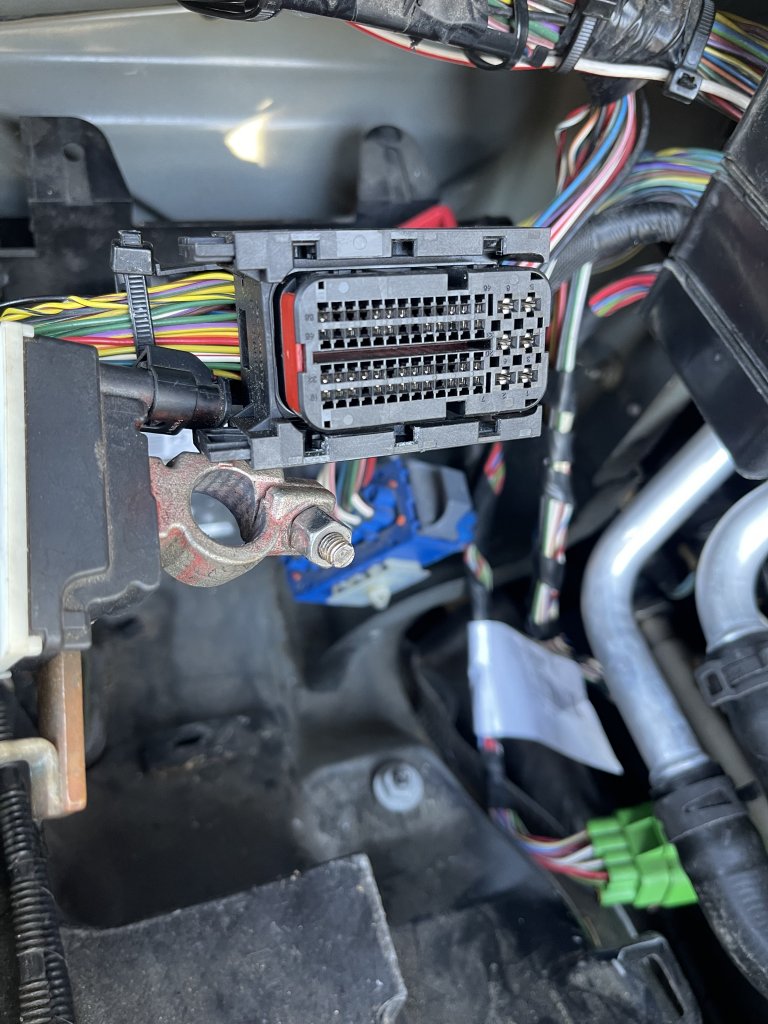

Here's the back of the connector, as you can see, there's a little brown plastic "cover pin" in place to protect the connector. I used a tiny screw driver and popped it right out.

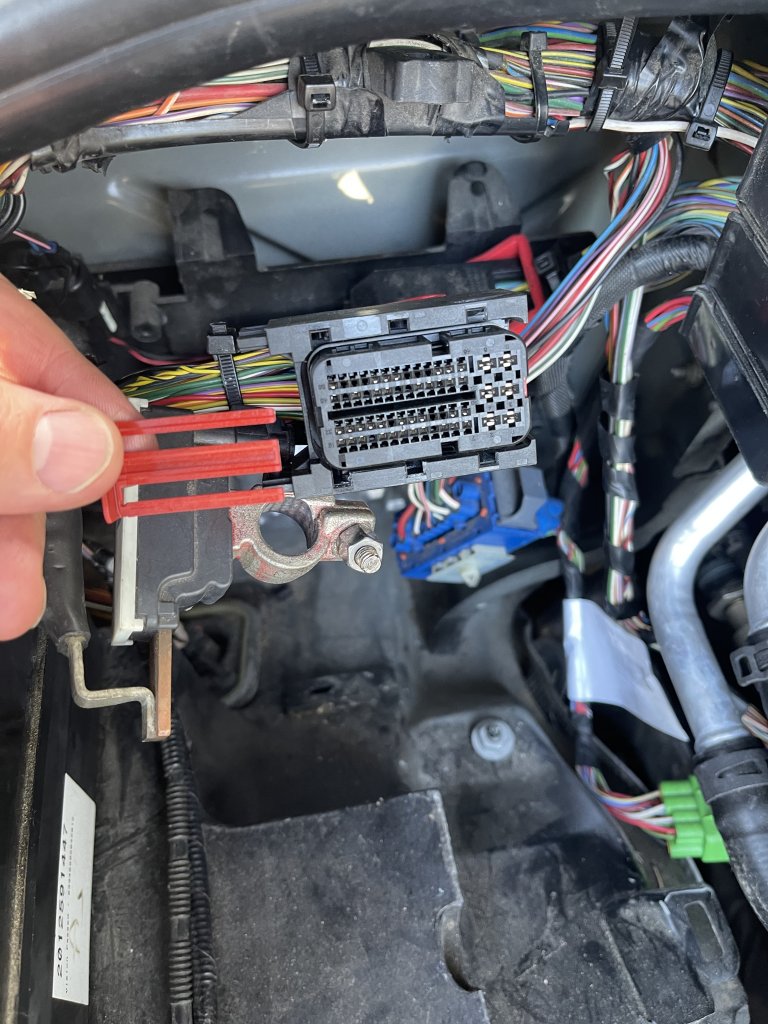

I almost forgot, before you can pull the brown pin out, you need to slide the red retaining clip out of the connector:

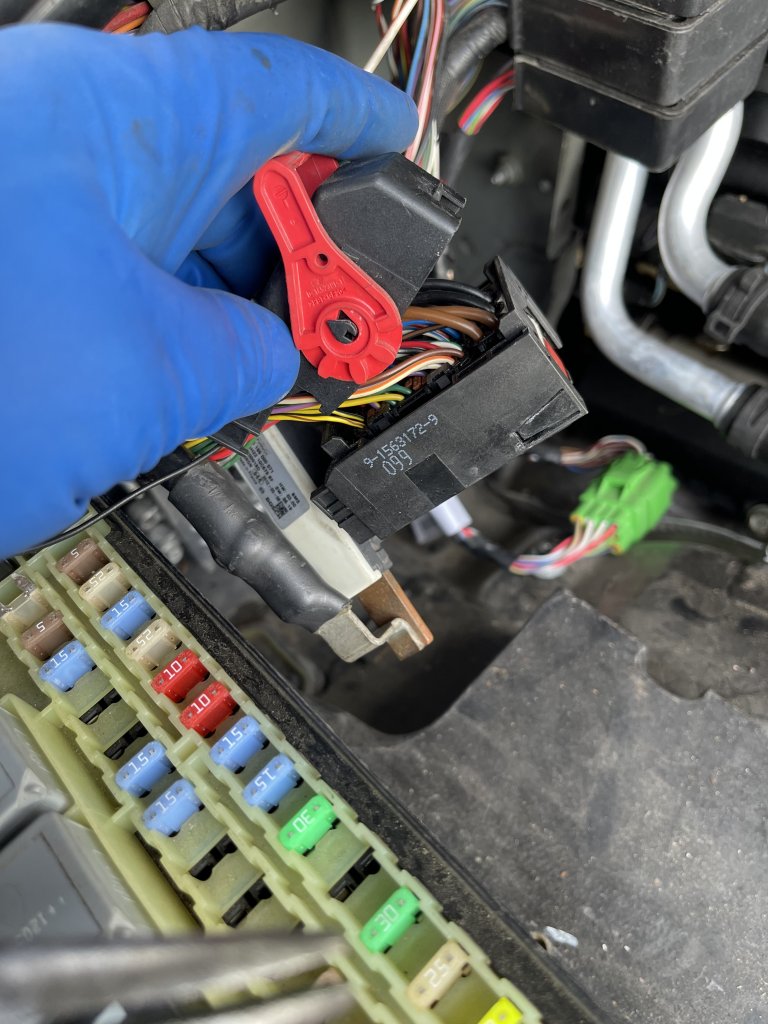

Here's a pic of the retainer in place:
Once the retainer is out and the pin has been removed, you just slide the wire from the other harness in. It should only go in in one way. Make sure it clicks in and you can't pull it back out. Then reinstall the red plastic retainer.
Once the wires are in, you can put the back cover on. The hardest part here is getting the "connector locking sliders" on either side of the connector lined up. Once they're in the right position, which I verified by looking at it to make sure the gaps lined up, you simply hook the one side and rotate down to click the front in.
That covers the PCM. The CJB, is fairly self explanatory, there's a 8mm bolt holding the front, then it just lifts up. the 2 halves are held together by plastic snap clips. Undo the front and the back will slide out. I cut the 2 wire ties holding the wires in place as they went into the CJB just so I could maneuver the box a little better. FYI, it doesn't move much, but you need to be able to flip it to see where to insert your wires.
I'll post a couple more pics in another post....stupid 5 pic forum limit!
