Cracked fan shroud? Engine jumped off mount?!

allegro

Active Member
Joined
Apr 10, 2018
Posts
39
Reaction score
10
Location
Northern California

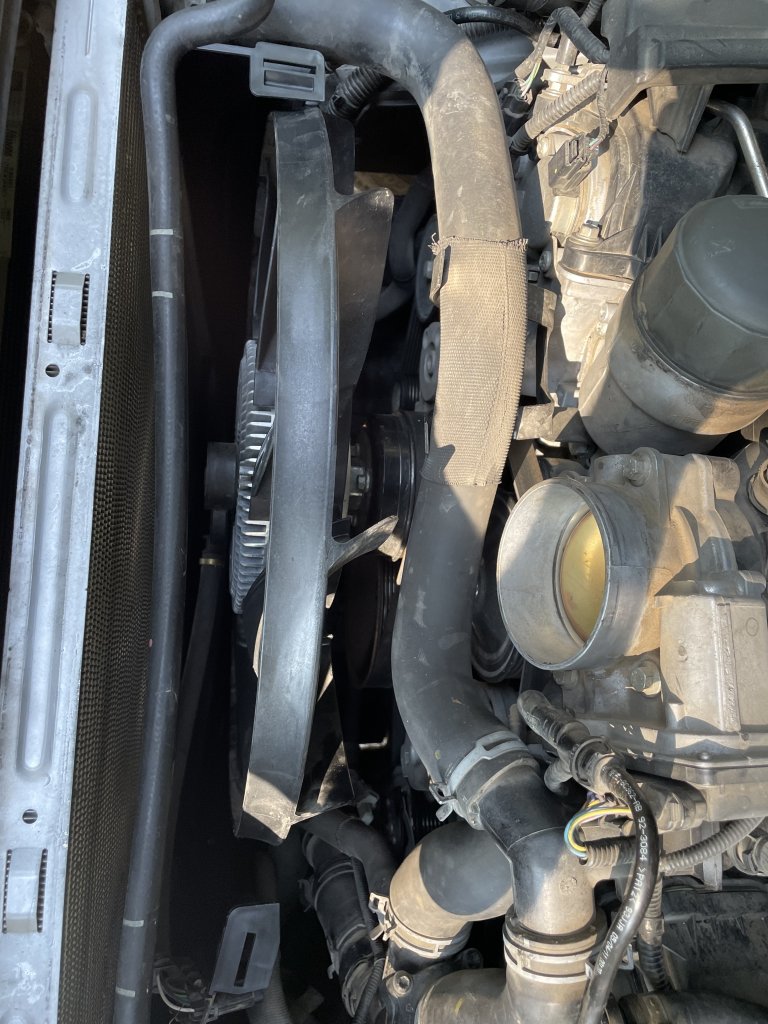

Checking the fit of the new shroud pieces before securing everything… I’m concerned that the passenger side of the lower shroud has only 1/8 inch clearance from the fan. Does this look right? The drivers side has more like 1.5 inches clearance.


Attachments

  • 5F742FFD-53E8-4E11-BBEC-37F980733622.jpeg
    164 KB · Views: 5

allegro

Active Member
Joined
Apr 10, 2018
Posts
39
Reaction score
10
Location
Northern California

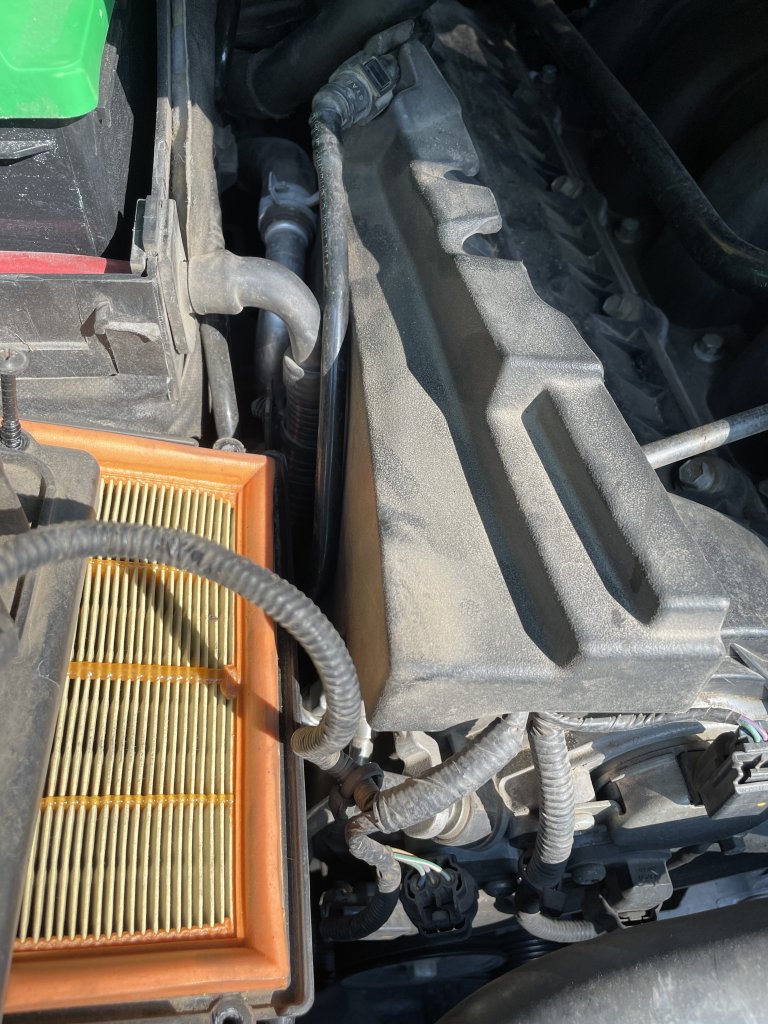

Feel crazy saying this… but looking more closely I swear the engine is shifted over about 1/2 inch toward the passenger side. Granted I am grasping for an explanation of why the shroud and fan don’t seem to
be aligned…

Is there a way to check engine mounts and ensure all is ok? Don’t these clearances on passenger side of engine compartment seem smaller than normal?


Attachments

  • image.jpg
    176.2 KB · Views: 4

Stuart Barnes

Full Access Member
Joined
Oct 27, 2019
Posts
303
Reaction score
177
Location
Los Angeles
Double check the radiator positioning first. It’s easier to eyeball.

And triple check you’ve installed the shroud correctly. I’m sure on mine the clearance between the fan blades and the brush part is less than 1/2”


allegro

Active Member
Joined
Apr 10, 2018
Posts
39
Reaction score
10
Location
Northern California
Double checked radiator position and shroud mounting, and still seems wonky.

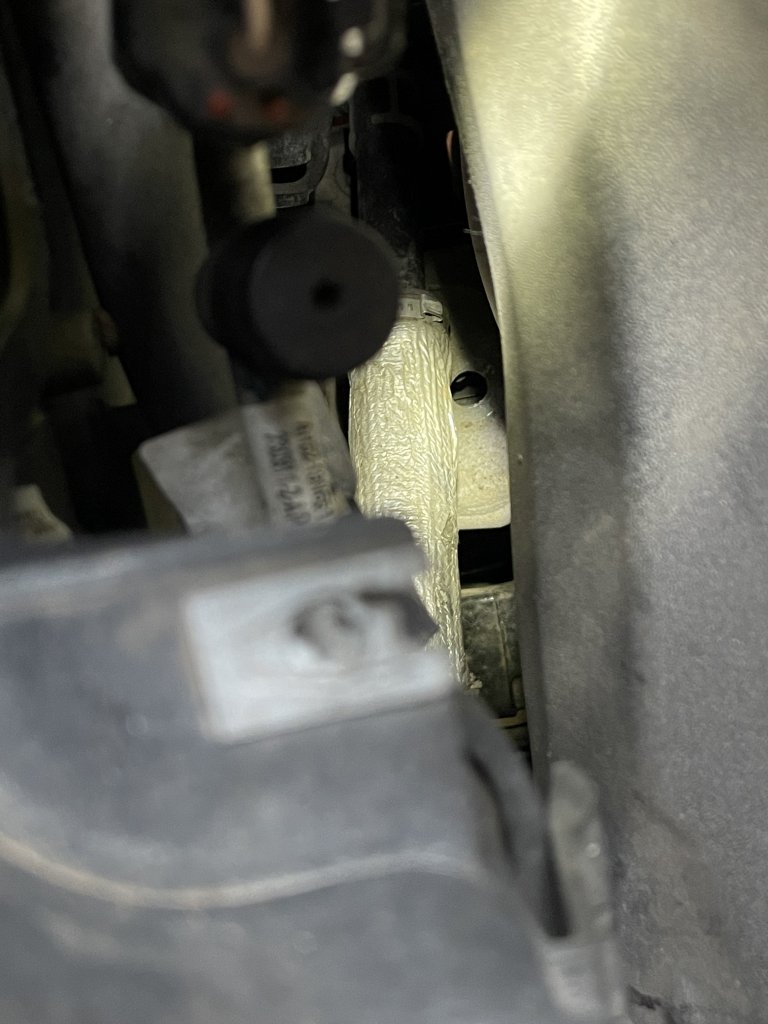

I’m looking up engine mount inspection in the service manual and will check it out to satisfy my curiosity. Peering down in the left/drivers side of the engine compartment, isn’t this where an engine mount bolt should be?

I think perhaps the mounting flange is sitting on top of the mount bolt.. seems just barely visible in this shot:

You must be registered for see images attach


Is there a way to try to gently coax the engine back to the drivers side, if this is what I think it is?


Attachments

  • 5F55D52E-0DAE-489B-8994-3A181F40A087.jpeg
    98.4 KB · Views: 1

allegro

Active Member
Joined
Apr 10, 2018
Posts
39
Reaction score
10
Location
Northern California

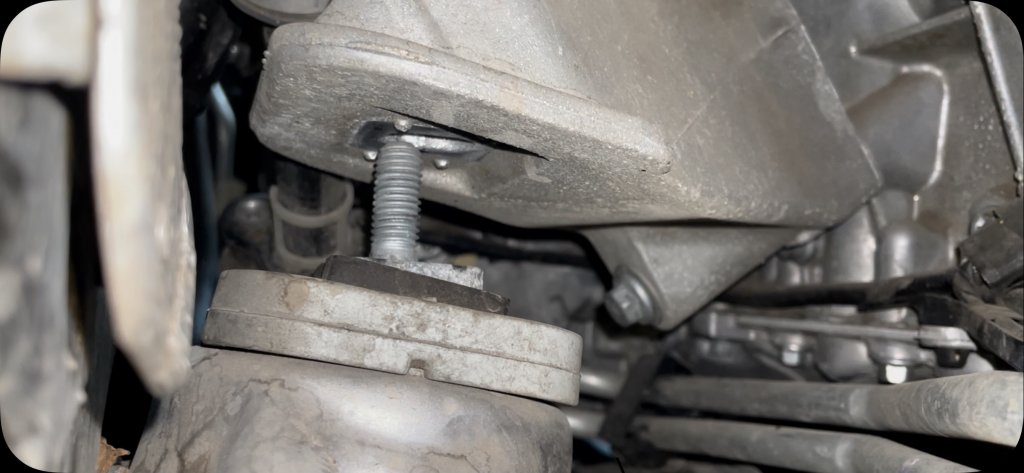

Smoking gun… any bright ideas on how to proceed from here to get the engine seated properly on the mount?

You must be registered for see images attach


Again, this is left/drivers side. My wife’s sudden on/off/on throttle must have jumped the engine off the mount.


Stuart Barnes

Full Access Member
Joined
Oct 27, 2019
Posts
303
Reaction score
177
Location
Los Angeles
Do you have the workshop manual. I’m sure there’s a procedure in there for changing them out. If you don’t pm me and I’ll get you sorted.


allegro

Active Member
Joined
Apr 10, 2018
Posts
39
Reaction score
10
Location
Northern California
Update - Both left and right engine mounts were missing their securing nuts. Who knows how long the engine has been just floating on the mounts waiting for an incident like this throttle on/off/on event to rock the engine off the mounting stud. Perhaps the shop that lifted the engine out a couple years ago failed to torque them properly? In any case, not confidence inspiring... I'm going to go ahead and replace both mounts and use fresh hardware. Parts are on order. A little daunted by the exhaust/cat disassembly required, but we'll cross that bridge when the new parts arrive.

In the meantime, I lifted up the engine up off the engine mount stud and was able to reposition it so that it lined up properly with with mounting bracket attached to the engine. I secured the engine on both sides with temporary M12 flange nuts and some blue thread locker. Fan now lines up perfectly with the new shroud.

On first fire up after putting everything back together, there's no CEL but my GAP tool is showing two codes:

P0526-17 (Fan speed sensor circuit - General electrical failure - circuit voltage above threshold)
Workshop manual says: Viscous fan circuit, short circuit to ground, short circuit to power, open circuit
My next step: double check fan harness connection (fan is operating when engine on, so not sure about this)

P061A-64 (Internal control module torque performance - Algorithm based failure - signal plausibility failure)
Workshop manual says: Intake system air leak; Manifold air flow sensor(s) failure
My next step: double check intake connections from reassembly

Also, while I had the sump guard / skid plate off I checked the various drain plugs... found the front diff drain plug to be loose to the touch! Disaster averted. Torqued up now and awaiting the proper fluid for a drain + fill.
