ok i think i figured out the fuel thing opnions

[iggywanna]

ok well i removed the carpet from the rear and checked the voltage on the wires none of them registered more than 1 volt so i am assuming it is the relay.
this is a 96 D1 does anyone have a pic of where it is located under the hood? I would like to pull it and test it seperatly and get a new onw... its cheaper than a new fuel pump.
Thanks
Erich



[joey]

Question, did you check voltage as soon as the key was turned, or did you wait a few? the relay is designed to turn off the pump if the engine is not running....

Just a thought



[iggywanna]

i check it as long as it took me to walk to the back. Good point i'll check it again tonight



[iggywanna]

checked again while someone was turning on and off the key no volts. So where is this relay?



[joey]

Fuel pump relay
The fuel pump relay is fed from the ignition relay and controlled by the engine management ECM. The relay is activated in ignition key position 2 to prime the fuel system for a period of time controlled by the ECM. Failure of this relay will result in no fuel pressure.

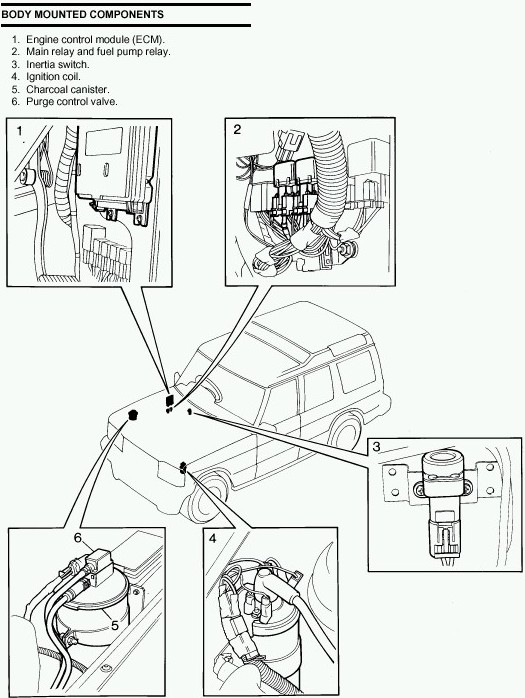

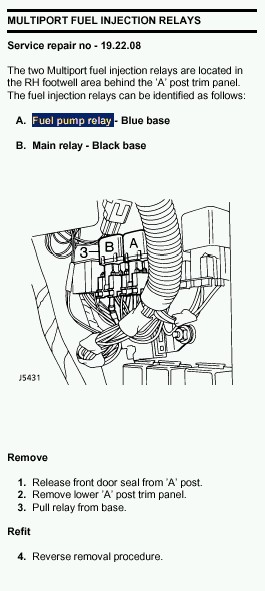

Here are the two locations the relay can be located.



[iggywanna]

joey your the man i spoke to someone at one of the big name riover parts places and they said it was a multi- function relay it was like 80 talked to rovers north and they gave me the correct realy at 18 bucks.. you the man



[iggywanna]

Hey Joey,
I got the relay removed the kick panel but i dont see the relay you show in the pic.There are the three in the bottom row and there is one up above them.Is this the relay?
It's a 96 disco 1
Thanks
Erich



[joey]

Sorr for the delay in the post. for some reason I wasn't able to access this site for the last three days while travelling....

I would call you land rover service center and just ask.... not sure which one it is.... I pulled that info out of the Rave CD....

Sorry I can't be of more help.
